Torque Specifications

TORQUE SPECIFICATIONS

Application	Ft. Lbs. (N.m)
Booster Nut	110 (149)
Booster-To-Cowl Nut	20 (27)
Housing-To-Cover Bolts	22 (30)
Master Cylinder-To-Booster Nut	20 (27)
Power Steering-To-Booster Line	25 (34)

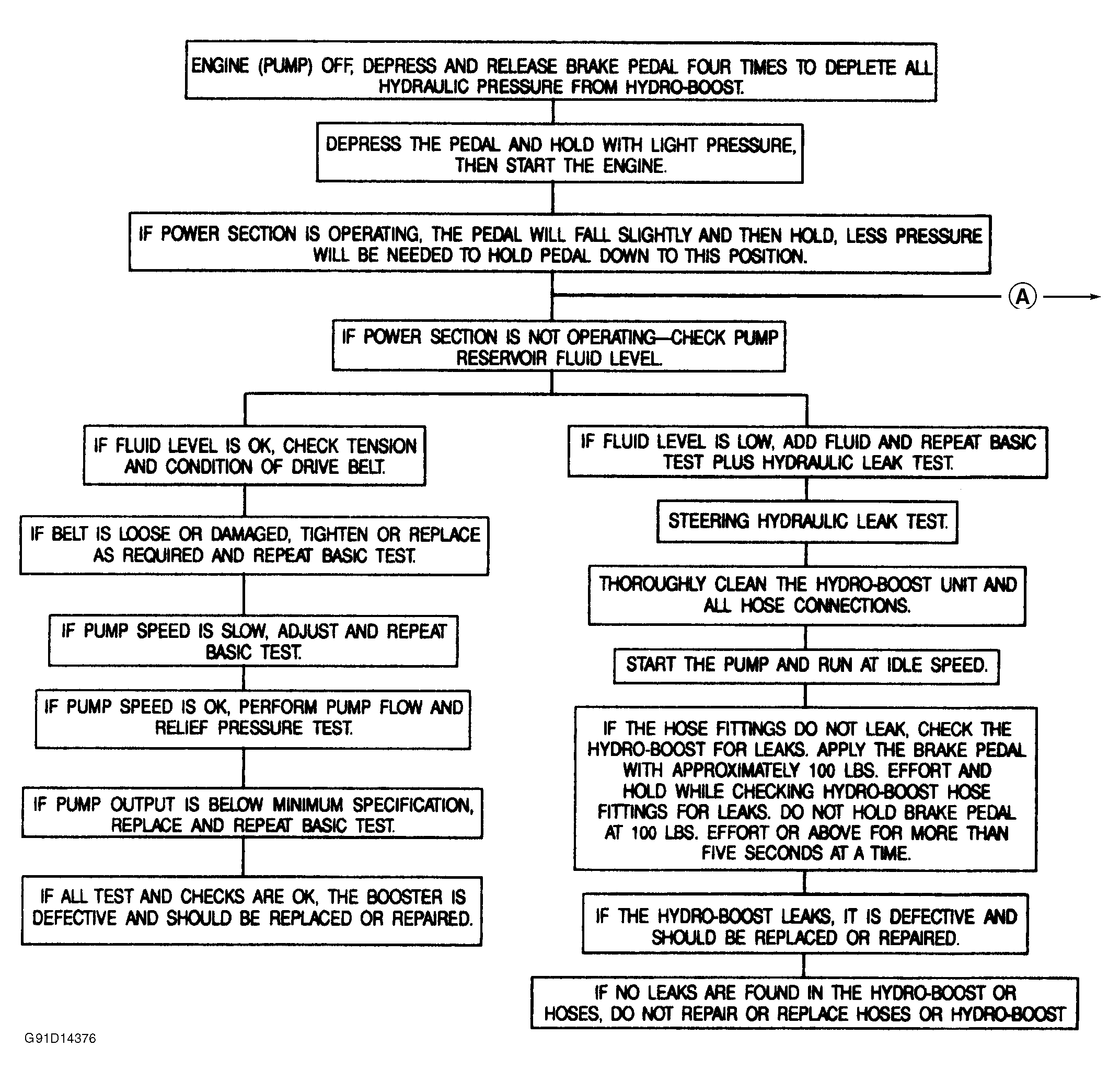

Fig 1: Bendix Hydro-Boost System Trouble Shooting Chart

Courtesy of GENERAL MOTORS CORP.

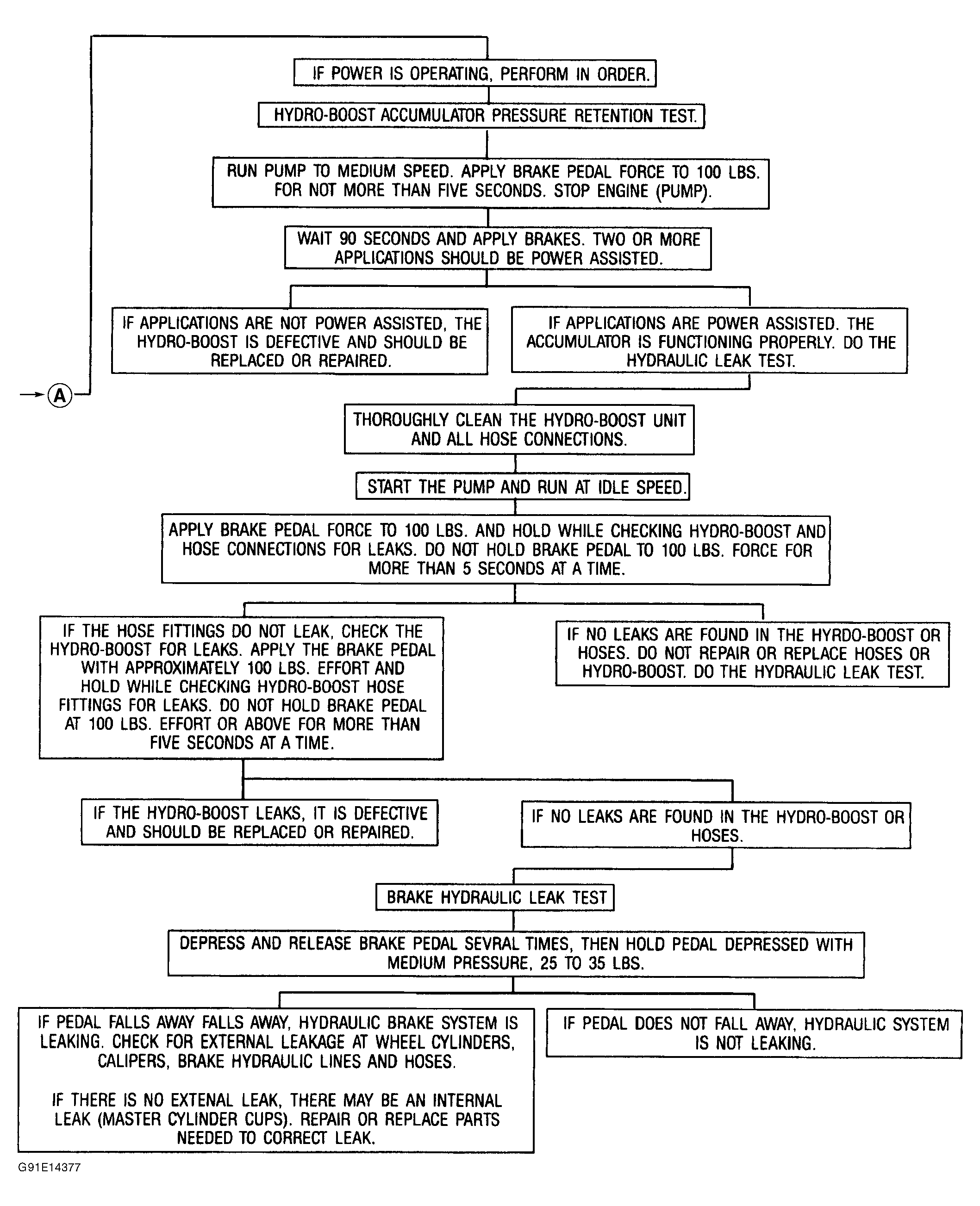

Fig 2: Bendix Hydro-Boost System Trouble Shooting Charts

Courtesy of GENERAL MOTORS CORP.

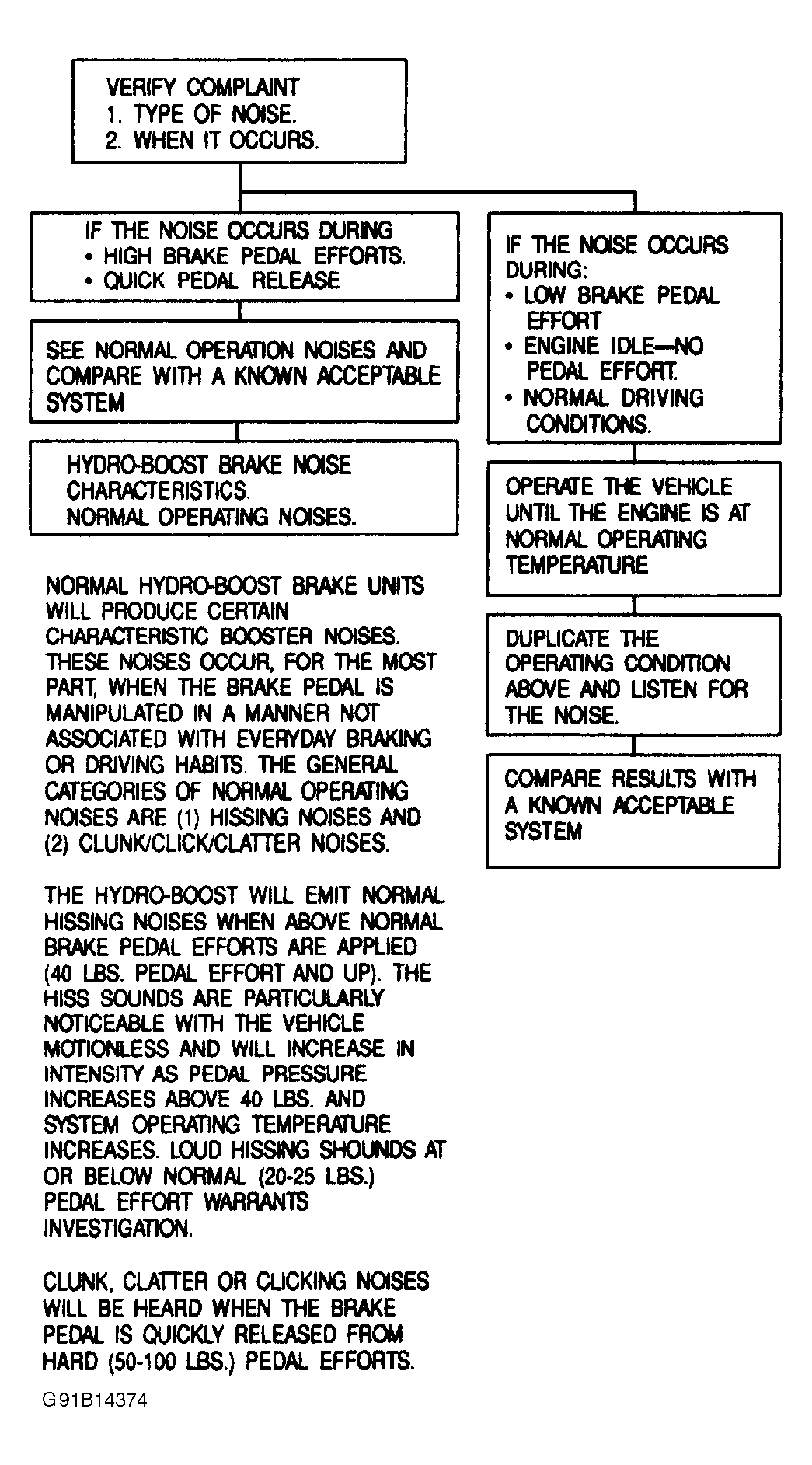

Fig 3: Bendix Hydro-Boost System Trouble Shooting Charts

Courtesy of GENERAL MOTORS CORP.

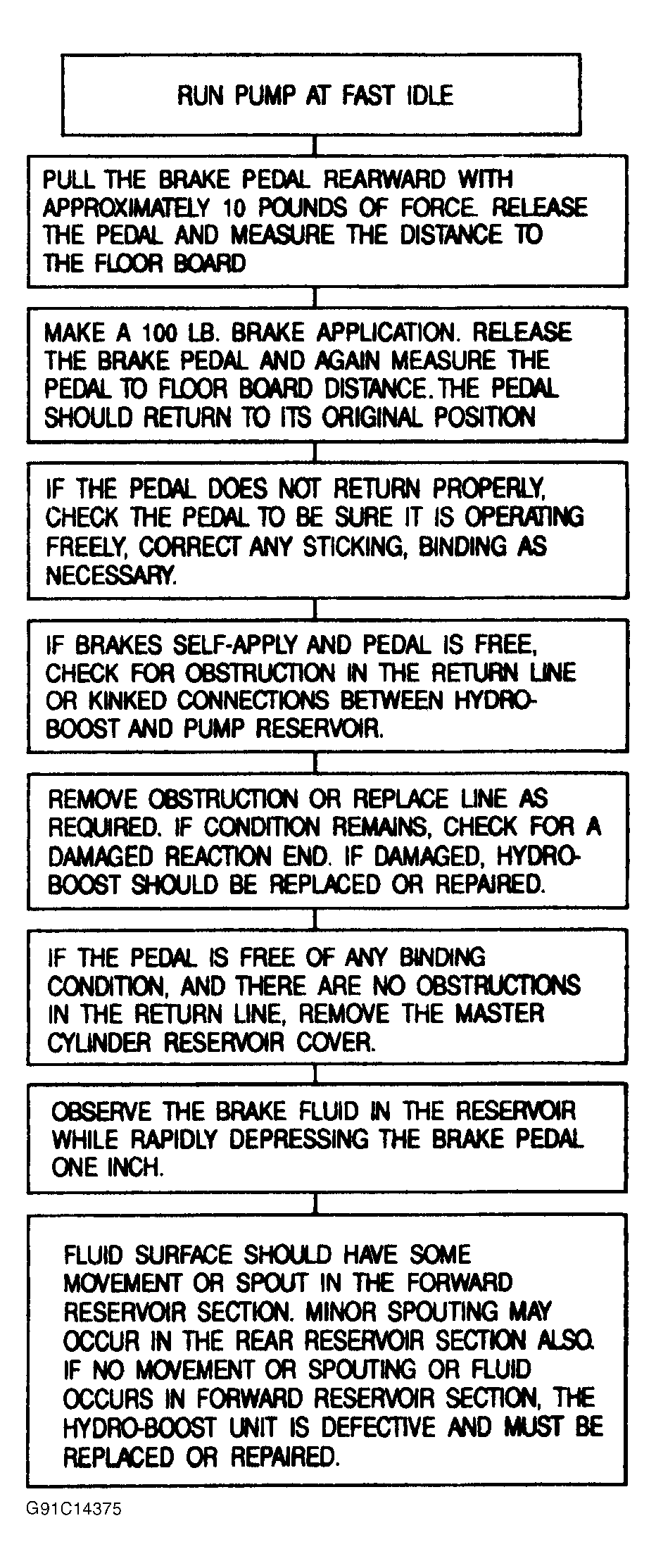

Fig 4: Bendix Hydro-Boost System Trouble Shooting Charts

Courtesy of GENERAL MOTORS CORP.
