Home
>>
Chevrolet
>>
1992
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Without Pulse
>>
Chart 9 No High Mode, or Cycles In & Out of Park In High
Chart 9 No High Mode, or Cycles In & Out of Park In High

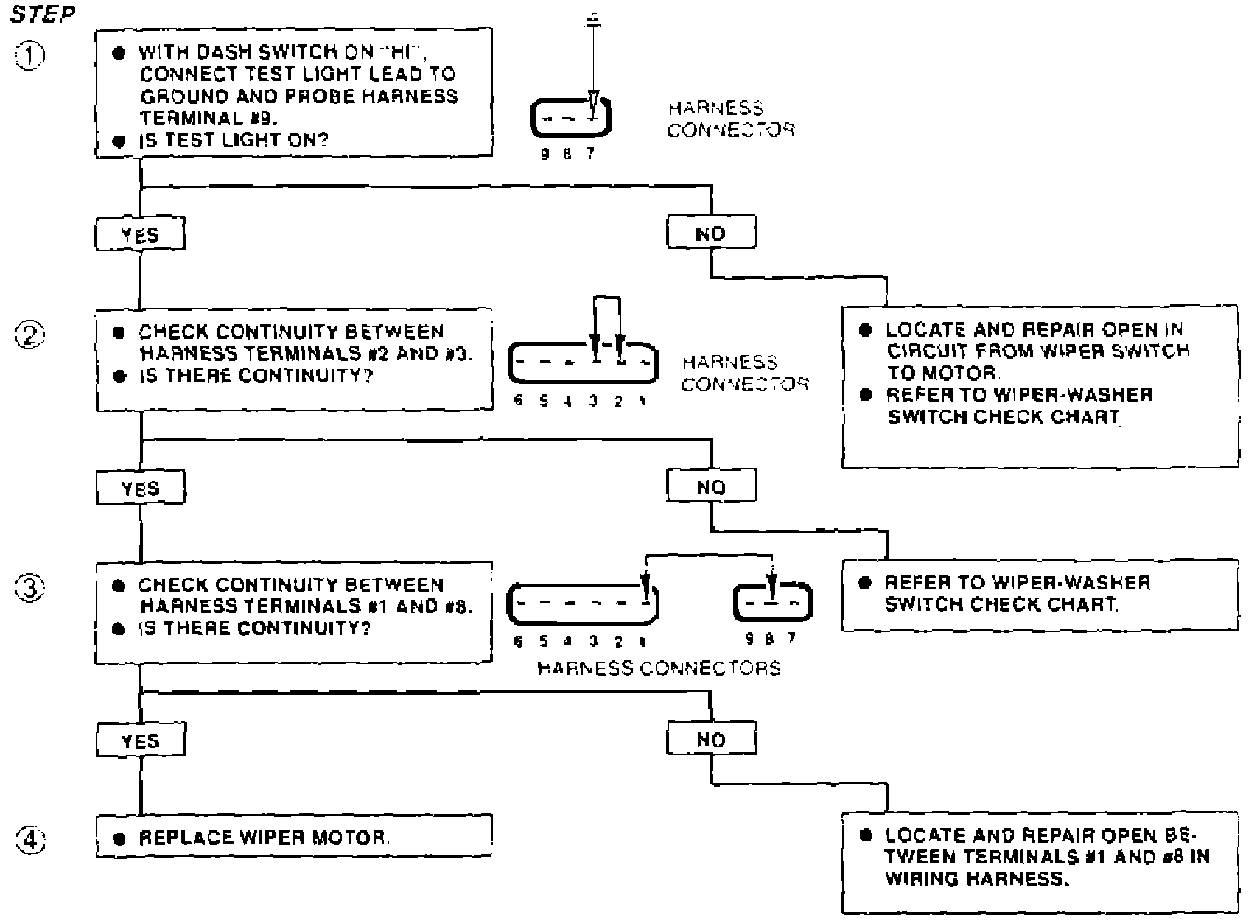

Fig. 20 Chart 9 - No "High" Mode, Or Blades Cycle In & Out Of Park With Switch In "High".:
