Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Without Pulse >> Chart 5 Wipers Will Not Park

Chart 5 Wipers Will Not Park

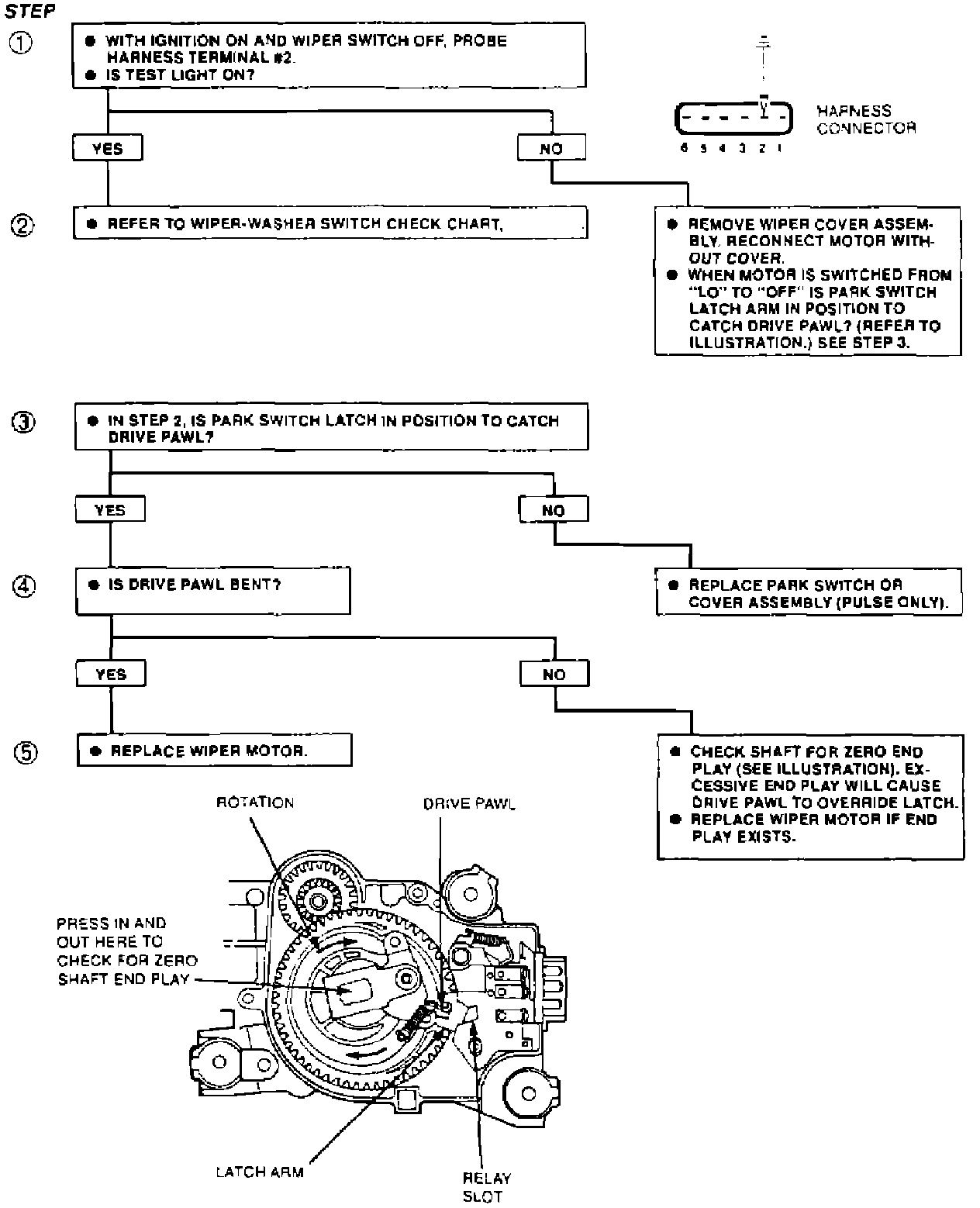

Fig. 15 Chart 5 - Wiper Will Not Park:
