Chart 4 Wipers Run Intermittently In Low/High Speed

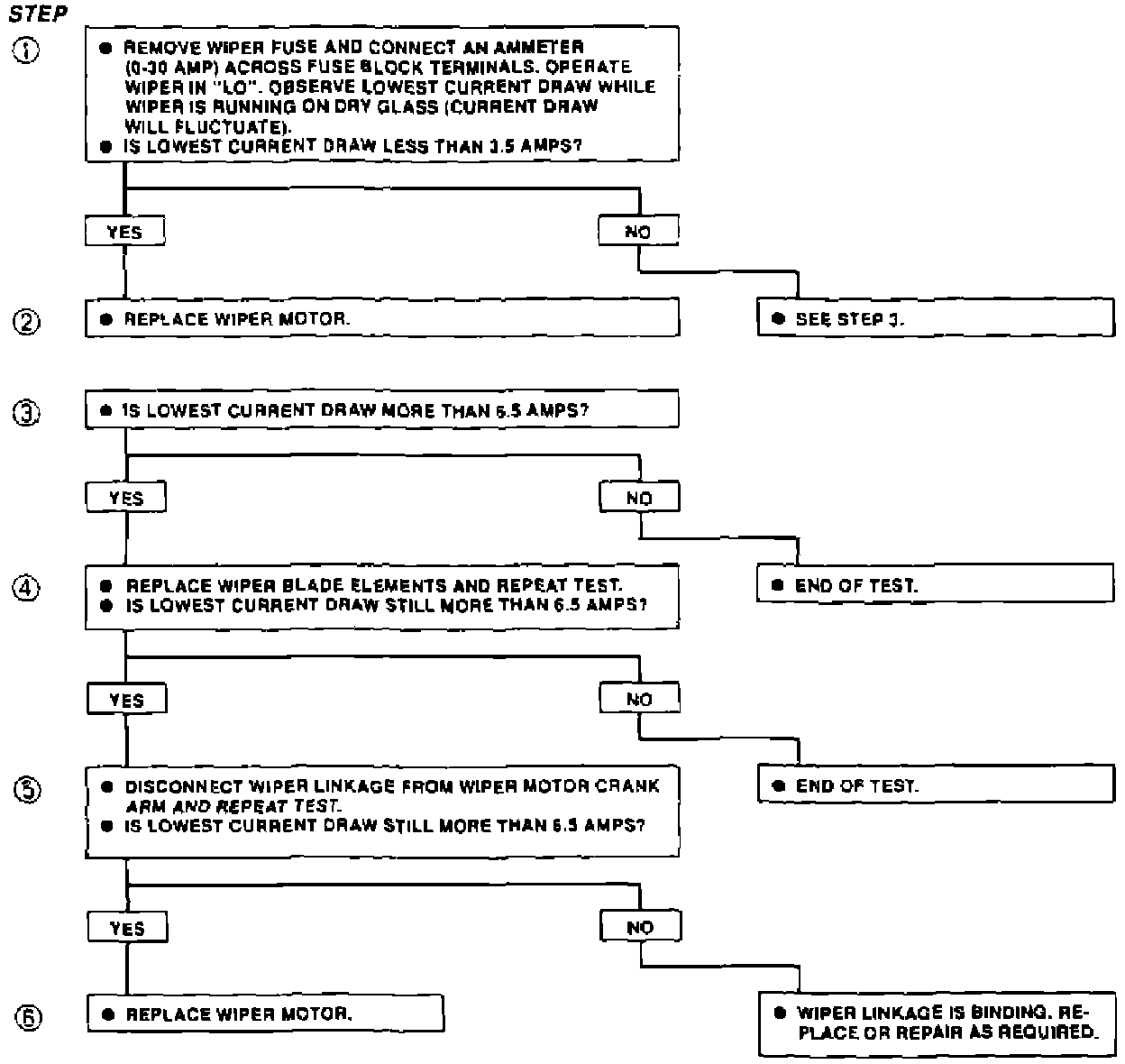

Fig. 14 Chart 4 - Wiper Operates Intermittently:
