Chart 3 Wiper Motor Inoperative
Chart 3 Wiper Motor Inoperative

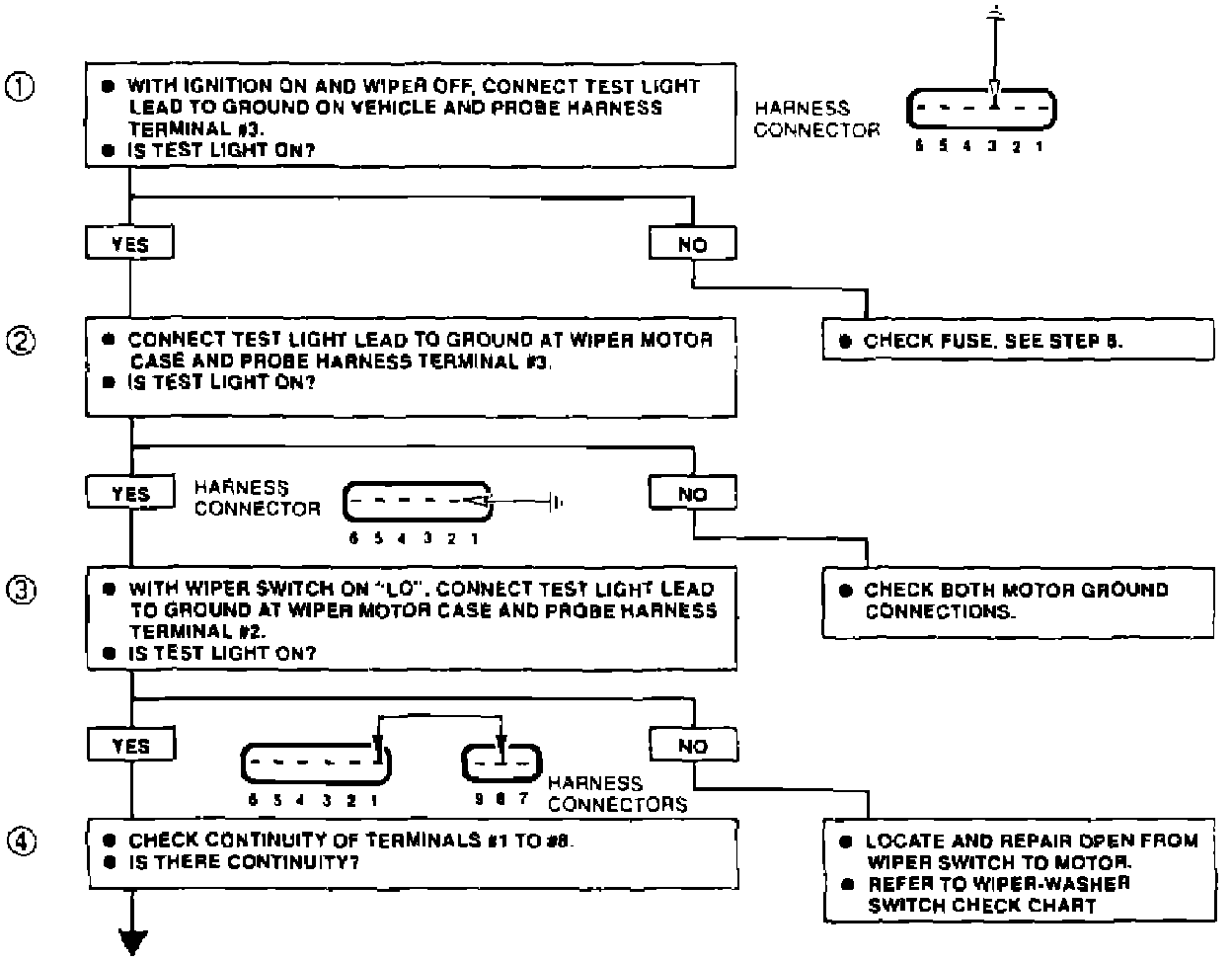

Fig. 13 Chart 3 - Wiper Motor Inoperative (Part 1 Of 2):

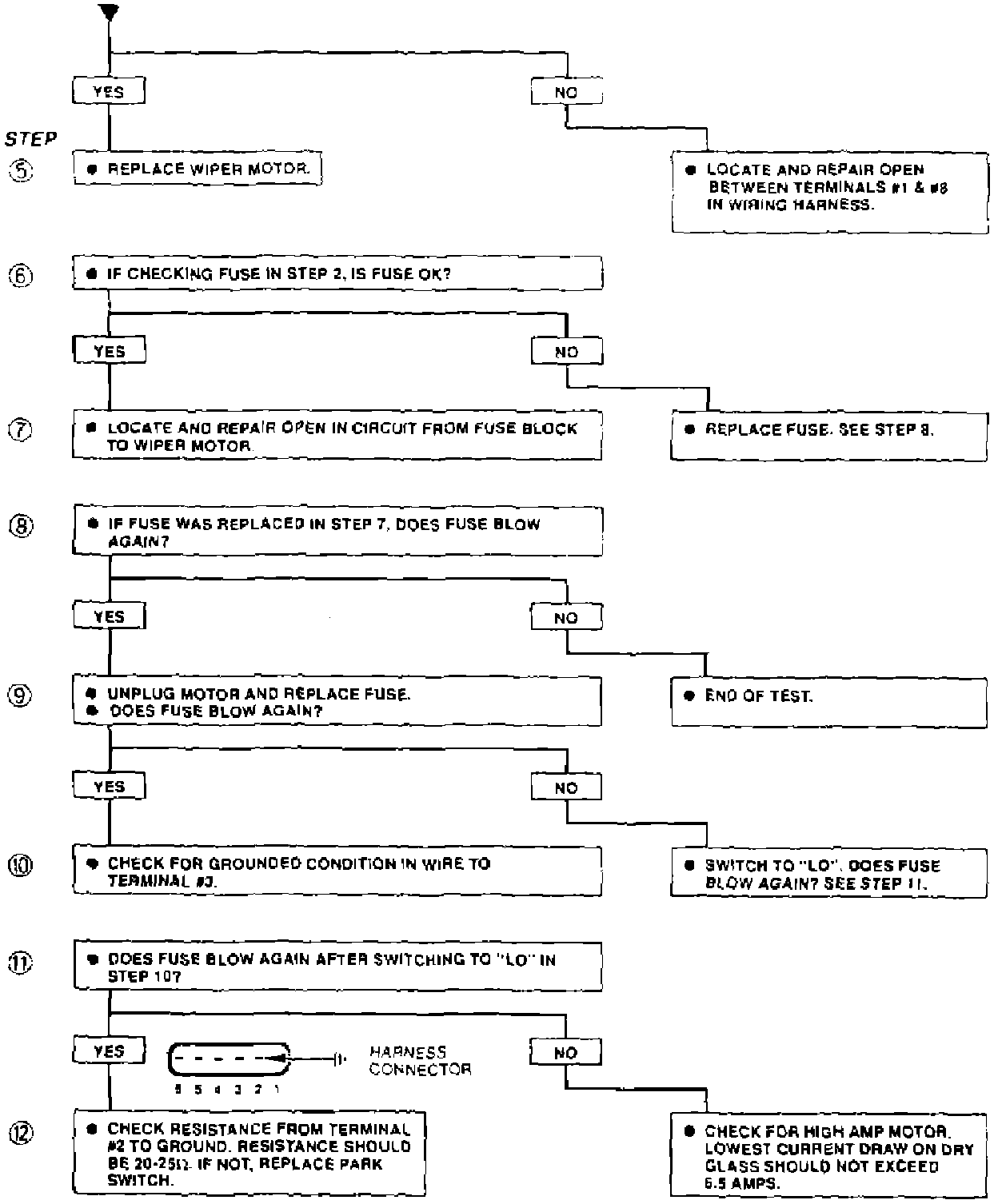

Fig. 13 Chart 3 - Wiper Motor Inoperative (Part 2 Of 2):
