Chart 1 Washer Pump Inoperative (Wiper Motor Operates)

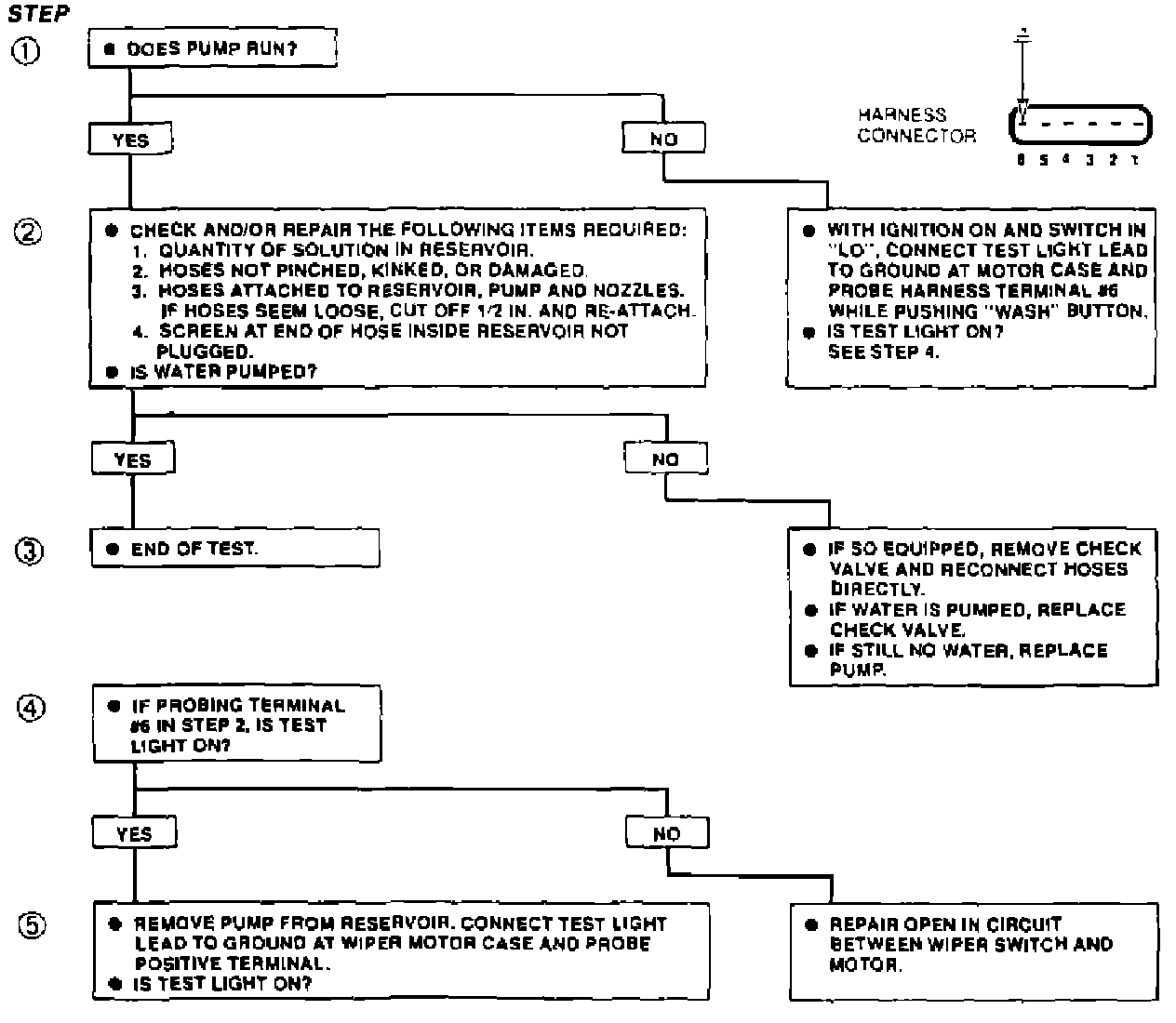

Fig. 11 Chart 1 - Washer Pump Inoperative-wiper Motor Works:
