Outer Constant Velocity Joint & Seal

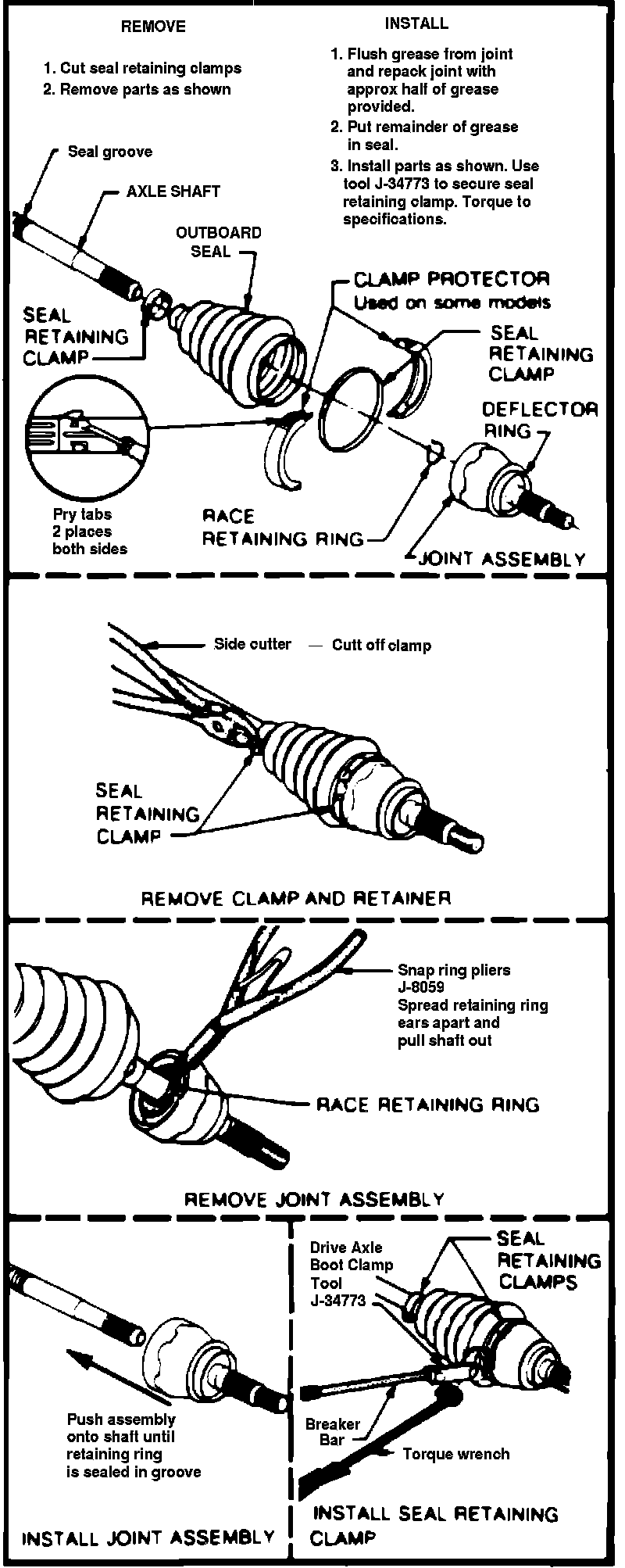

Fig. 23 Outer Constant Velocity Joint Seal Removal & Installation:

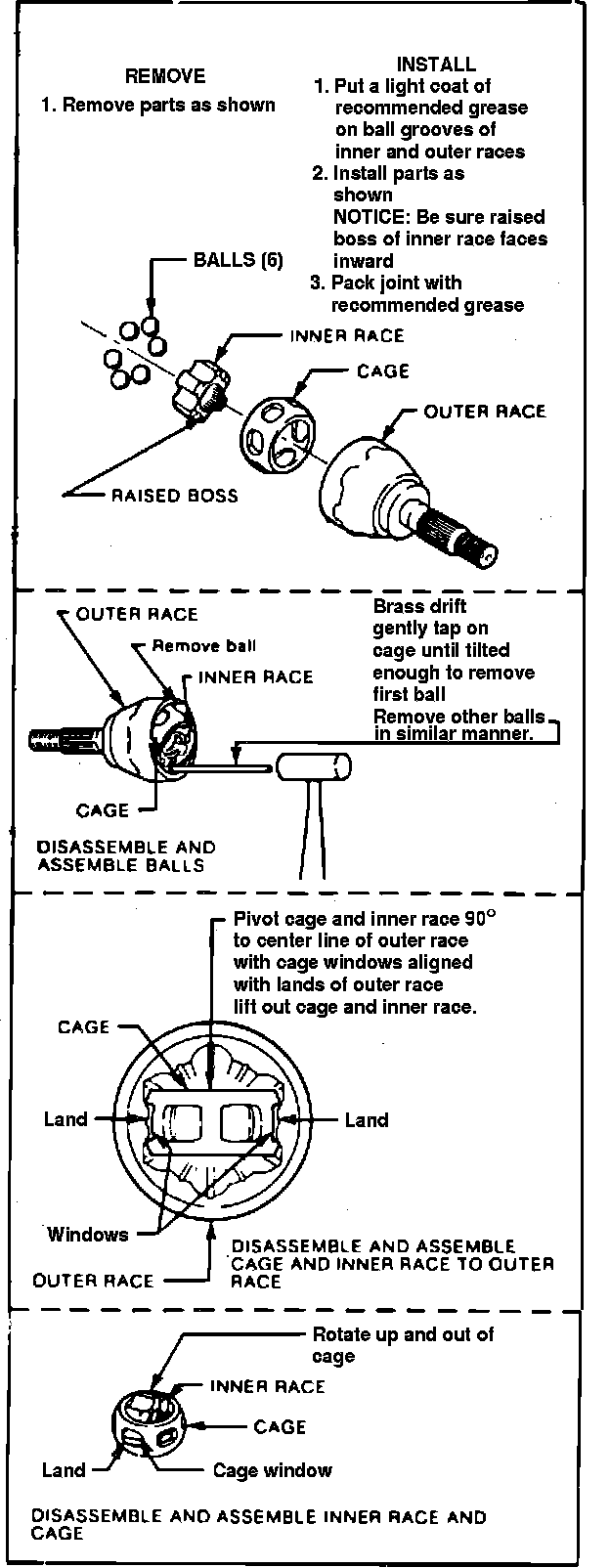

Fig. 24 Outer Constant Velocity Joint Disassembly & Assembly:






For removal and installation procedures refer to Figs. 23 and 24.
