Constant Velocity Joint Boot: Service and Repair

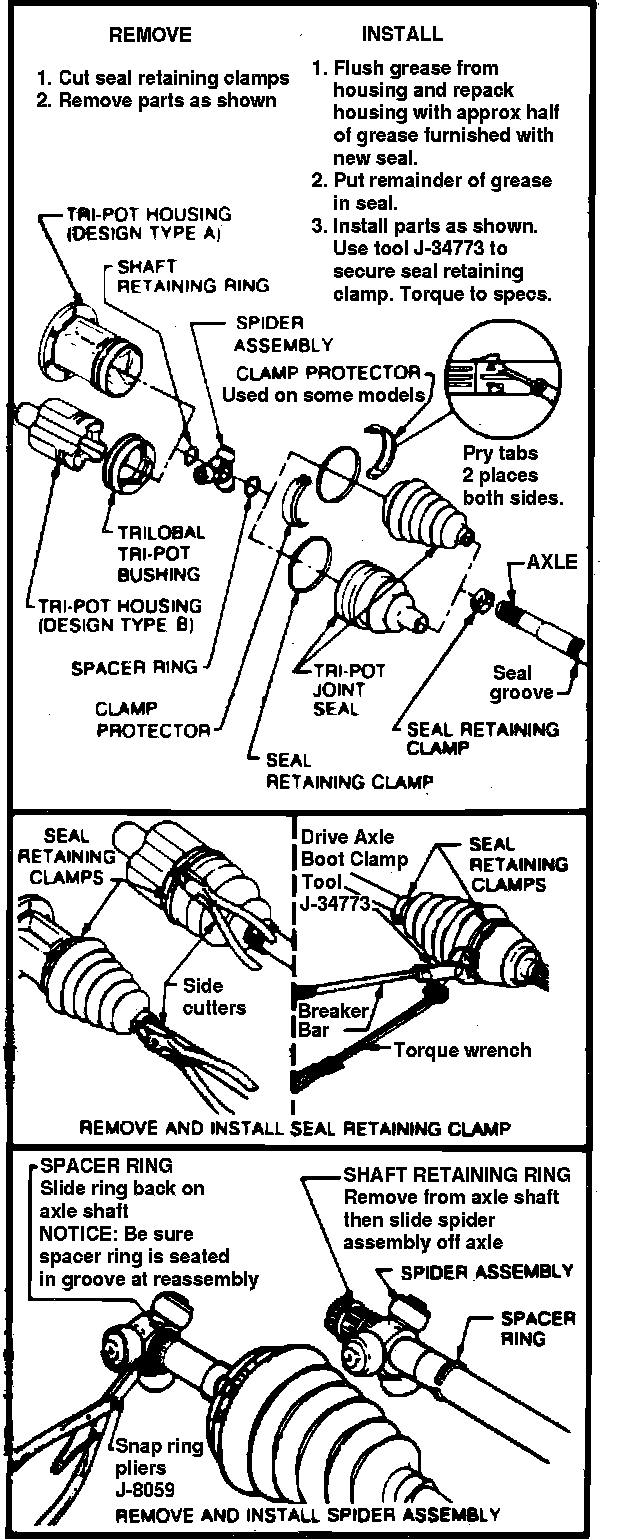

Fig. 25 Inner Tri-pot Seal Removal & Installation. Models Less Bearing Blocks:

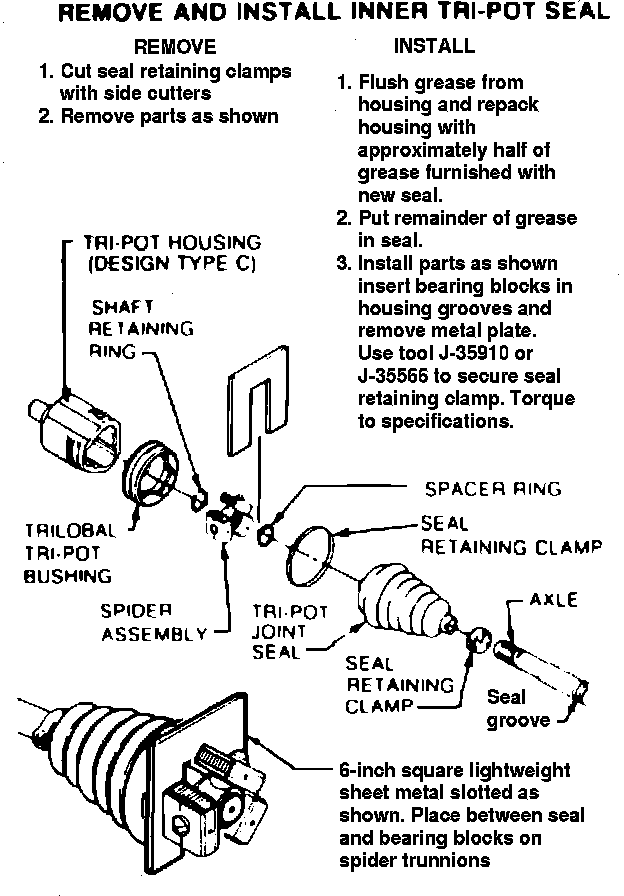

Fig. 26 Inner Tri-pot Seal Removal & Installation (Part 1 Of 2). Models w/Bearing Blocks:

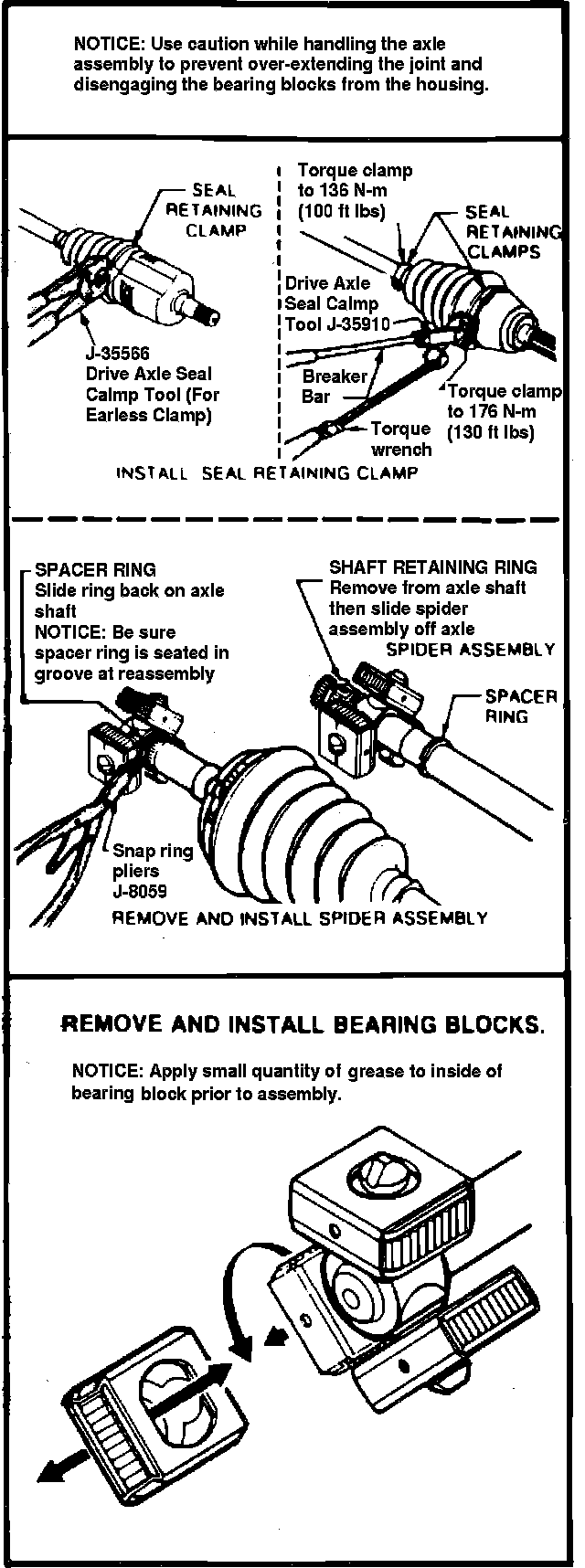

Fig. 26 Inner Tri-pot Seal Removal & Installation (Part 2 Of 2). Models w/Bearing Blocks:






For removal and installation procedures, refer to Figs. 25 and 26.
