Clutch Slave Cylinder: Description and Operation

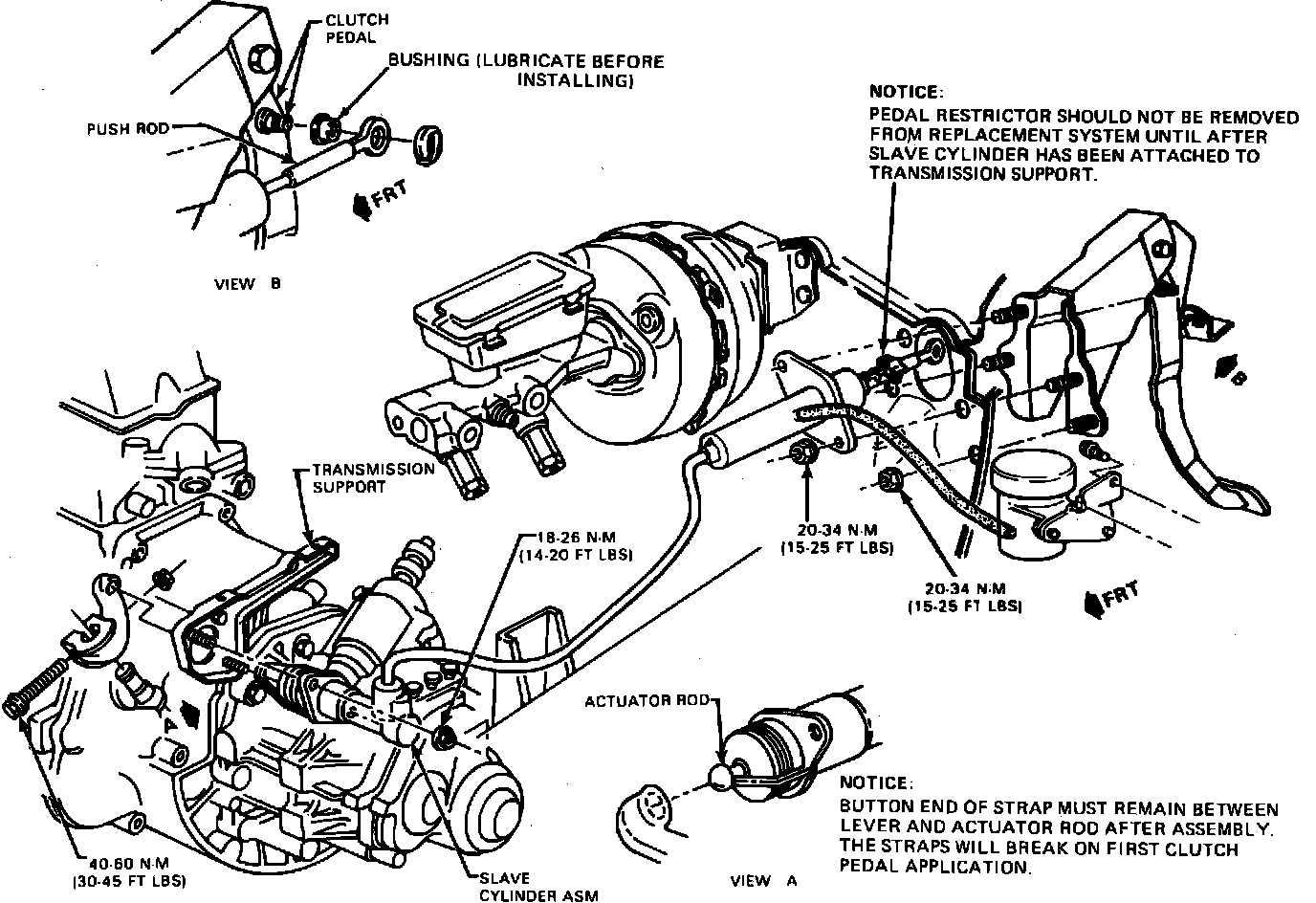

Fig. 1 Hydraulic Clutch Assembly:

On these models, a hydraulic clutch system is used, Fig. 1. The system consists of a dash mounted master cylinder with integral reservoir, a transmission mounted slave cylinder and high pressure tubing to connect the two components.
The hydraulic clutch system provides automatic clutch adjustment, therefore, there is no provision for adjustment.
