Rear Suspension

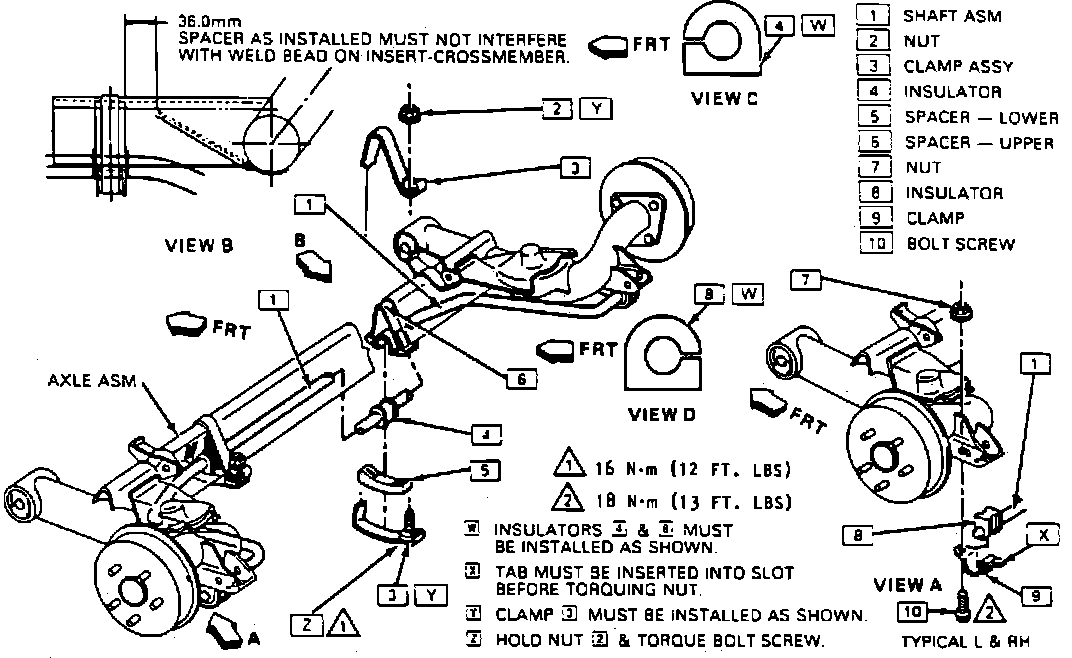

Fig. 6 Stabilizer Assembly. Beretta:

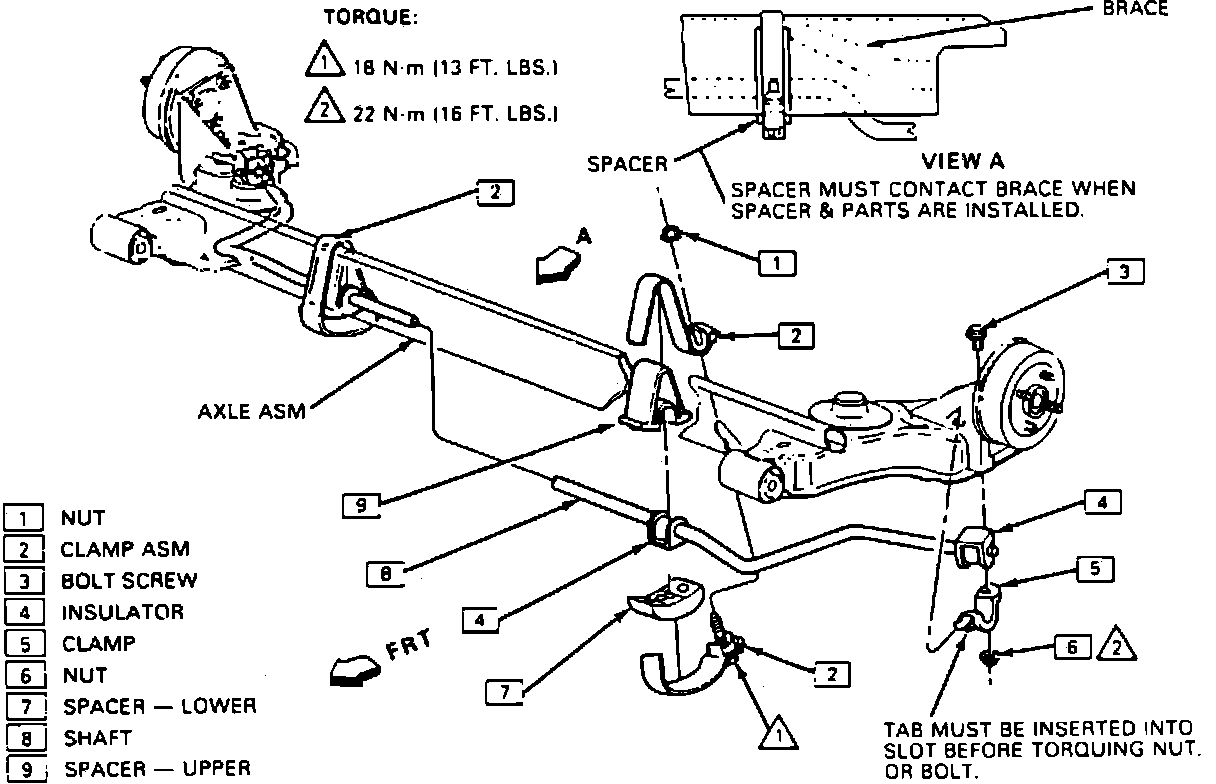

Fig. 7 Stabilizer Assembly. Corsica:

1. Raise vehicle on hoist and support body with jack stands.
2. Remove nuts and bolts at both the axle and control arm attachments and remove bracket, insulator and stabilizer shaft, Figs. 6 and 7.
3. Reverse procedure to install.
