Symptom Related Diagnostic Procedures

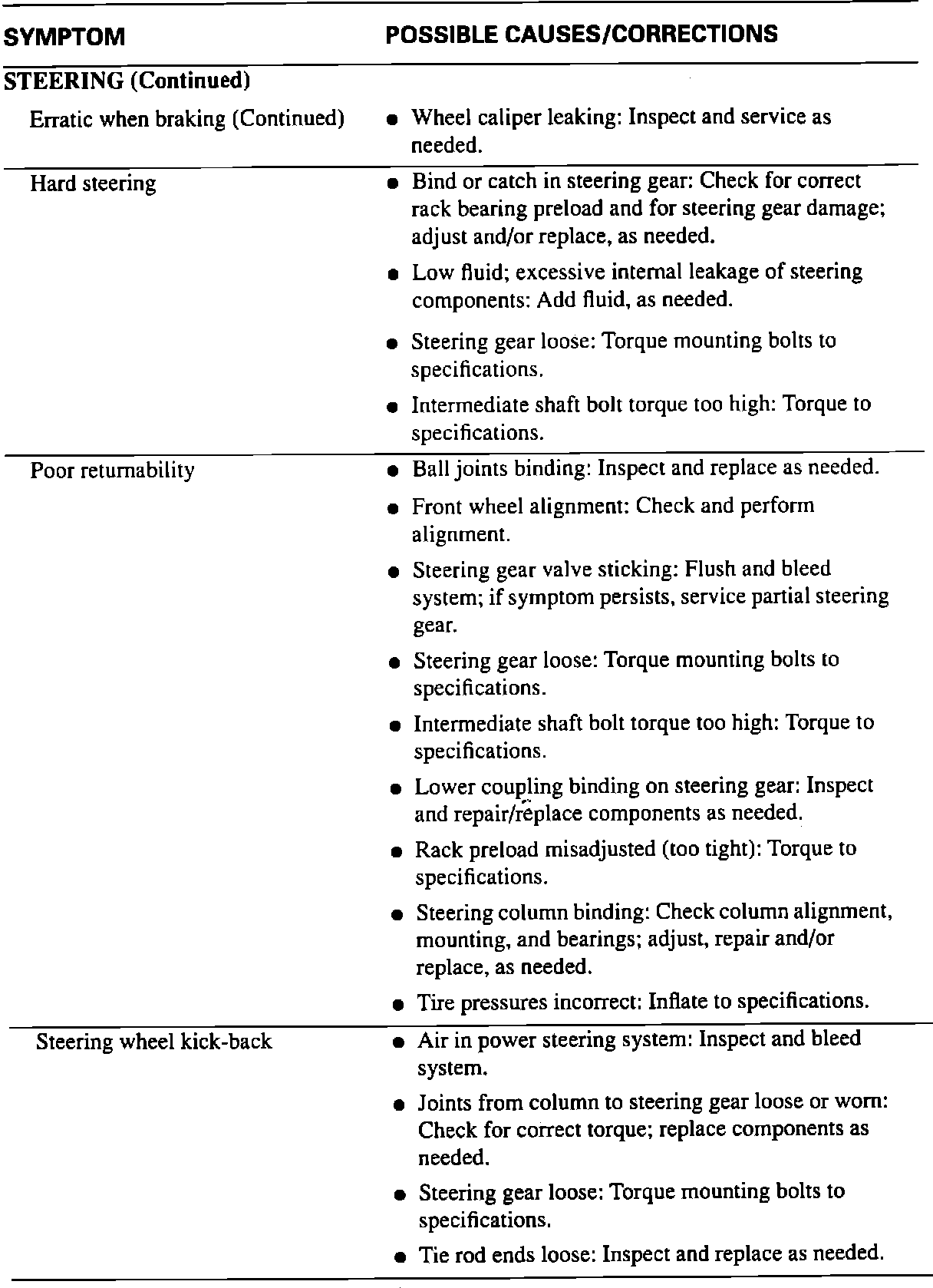

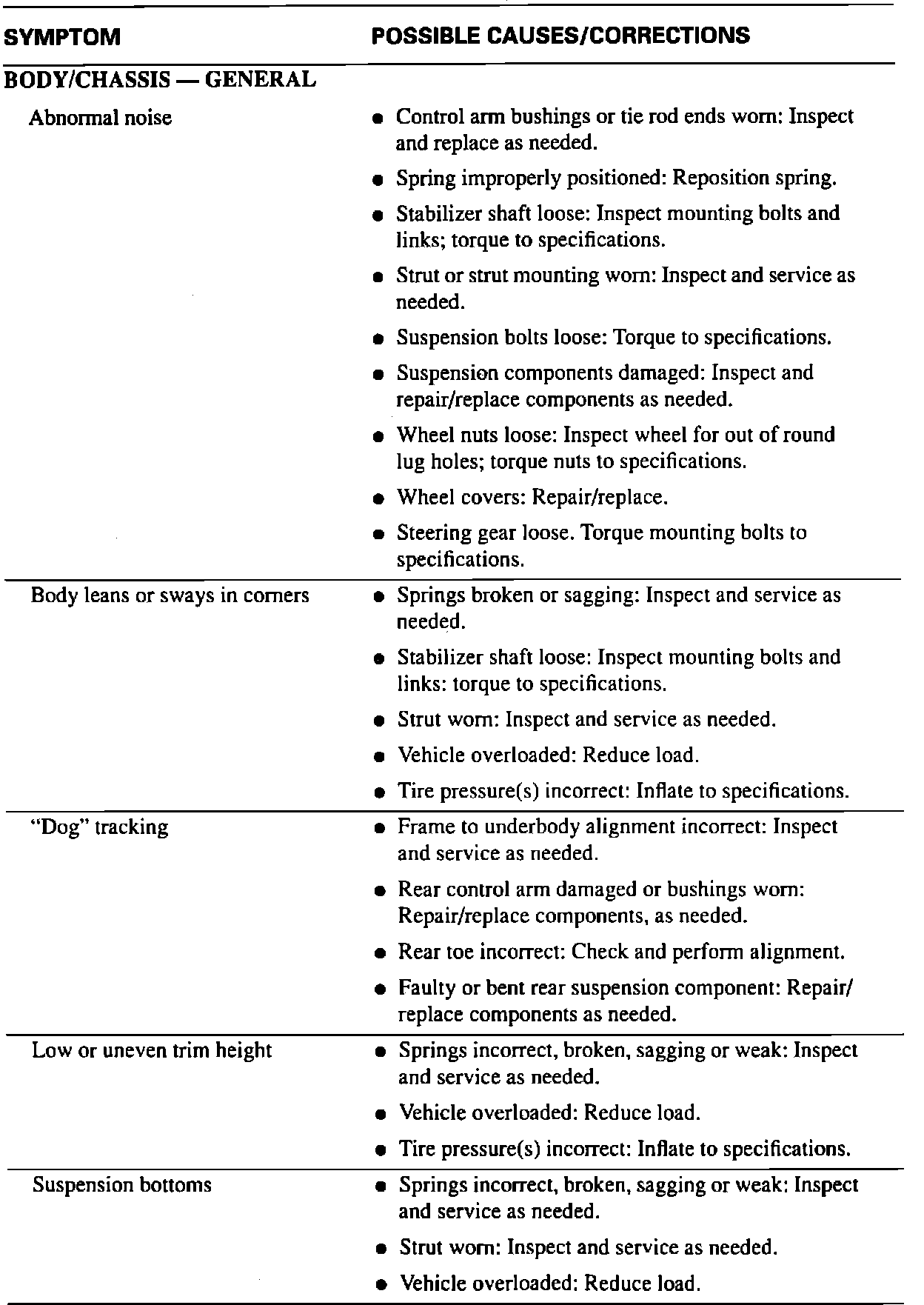

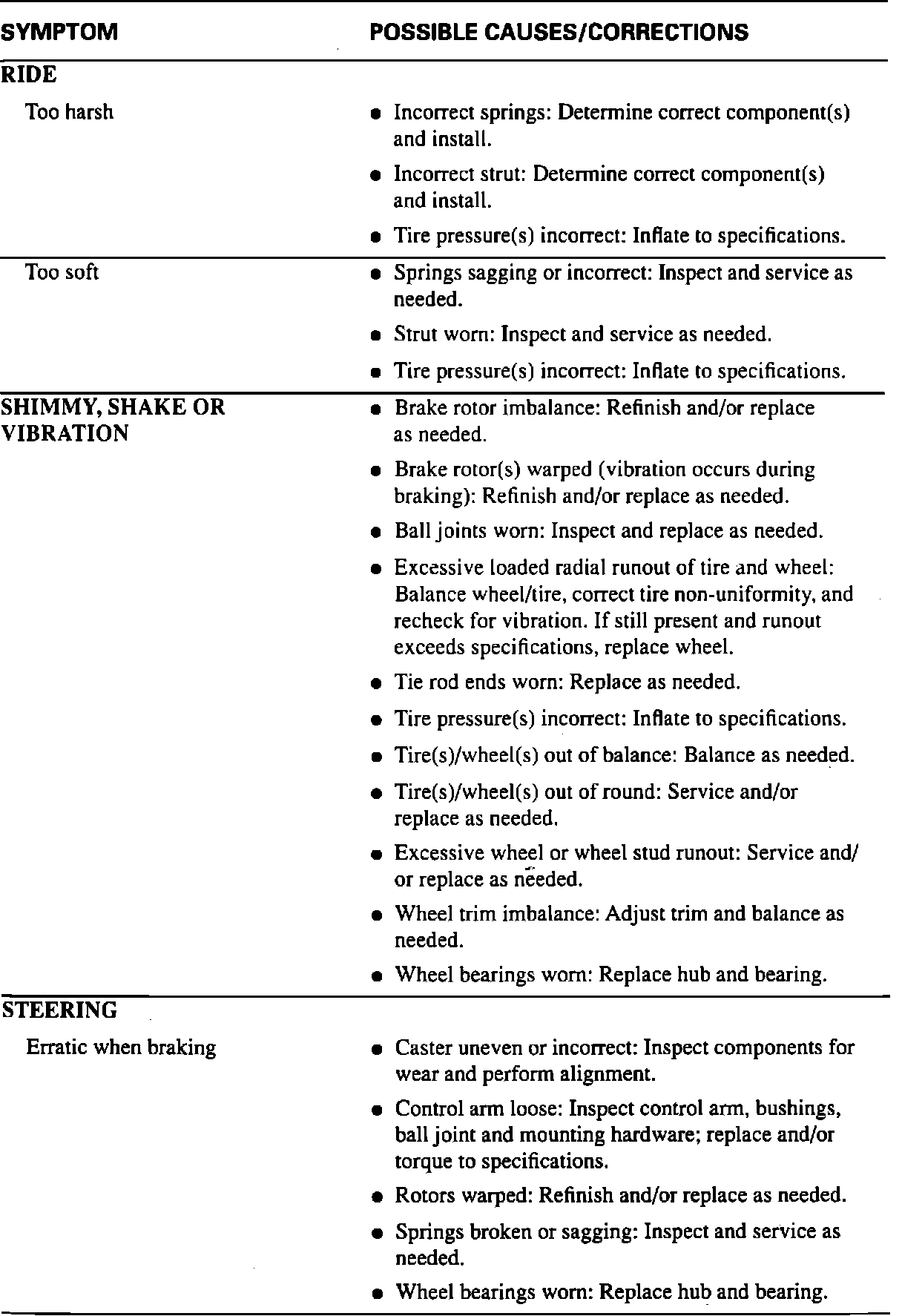

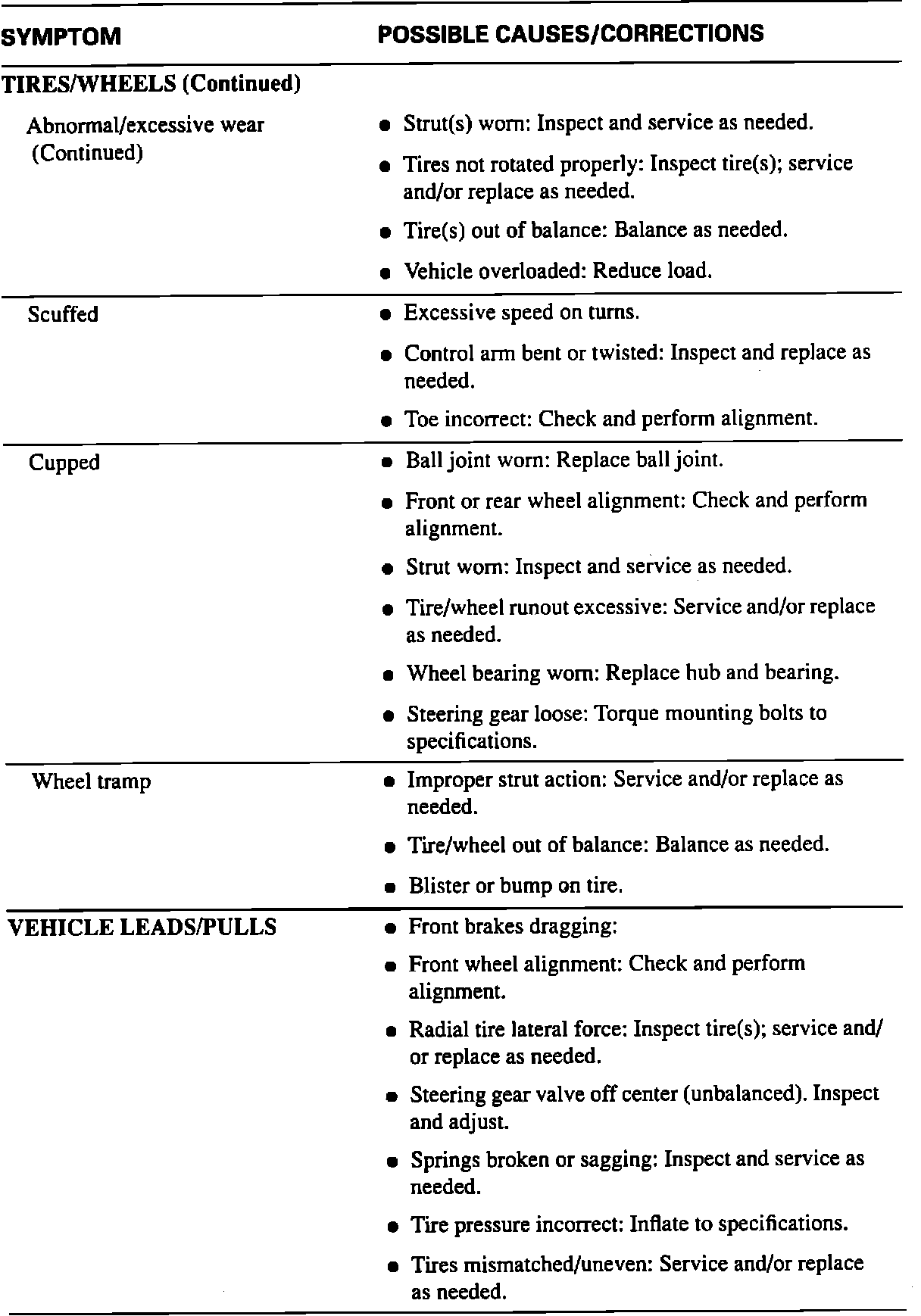

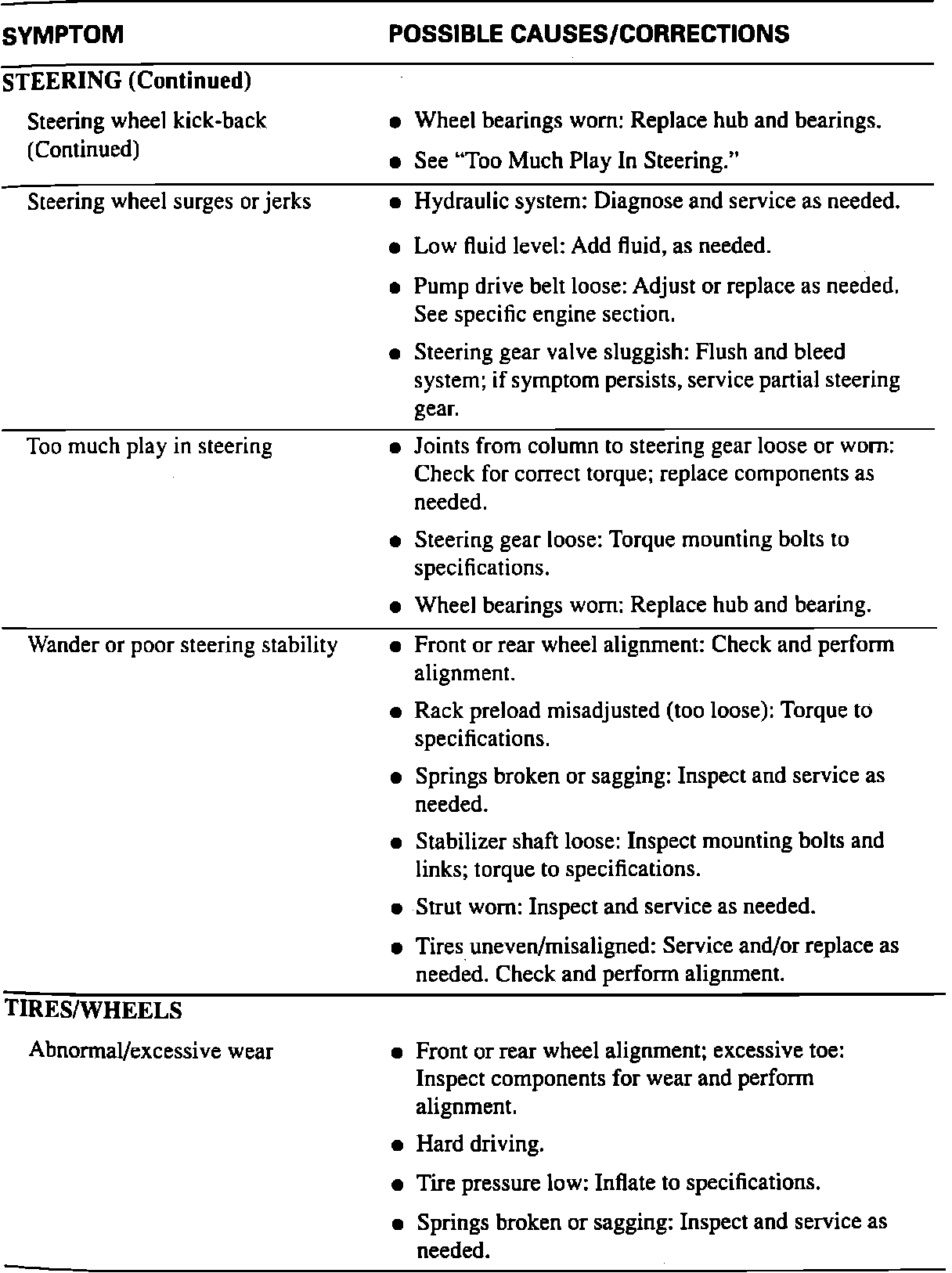

Front Suspension, Steering & Wheel Alignment (Part 1 of 5):



Front Suspension, Steering & Wheel Alignment (Part 2 of 5):



Front Suspension, Steering & Wheel Alignment (Part 3 of 5):



Front Suspension, Steering & Wheel Alignment (4 Of 5):



Front Suspension, Steering & Wheel Alignment ( 5 Of 5):
