TC Series Pump

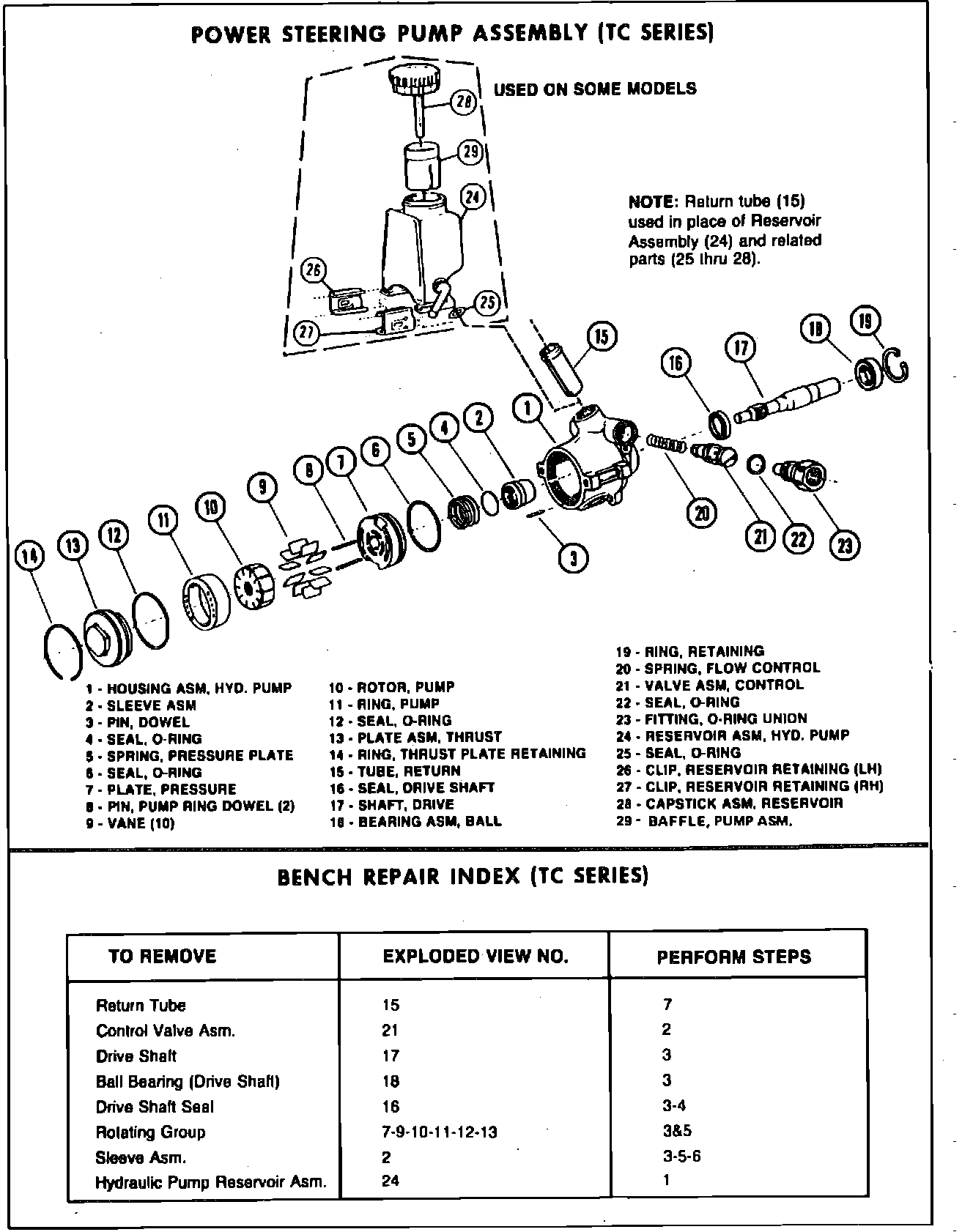

Fig. 10 Power Steering Pump Assembly Overhaul (Part 1 Of 4). TC Series:

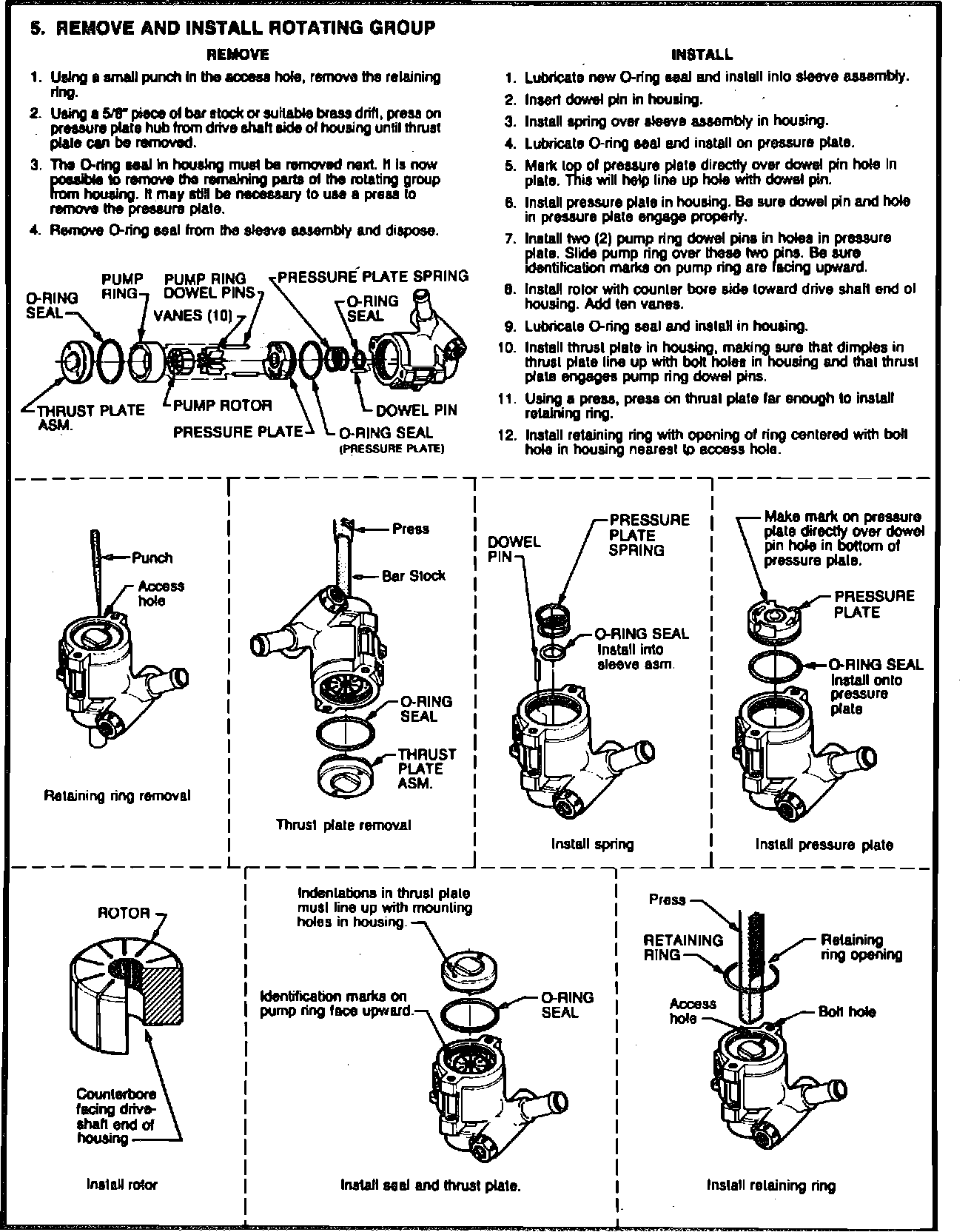

Fig. 10 Power Steering Pump Assembly Overhaul (Part 2 Of 4). TC Series:

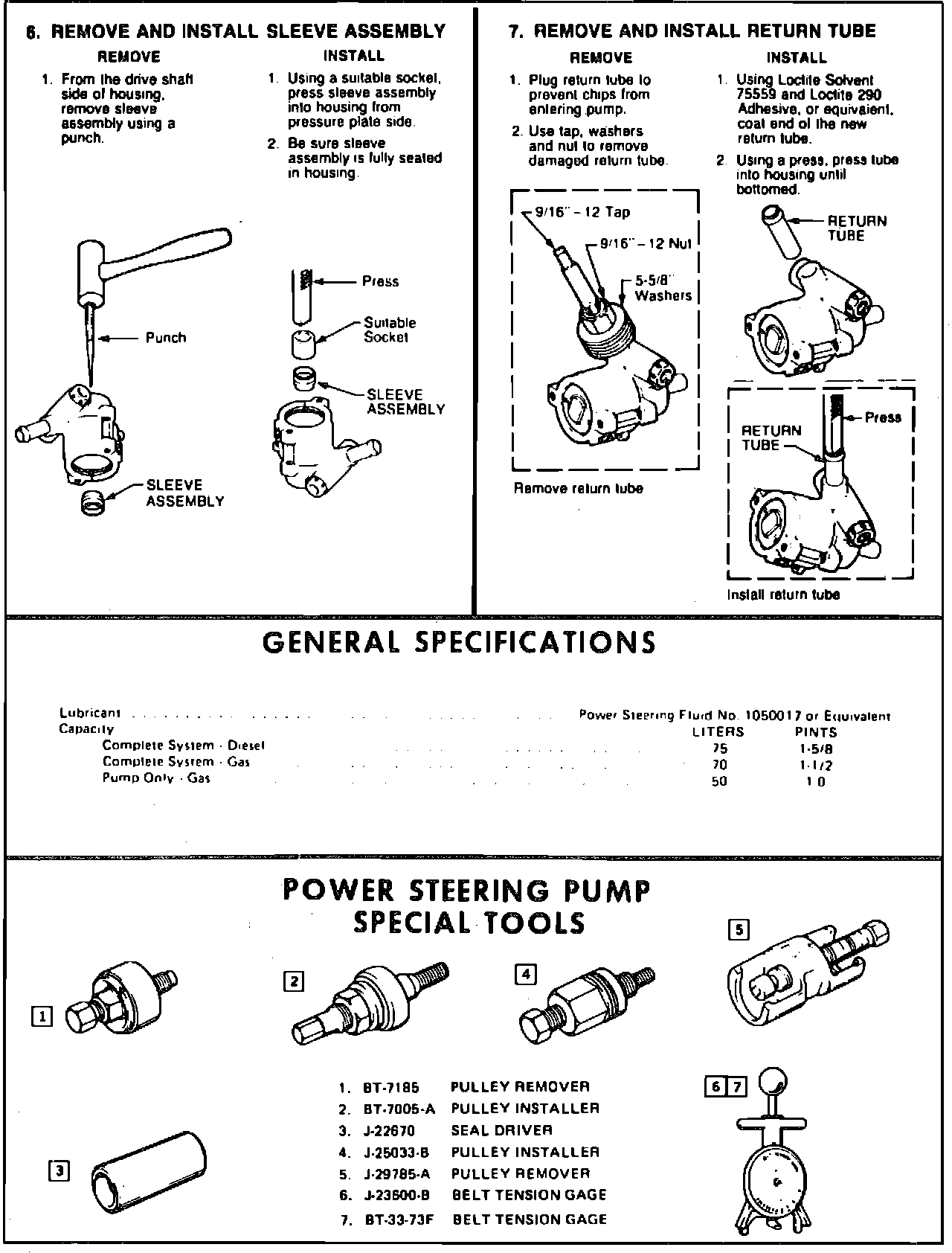

Fig. 10 Power Steering Pump Assembly Overhaul (Part 3 Of 4). TC Series:

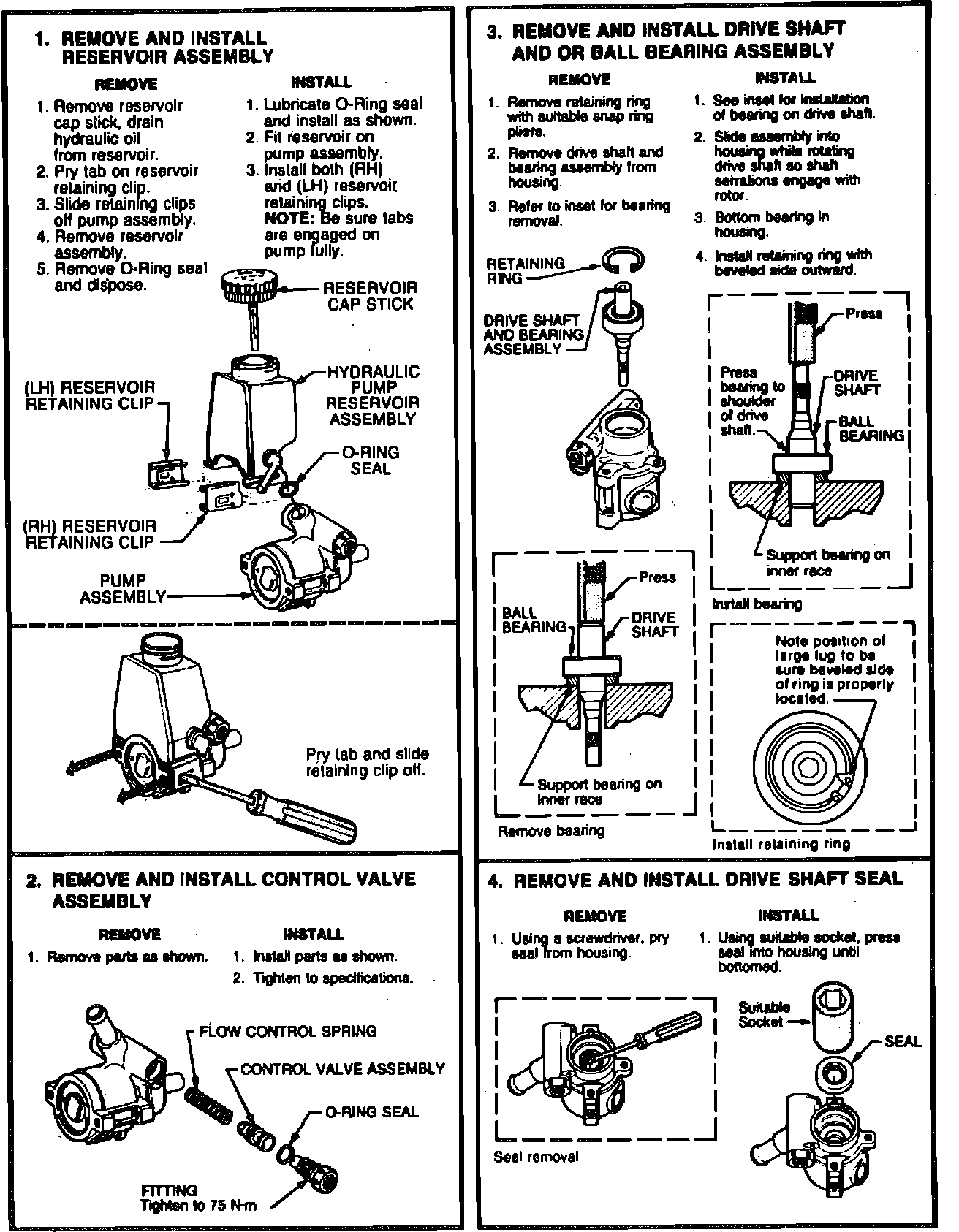

Fig. 10 Power Steering Pump Assembly Overhaul (Part 4 Of 4). TC Series:






Refer to Fig. 10 for service procedures on this power steering pump.
