P Series L/Reservoir Pump

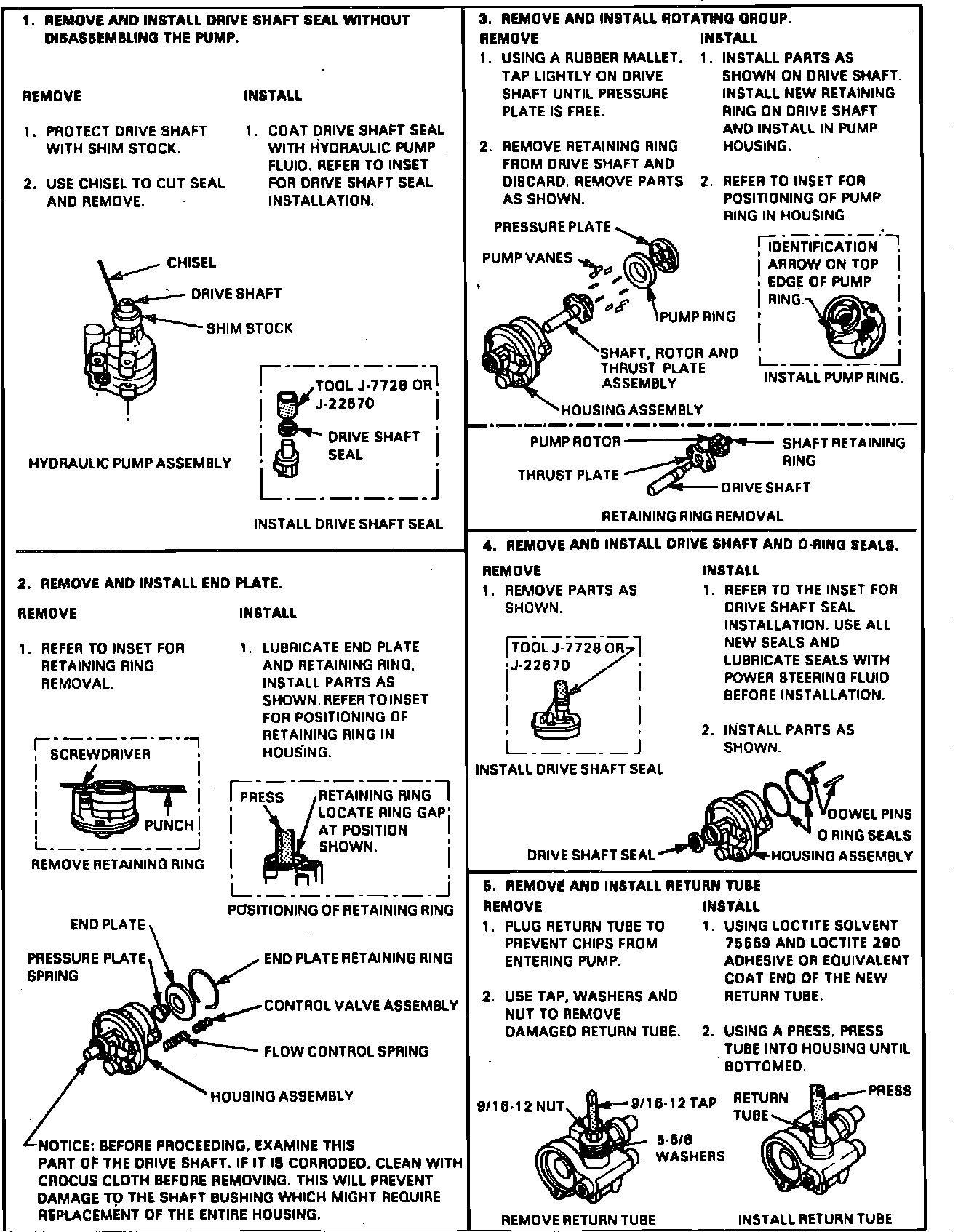

Fig. 9 Power Steering Pump Assembly Overhaul (Part 1 Of 2). P Series, L/reservoir:

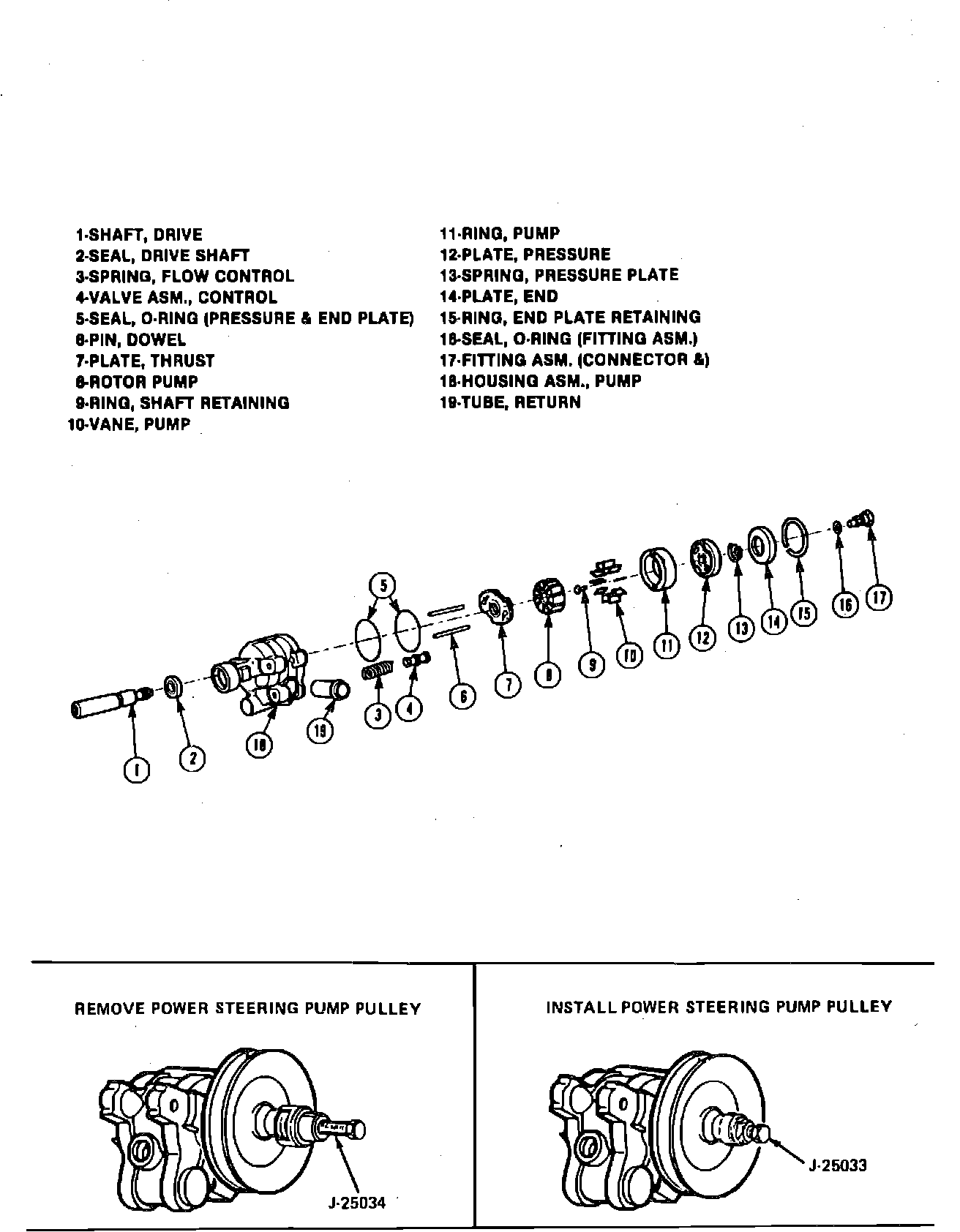

Fig. 9 Power Steering Pump Assembly Overhaul (Part 2 Of 2). P Series, L/reservoir:






Refer to Fig. 9 for service procedures on this power steering pump.
