System Diagnosis - Starter - Delco/Remy

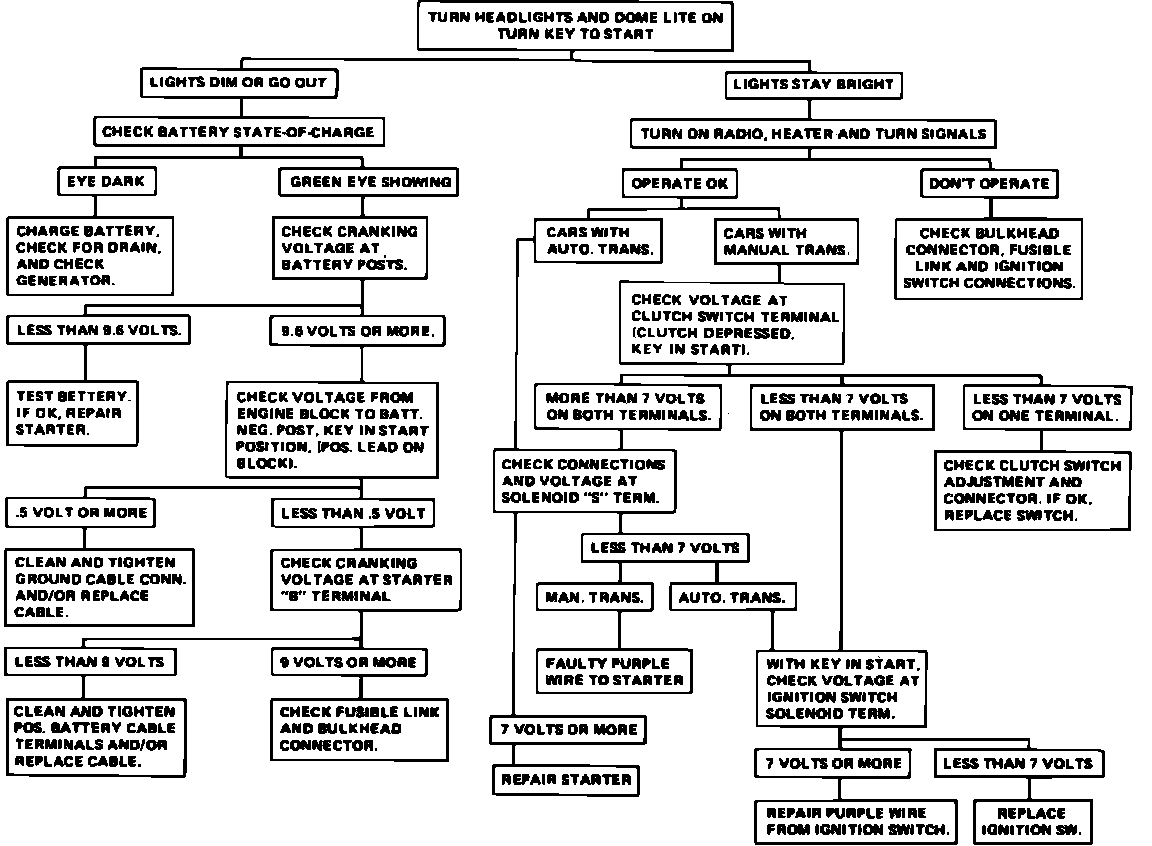

Fig. 2 Delco-Remy Starter Motor Diagnosis (Part 1 Of 2):

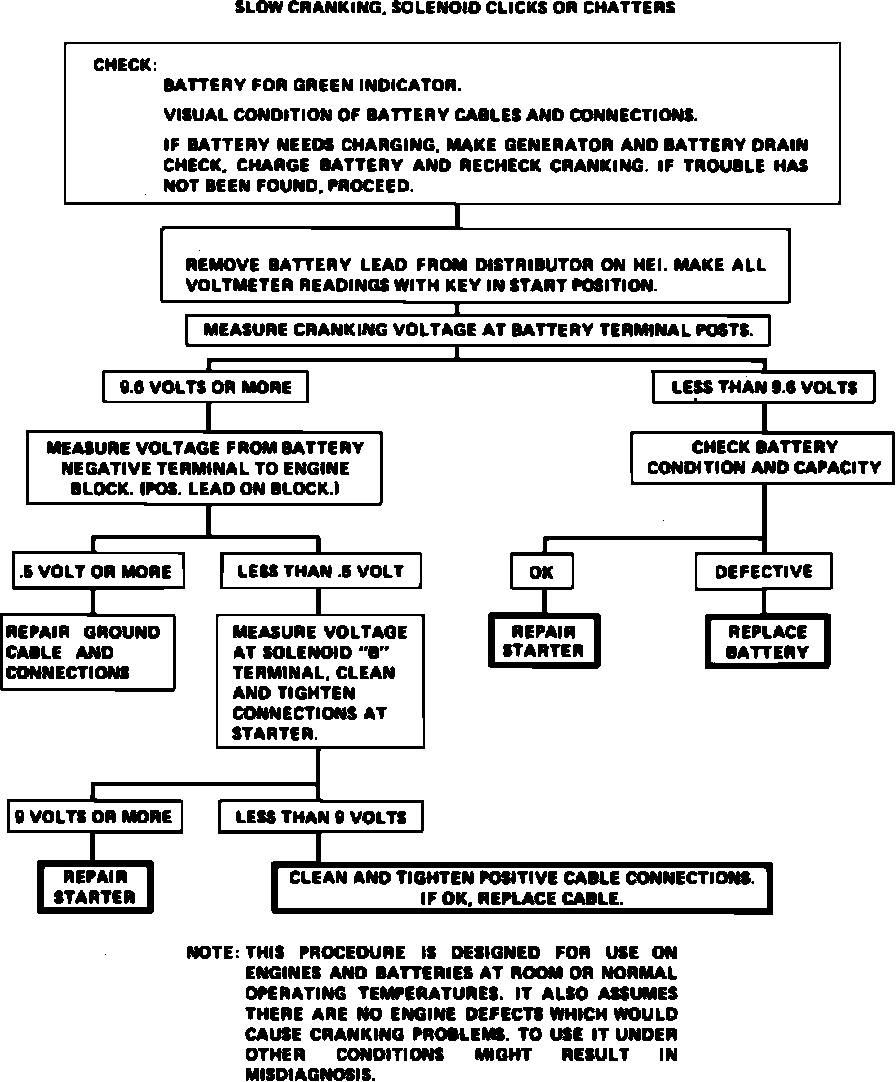

Fig. 2 Delco-Remy Starter Motor Diagnosis (Part 2 Of 2):

When diagnosing Delco-Remy starters, refer to Fig. 2.
