SIR Diagnostic System Check

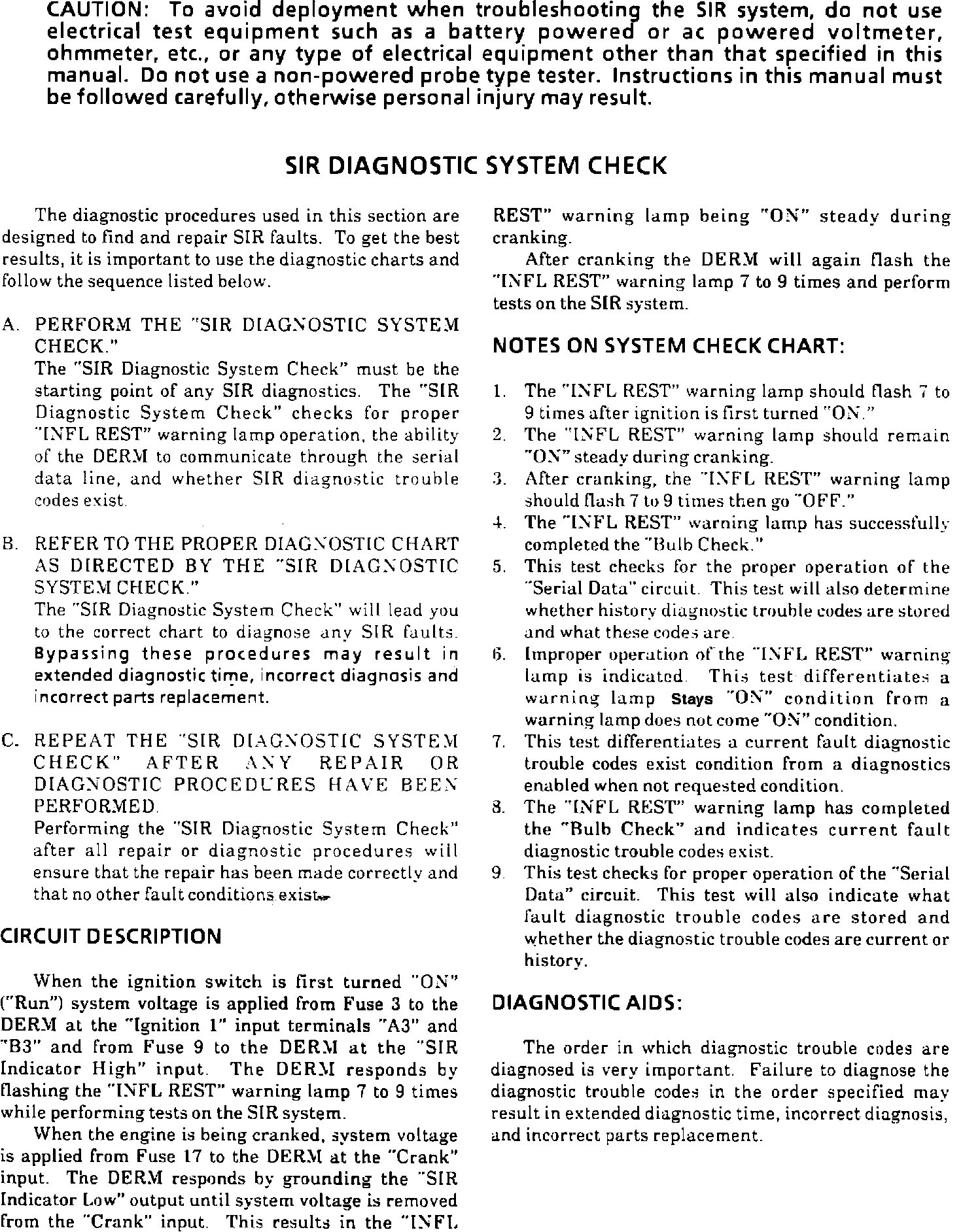

Fig. 77 SIR Diagnostic System Check (Part 1 of 2):

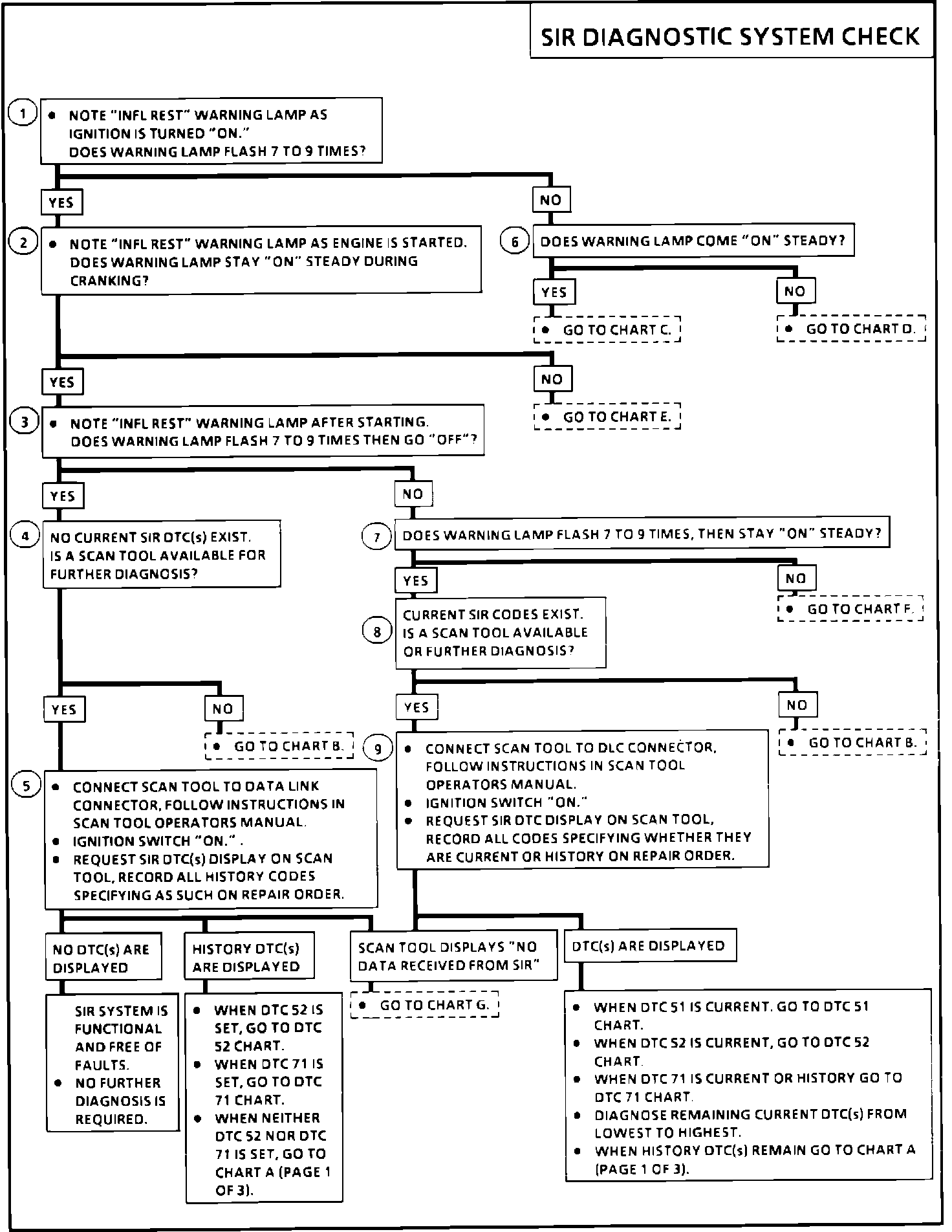

Fig. 77 SIR Diagnostic System Check (Part 2 of 2):
