Chart G DERM Cannot Communicate Through the Serial Data Circuit

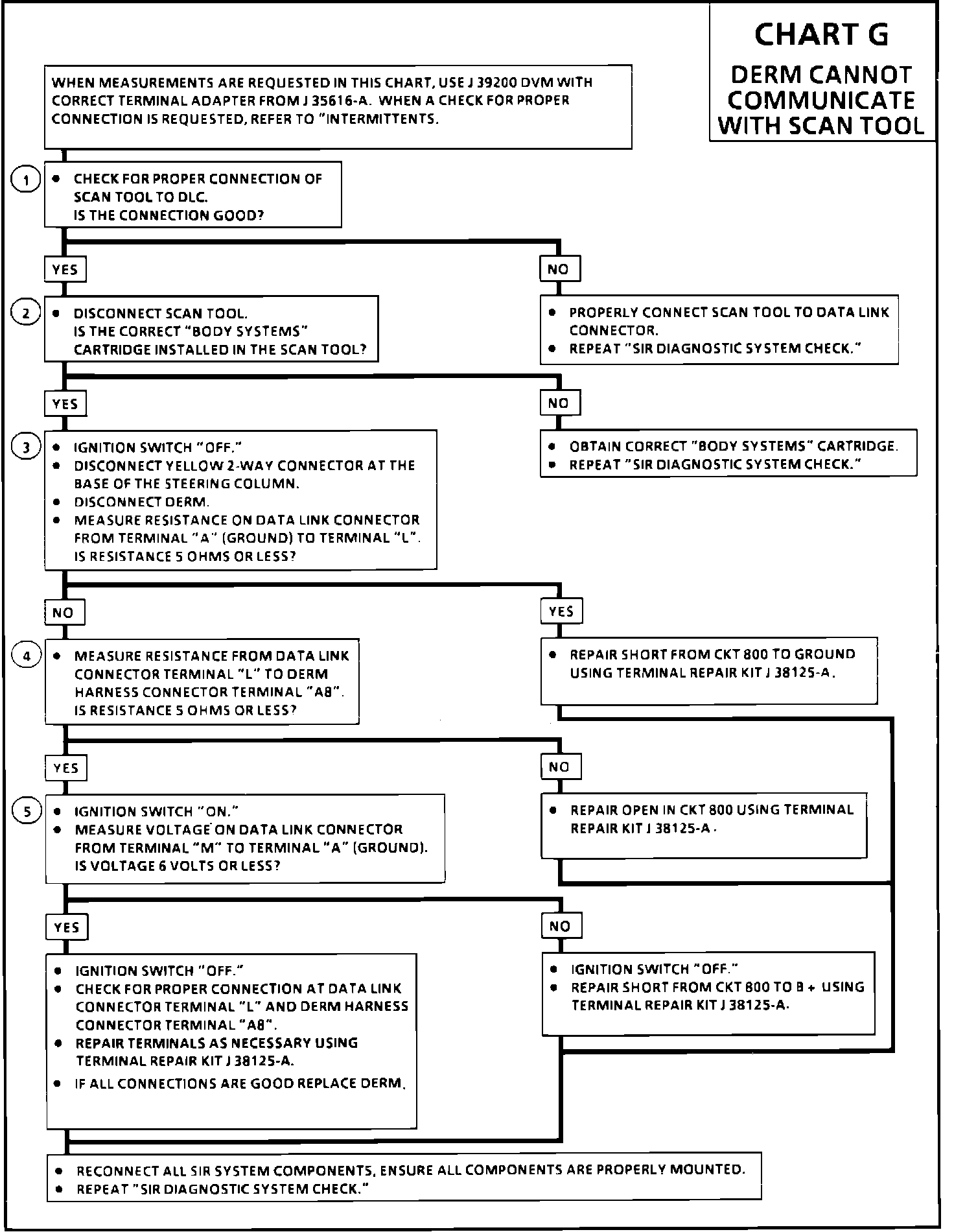

Fig. 84 Chart G, DERM Cannot Communicate With Tech 1 (Part 1 of 2):

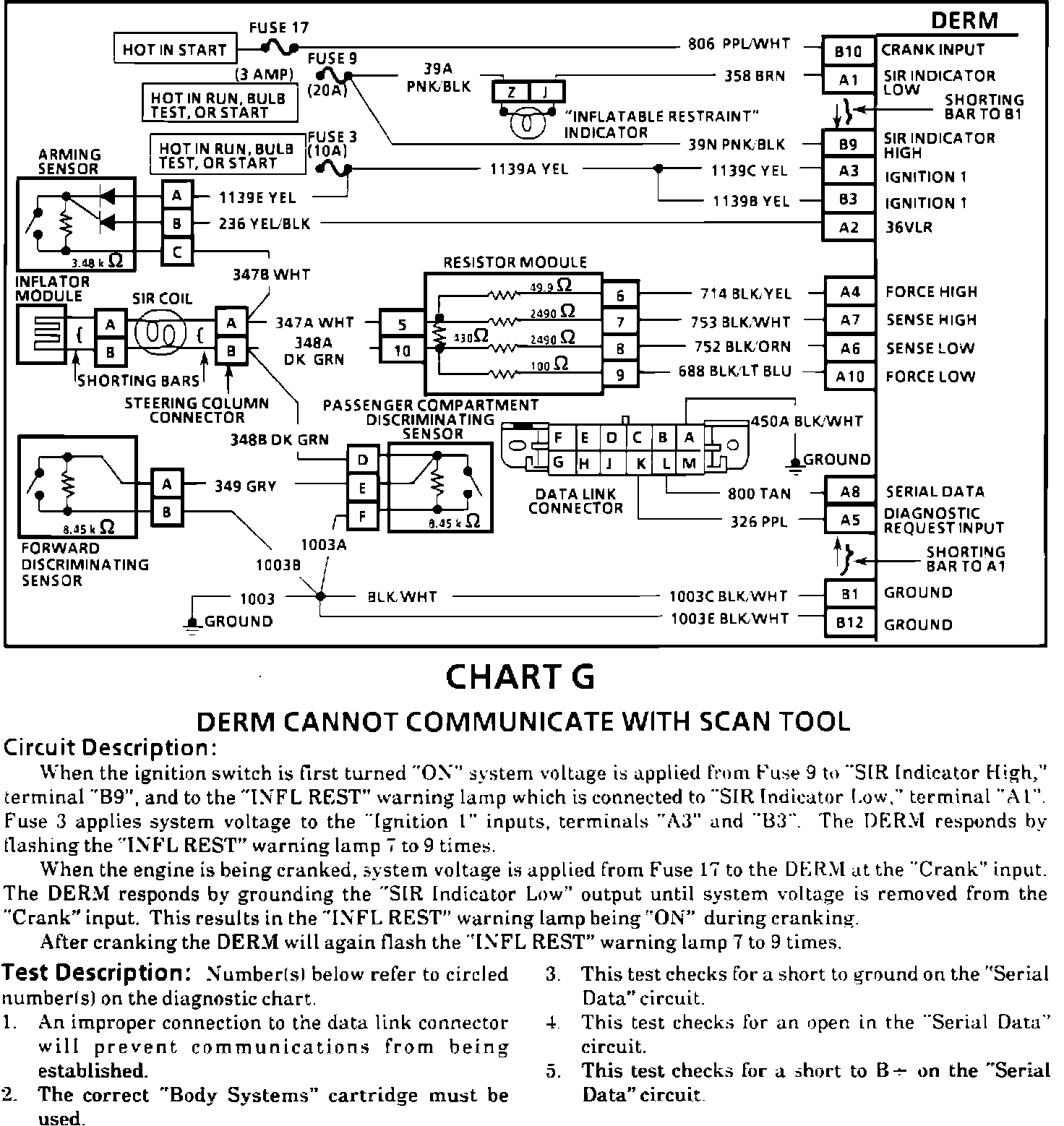

Fig. 84 Chart G, DERM Cannot Communicate With Tech 1 (Part 2 of 2):
