Chart F Indicator Flashes 7-9 Times Then Flashes DTC 12

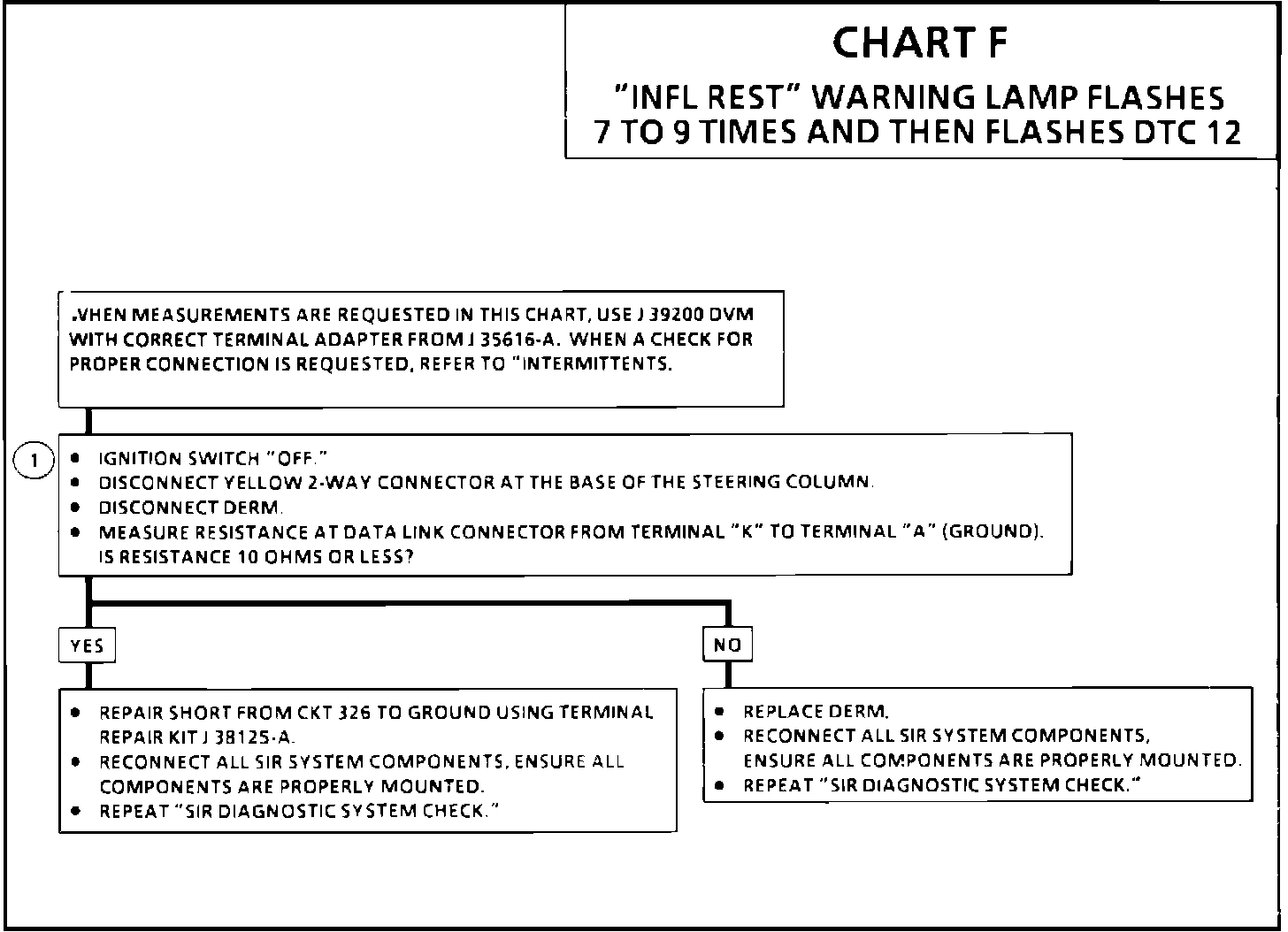

Fig. 83 Chart F, INFL REST Indicator Blinks 7 To 9 Times Then Flashes Code 12 (Part 1 of 2):

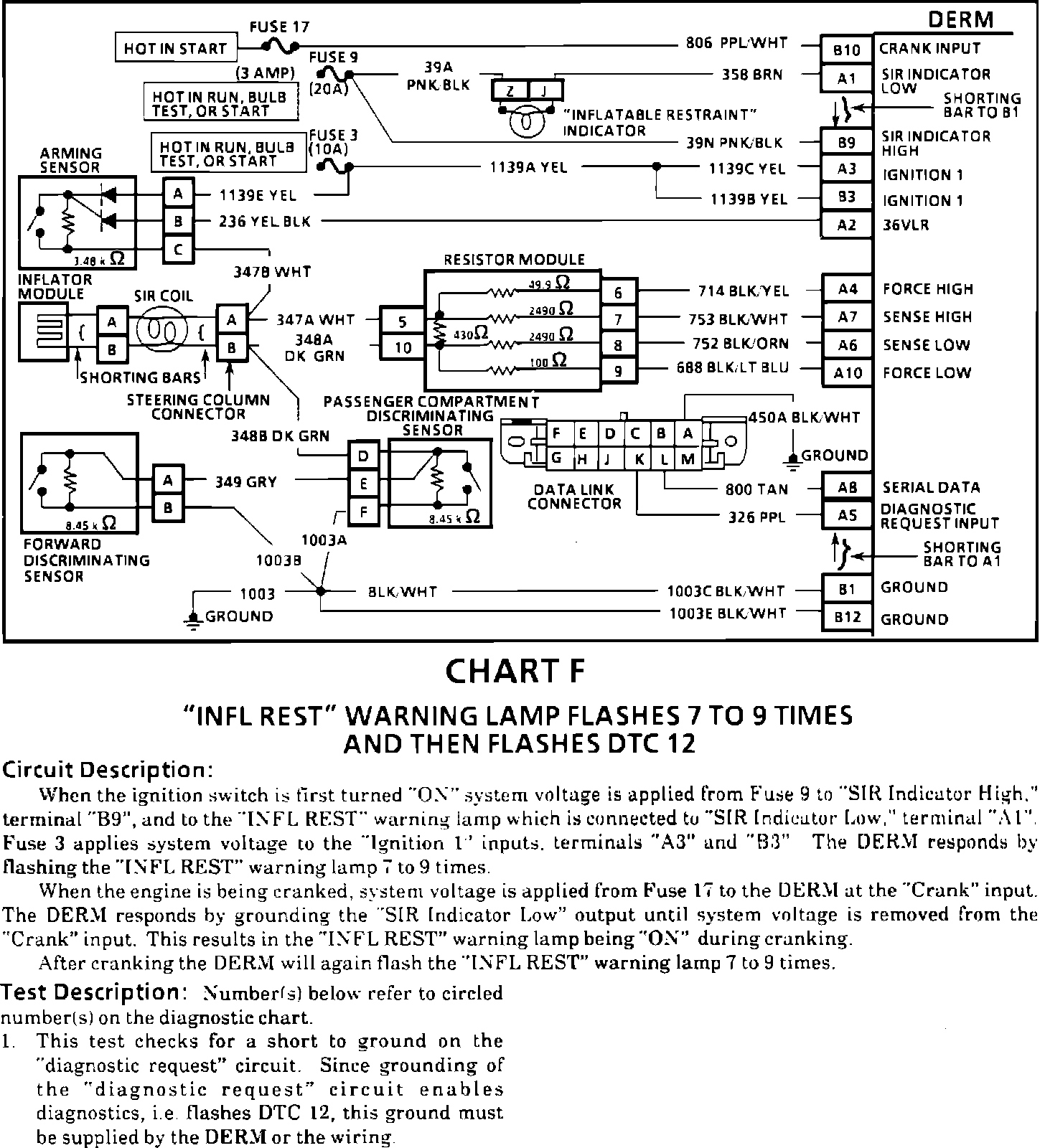

Fig. 83 Chart F, INFL REST Indicator Blinks 7 To 9 Times Then Flashes Code 12 (Part 2 of 2):
