Chart D Air Bag Warn Lamp Does Not Come ON Steady During Crank

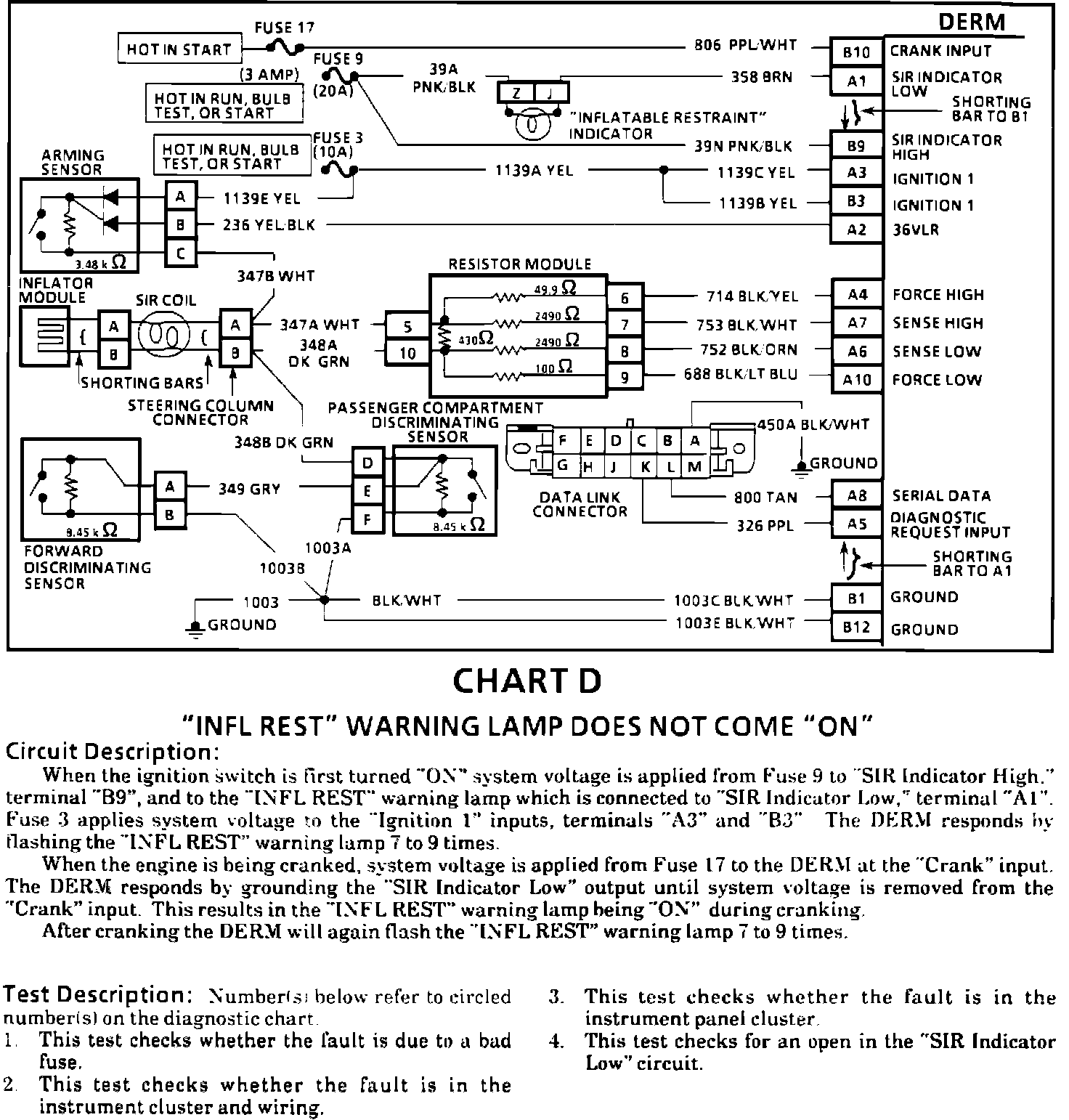

Fig. 81 Chart D, INFL REST Indicator Does Not Come On (Part 1 of 2):

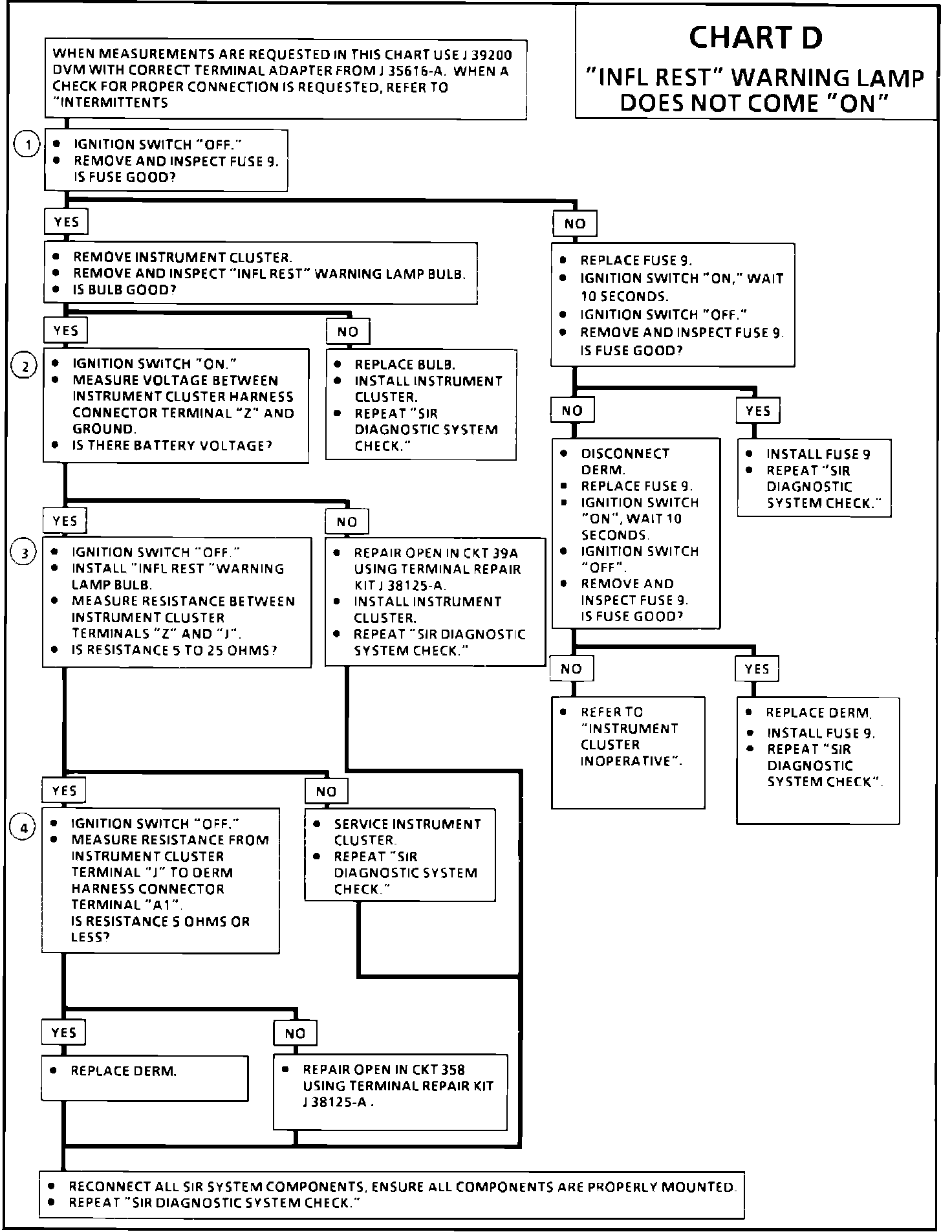

Fig. 81 Chart D, INFL REST Indicator Does Not Come On (Part 2 of 2):
