Chart B Flash Code Diagnosis

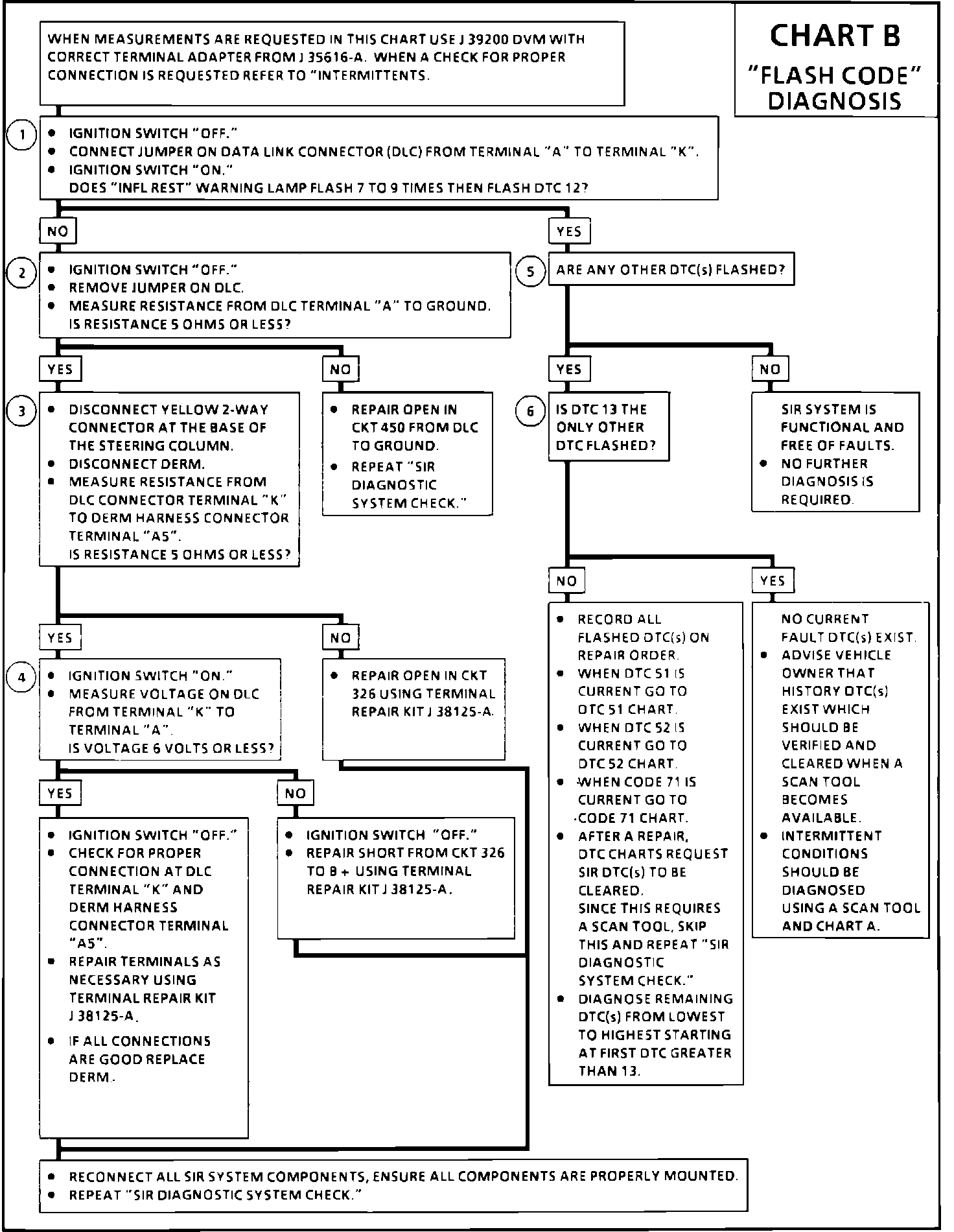

Fig. 79 Chart B, Flash Code Diagnosis (Part 1 of 2):

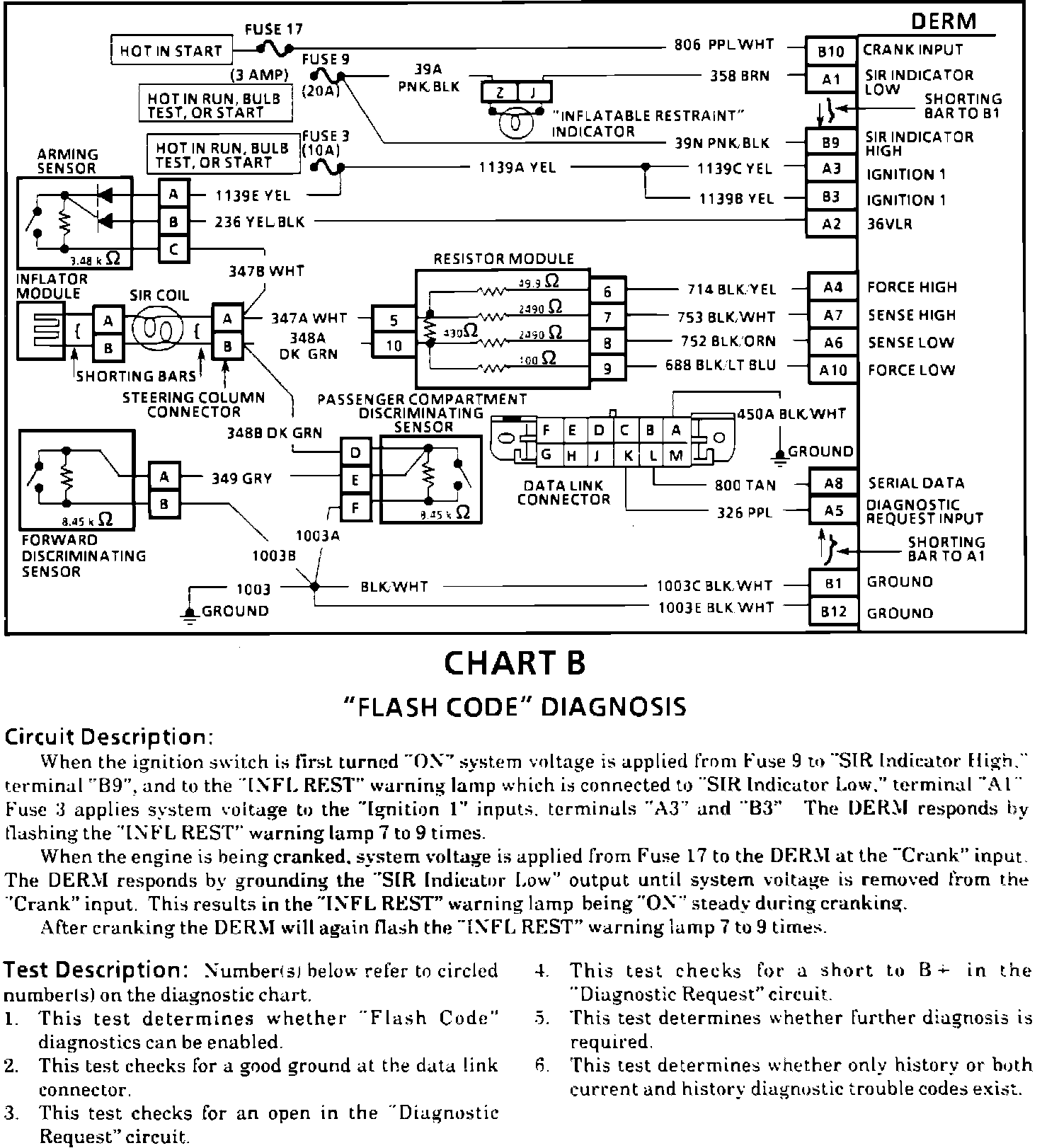

Fig. 79 Chart B, Flash Code Diagnosis (Part 2 of 2):
