Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Data Sensors & Vehicle Data Sensors

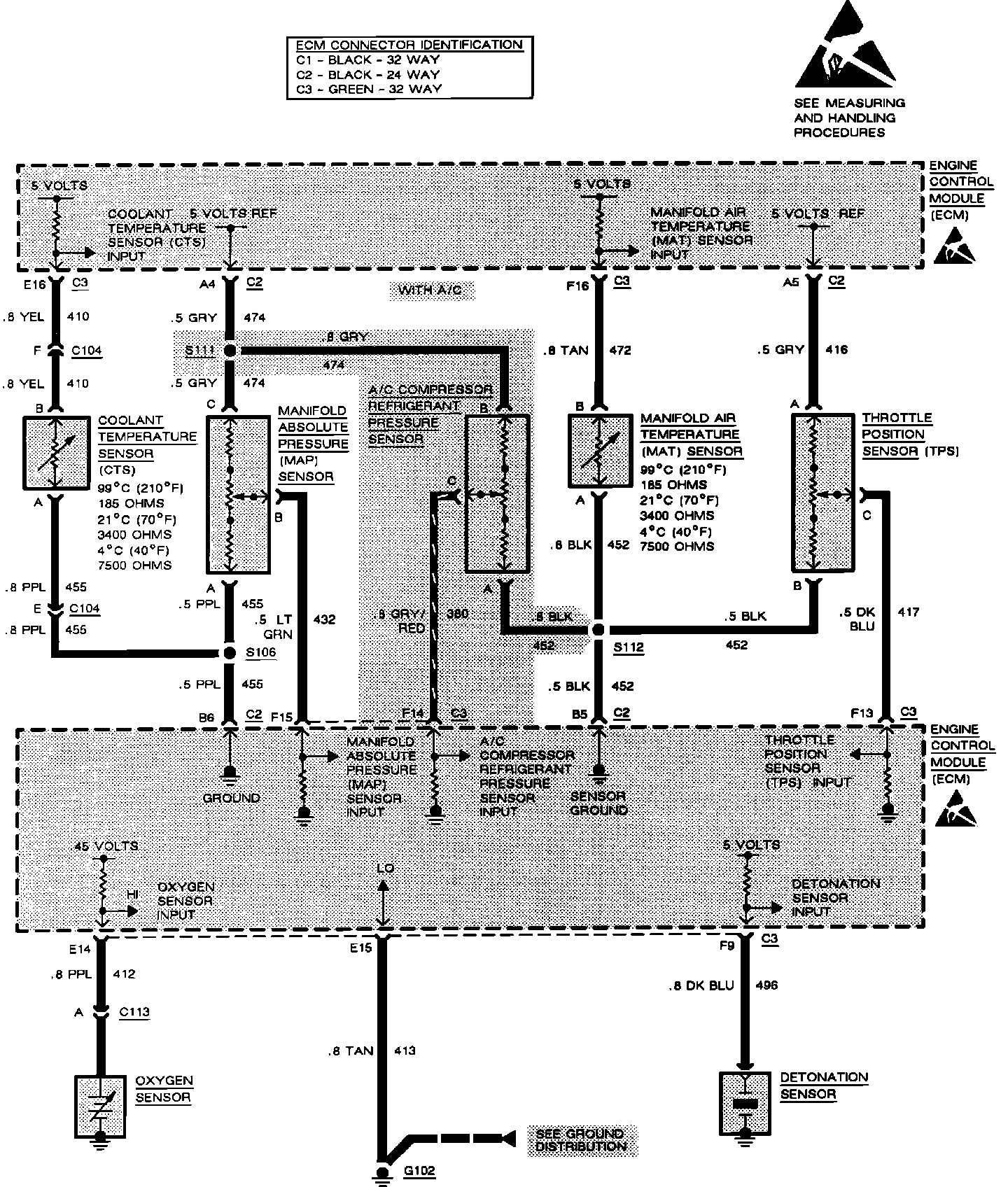

Engine Data Sensors & Vehicle Data Sensors

MFI: Engine Data Sensors:
