Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power and Grounds

Power and Grounds

MFI: Power And Grounds:

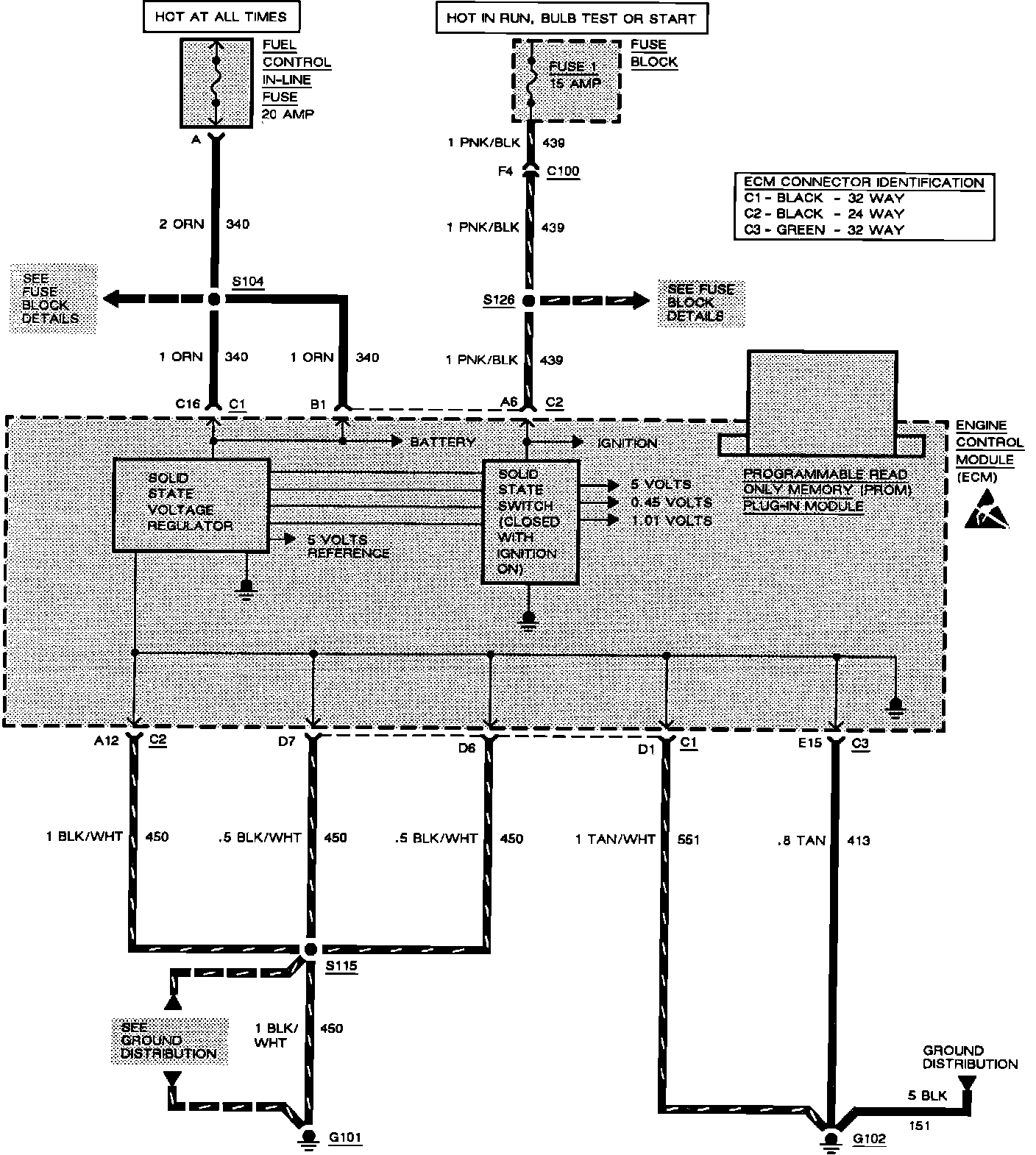

MFI: Power And Grounds:
