Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G300 and G301 >> Sedan

Sedan

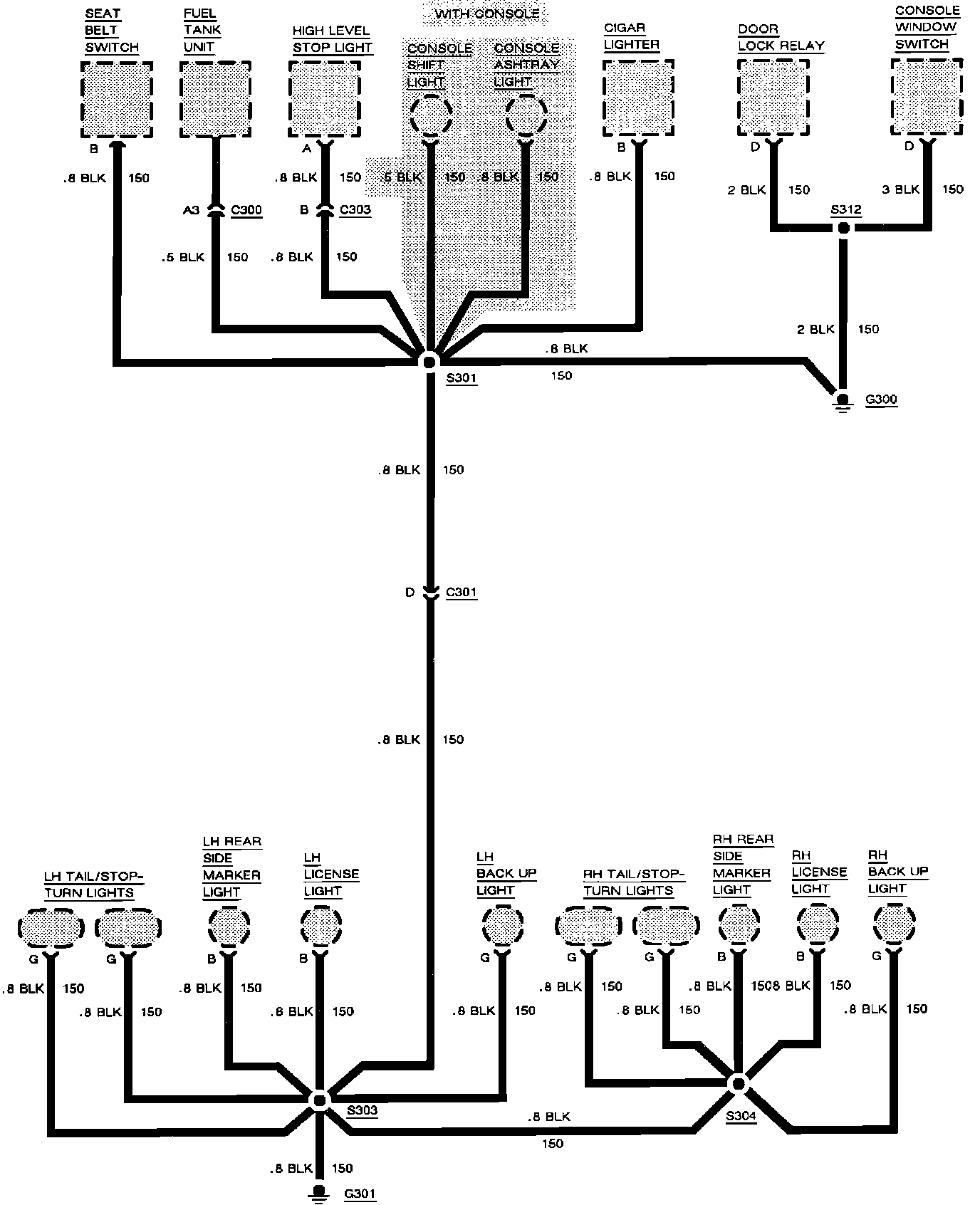

Ground Distribution: G300 And G301:
