Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connectors By Number >> C100-C199 >> C150 (2 Cavities)

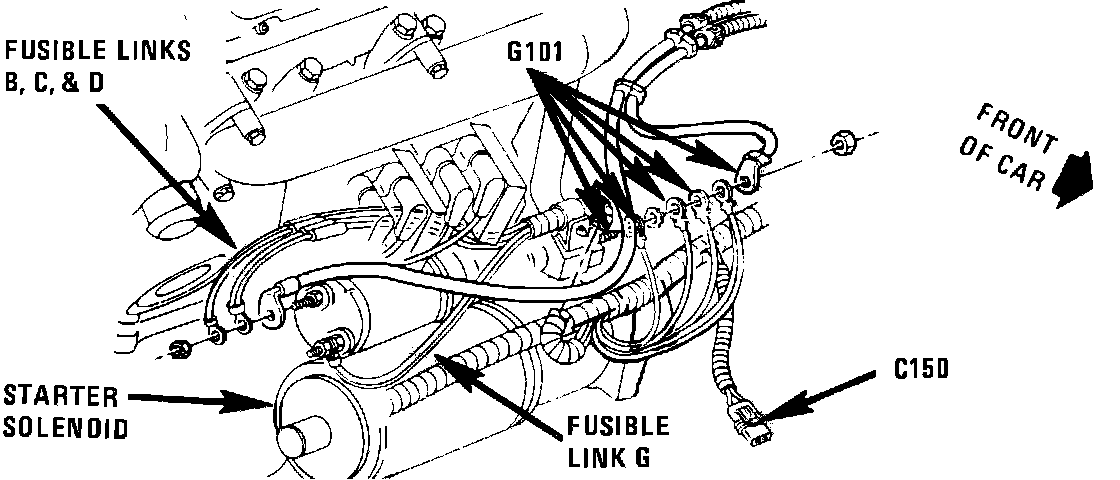

C150 (2 Cavities)

Lower Front Of Engine (VIN A And VIN 4 Similar):
