Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connectors By Number >> C100-C199 >> C101 (11 Cavities)

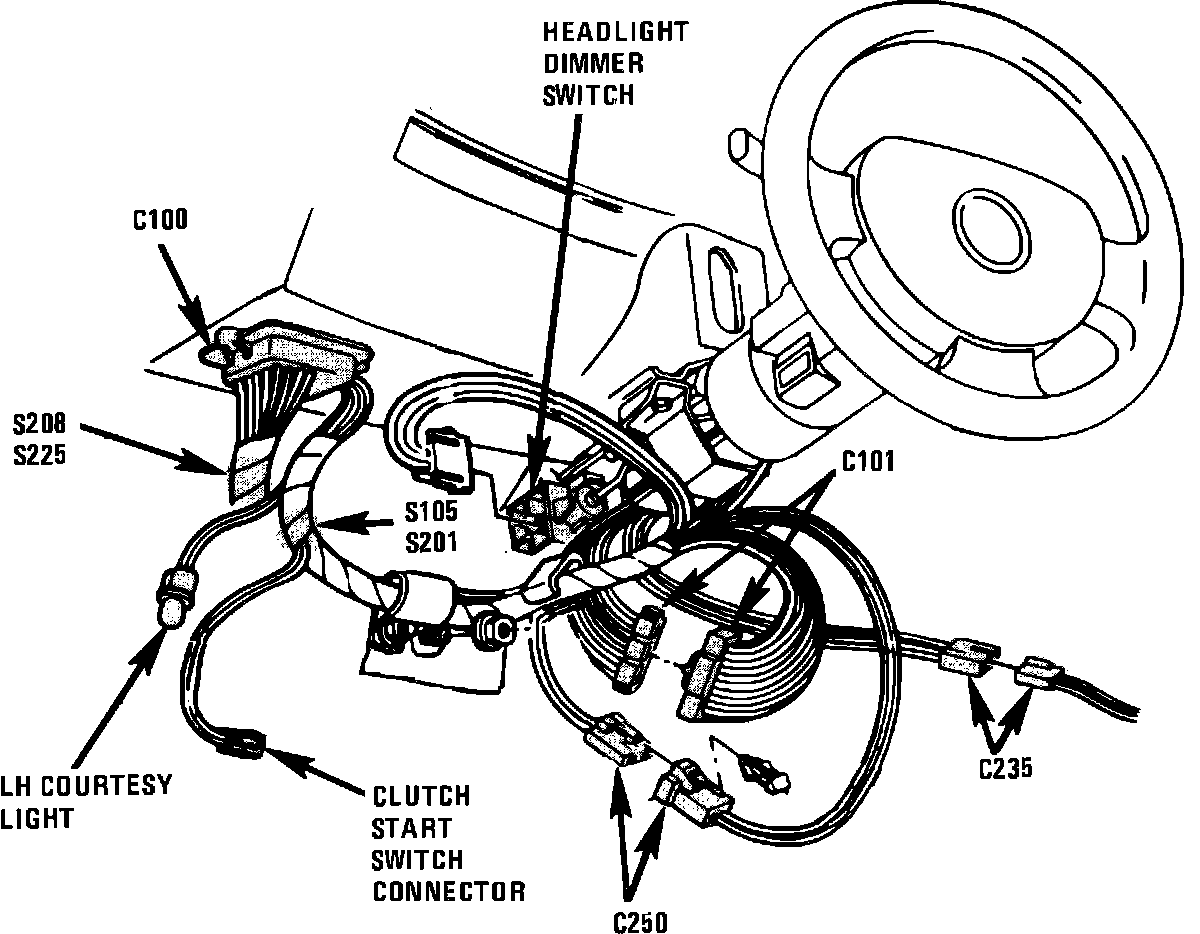

C101 (11 Cavities)

LH Side Of Steering Column:
