Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connectors By Component >> Assembly Line Diagnostic Link (ALDL or DLC)

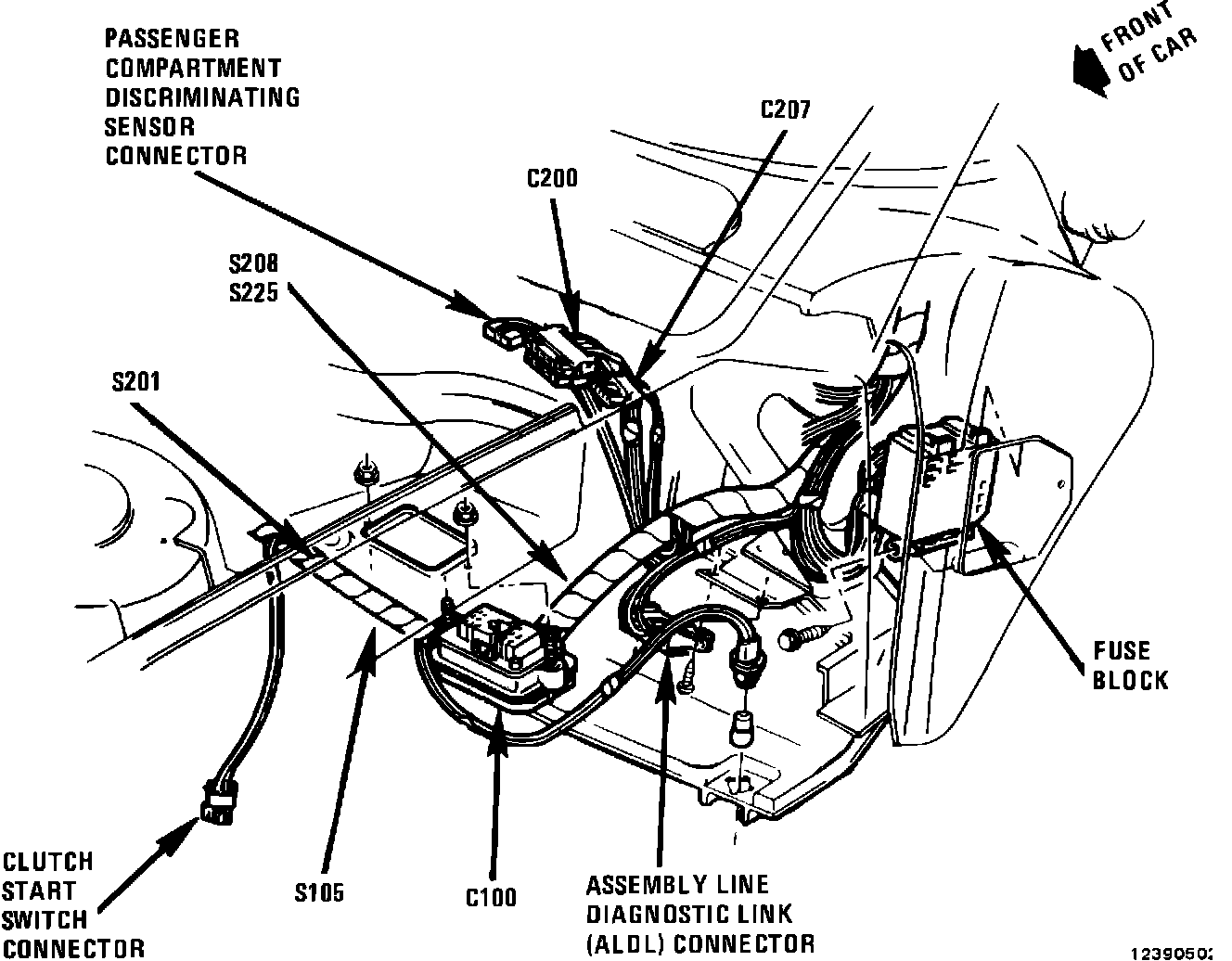

Assembly Line Diagnostic Link (ALDL or DLC)

Behind LH Side Of I/P:
