Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lamps (DRL) >> With Fog Lamps

With Fog Lamps

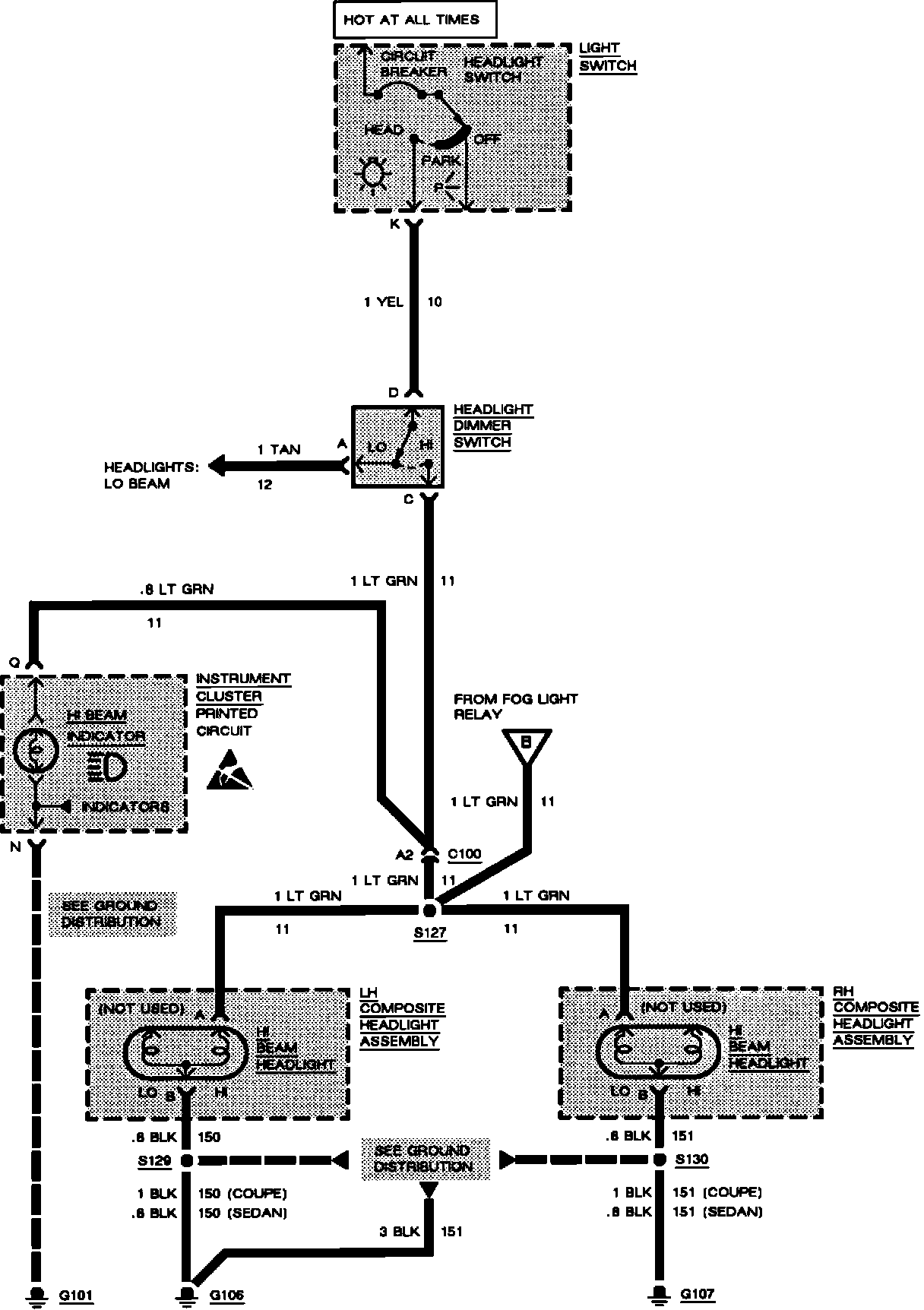

Headlights With Fog Lamps:

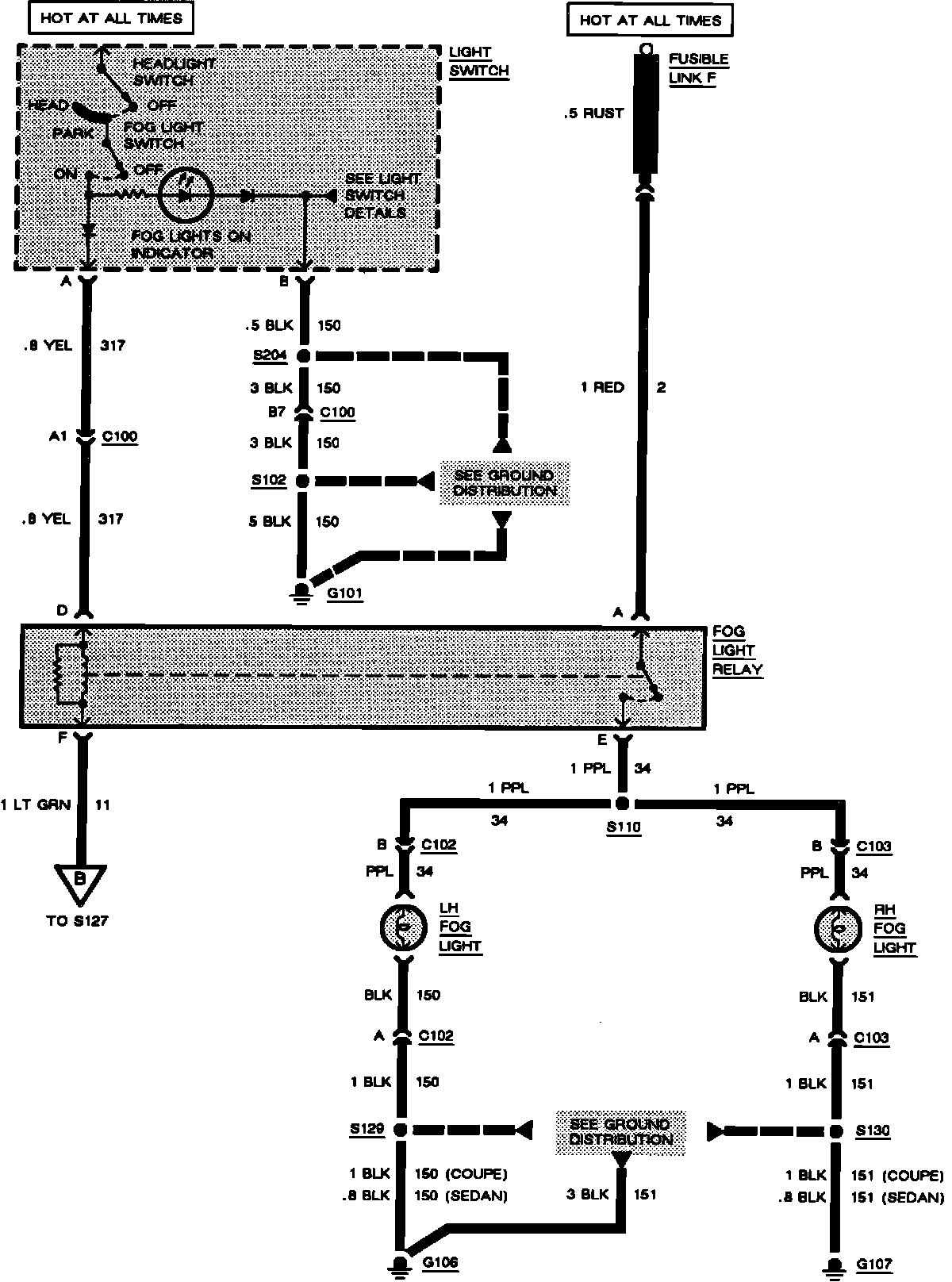

Headlights With Fog Lamps:
