LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1992
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Testing and Inspection
>>
Diagnostic Charts
Diagnostic Charts

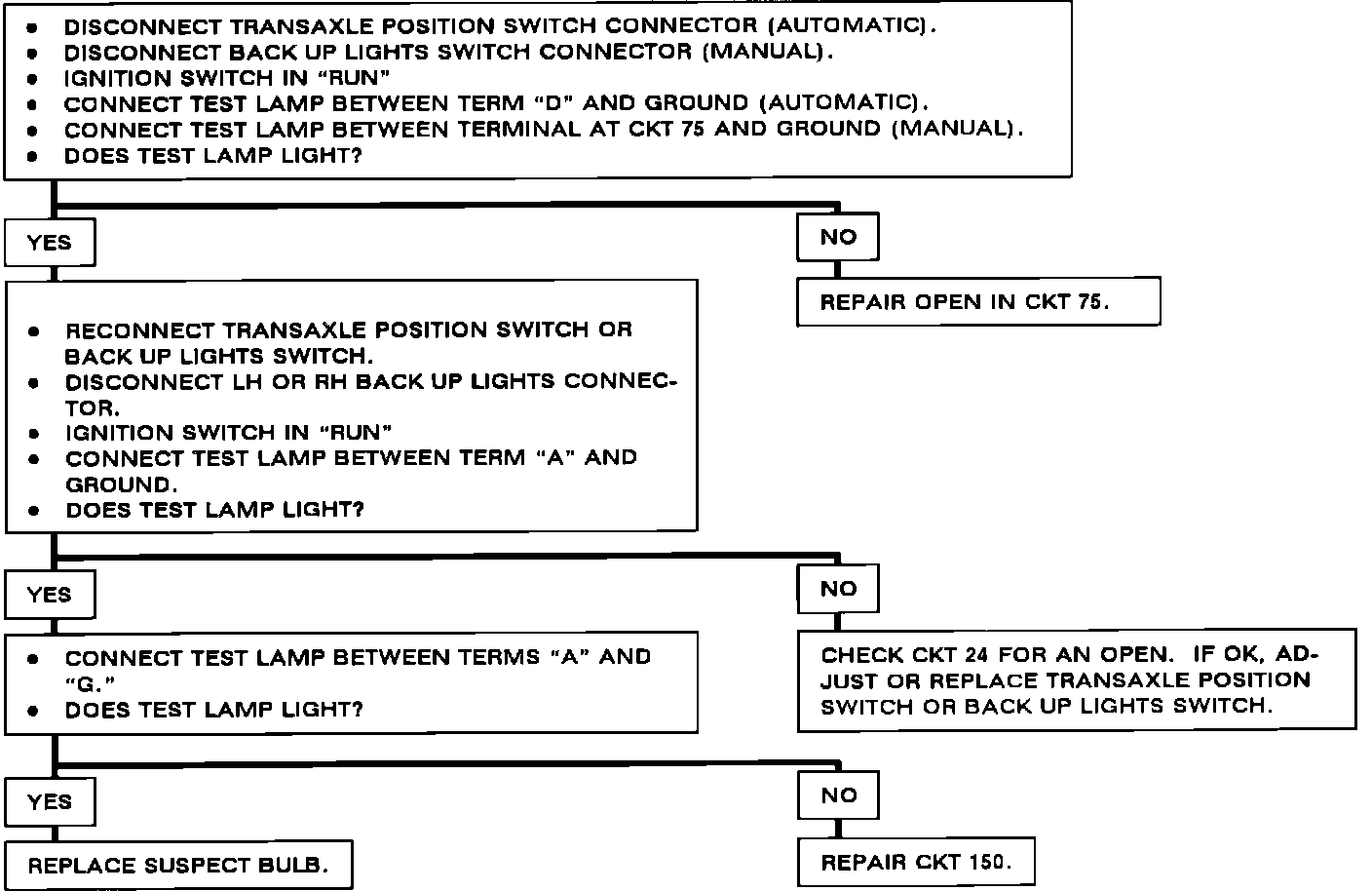

Chart #1 - LH And RH Back Up Lights Are Inoperative:
