Chart 7 Oil Pressure Gage Does Not Operate Properly
Chart 7 Oil Pressure Gage Does Not Operate Properly

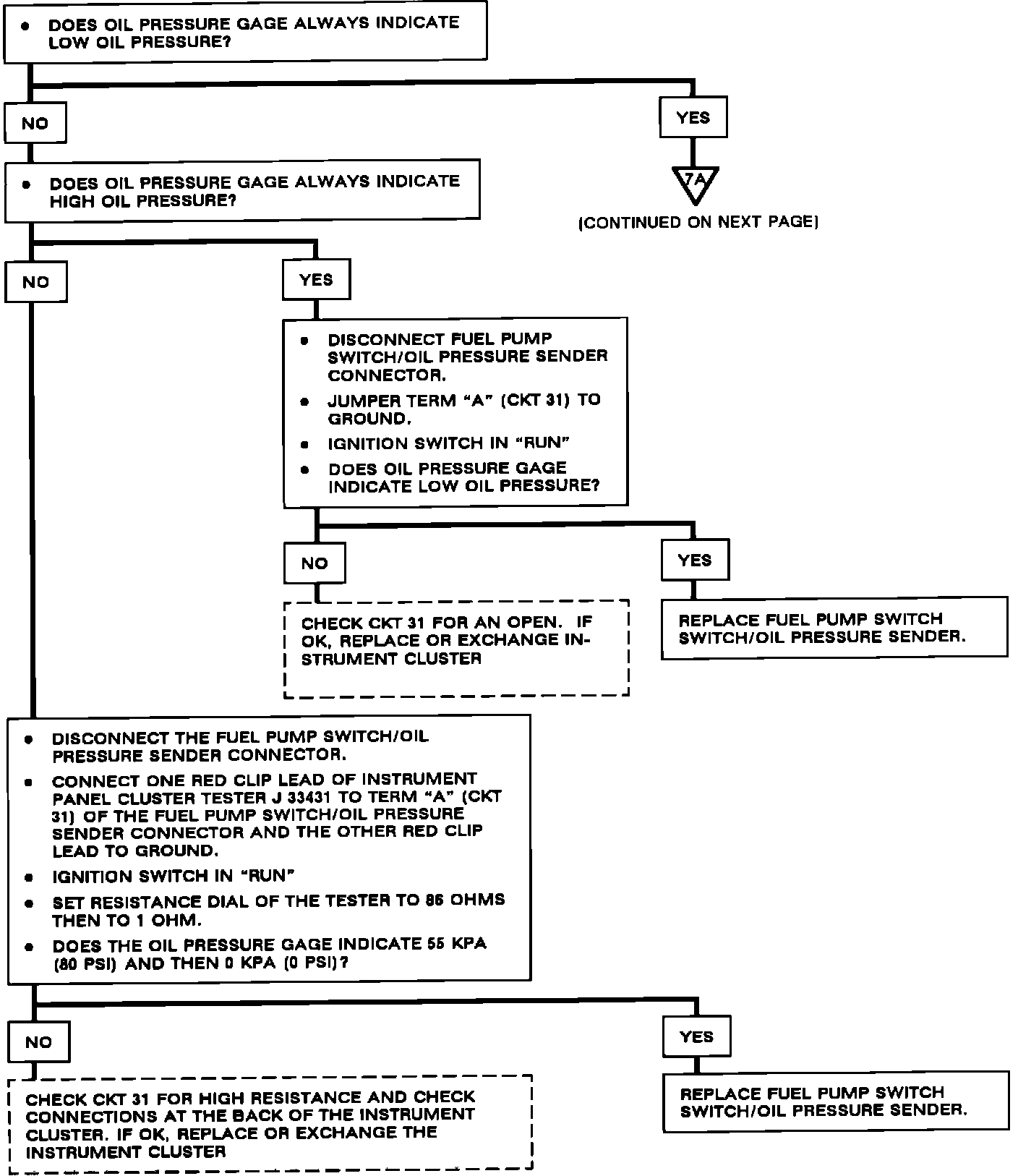

Chart #7 - Oil Pressure Gage Does Not Operate Properly:
Chart #7 - Oil Pressure Gage Does Not Operate Properly:
