Chart 3 Low Coolant Indicator Doesn't Operate Properly

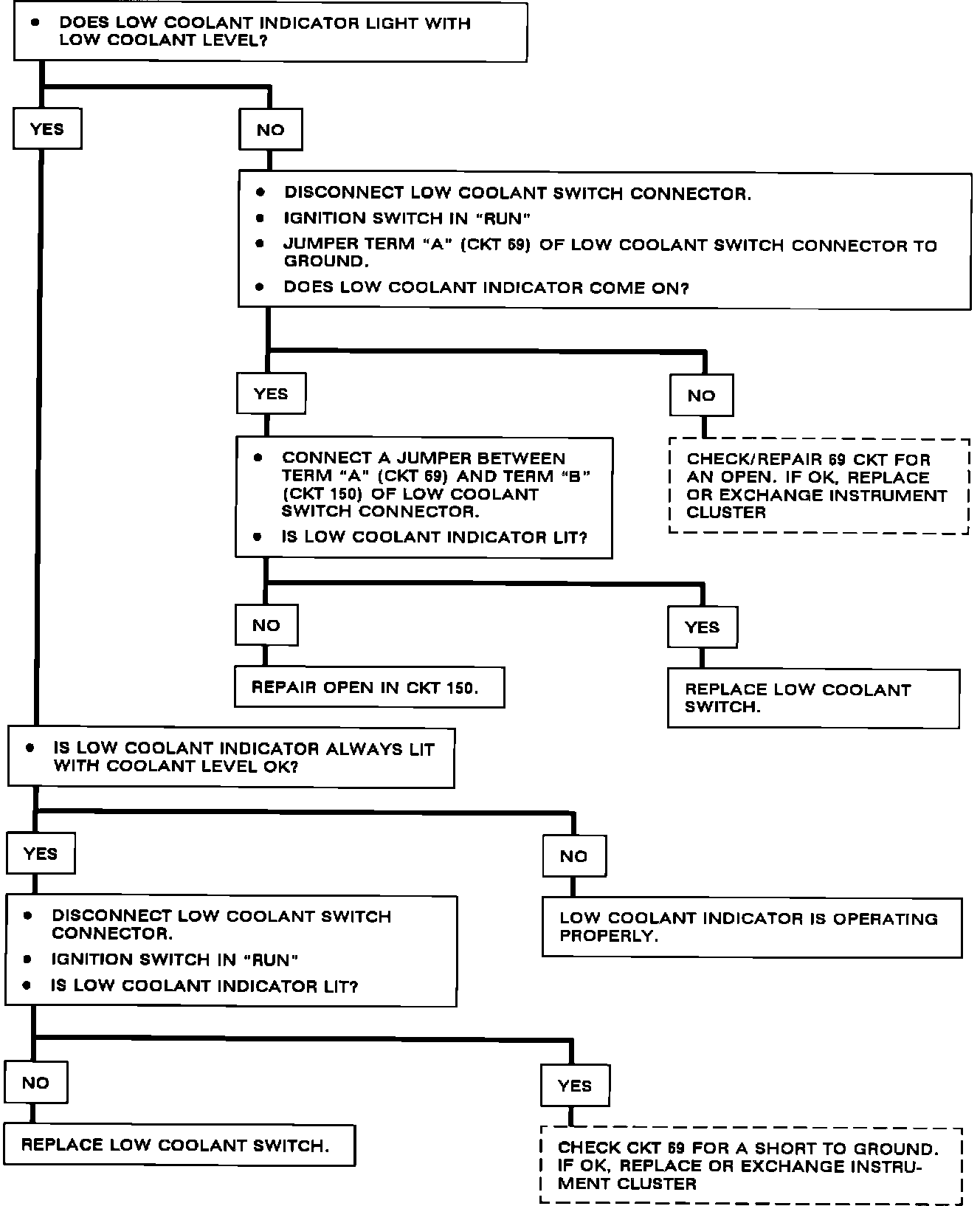

Chart #3 - Low Coolant Indicator Does Not Operate Properly:
