Chart 1 Fuel Gage Doesn't Operate Properly
Chart 1 Fuel Gage Doesn't Operate Properly

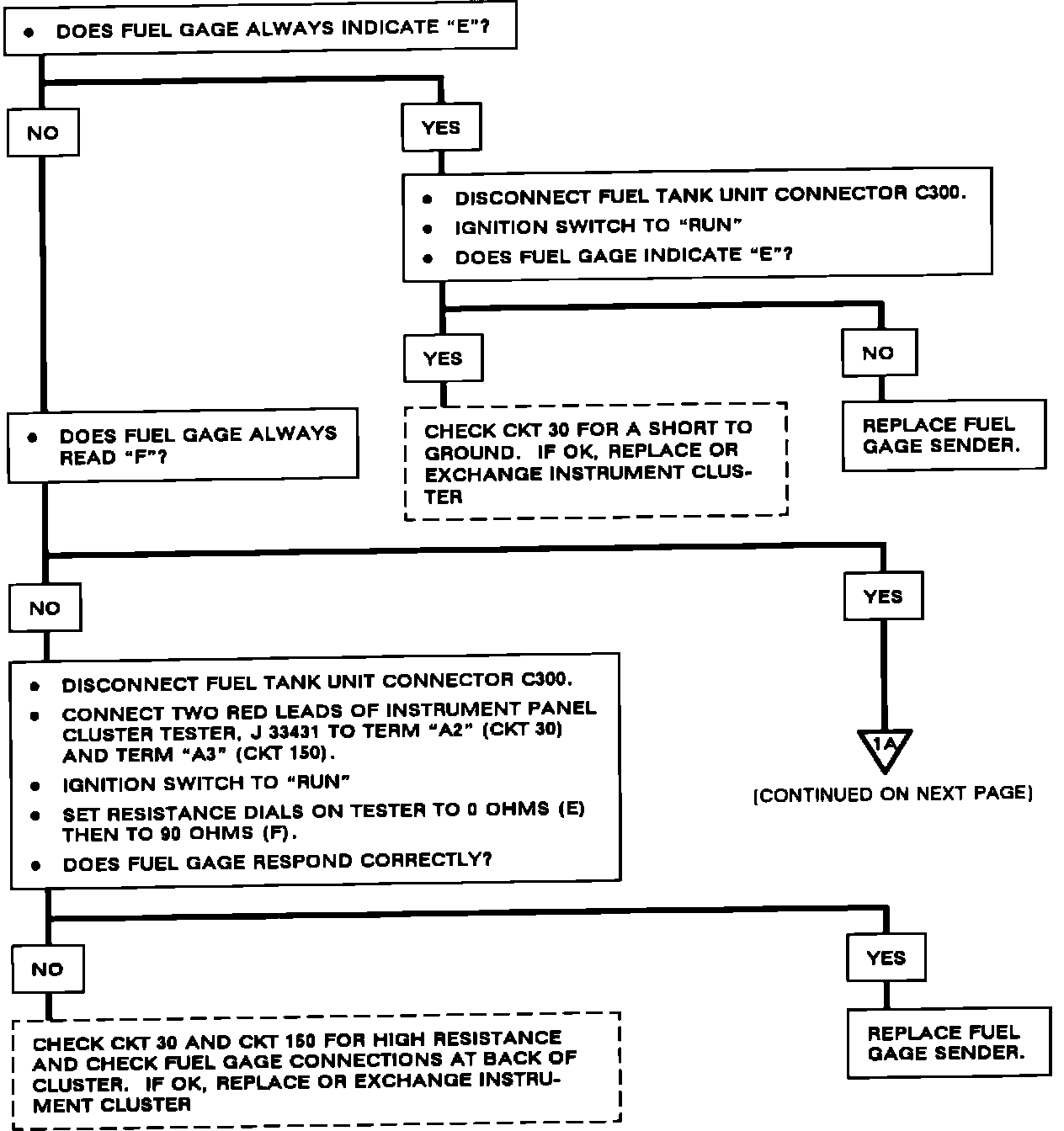

Chart #1 - Fuel Gage Does Not Operate Properly:
Chart #1 - Fuel Gage Does Not Operate Properly:
