Chart 4 Fasten Belts Indic. Doesn't Light But Chime Operates

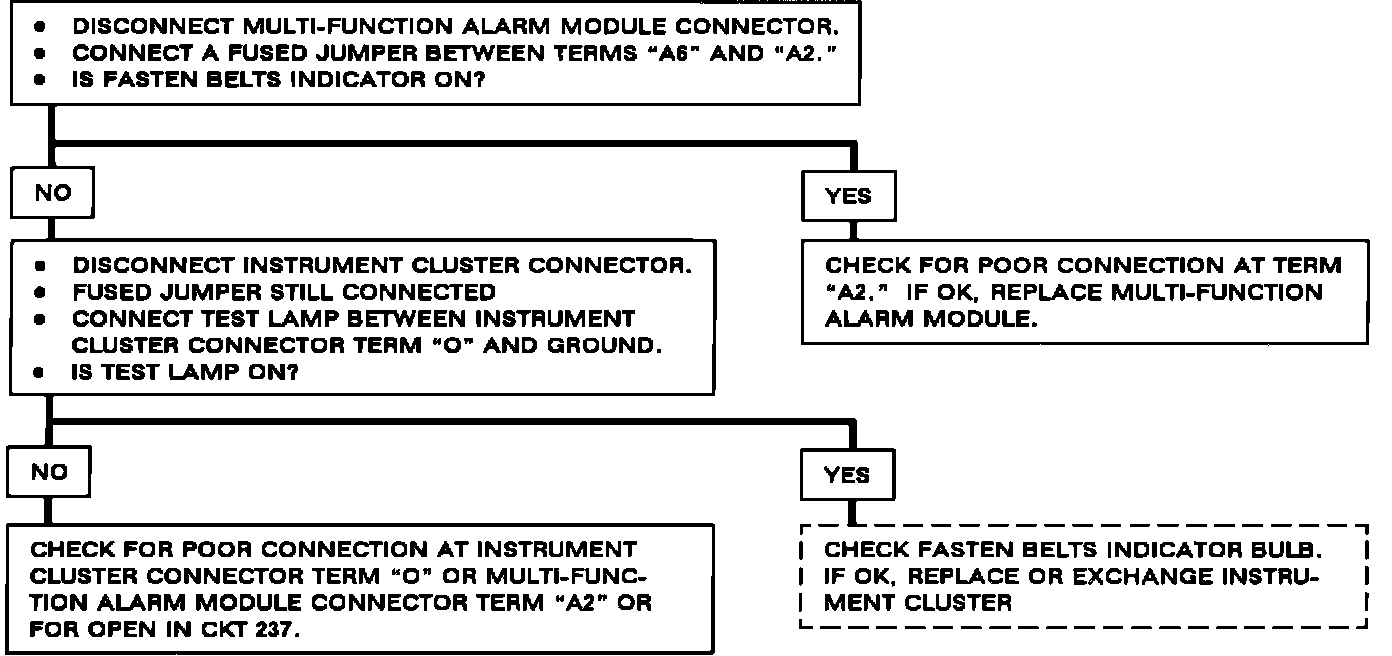

Chart #4 - Fasten Belts Indicator Does Not Light But Fasten Belts Chime Operates Properly With Driver's Seat Belt Unbuckled:
