Functional Test - Without A/C

Heater System Functional Test:

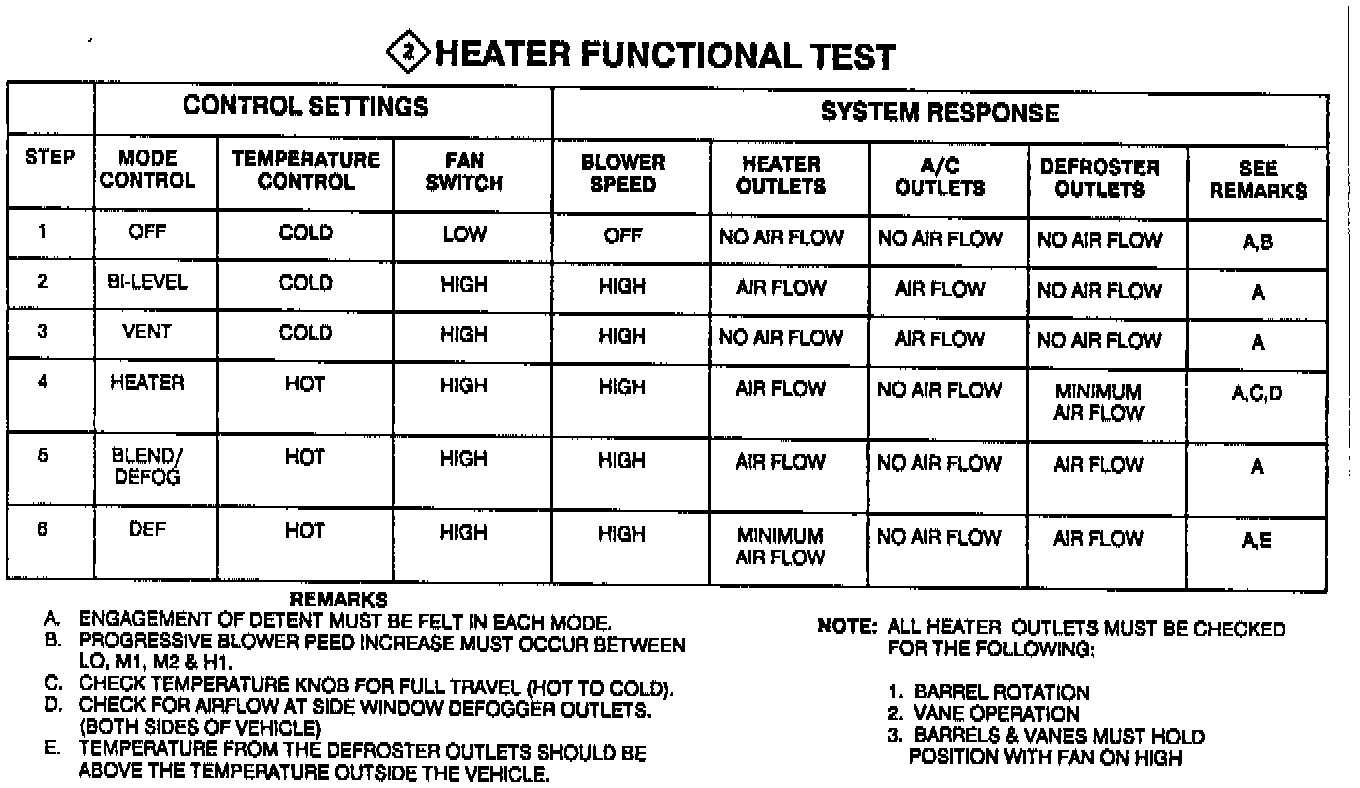

Use the chart to check for normal operation. If results are NOT normal refer to Insufficient Heating charts. Testing and Inspection
