Receiver Dryer: Locations

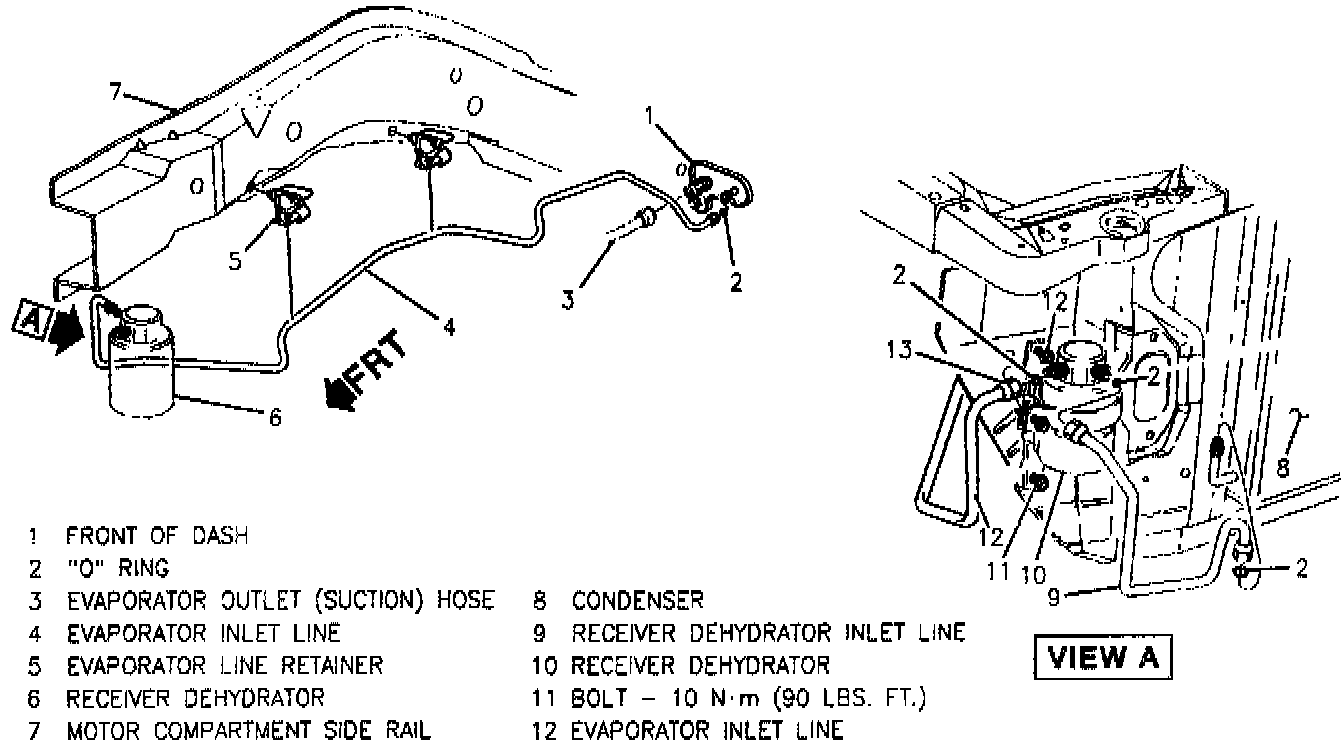

R/D And A/C Line Mounting:
The Receiver Dehydrator (R/D) is located inside RH front wheelhouse, behind splash shield.
