Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Temperature Warning Lamp/Indicator >> Testing and Inspection

Temperature Warning Lamp/Indicator: Testing and Inspection

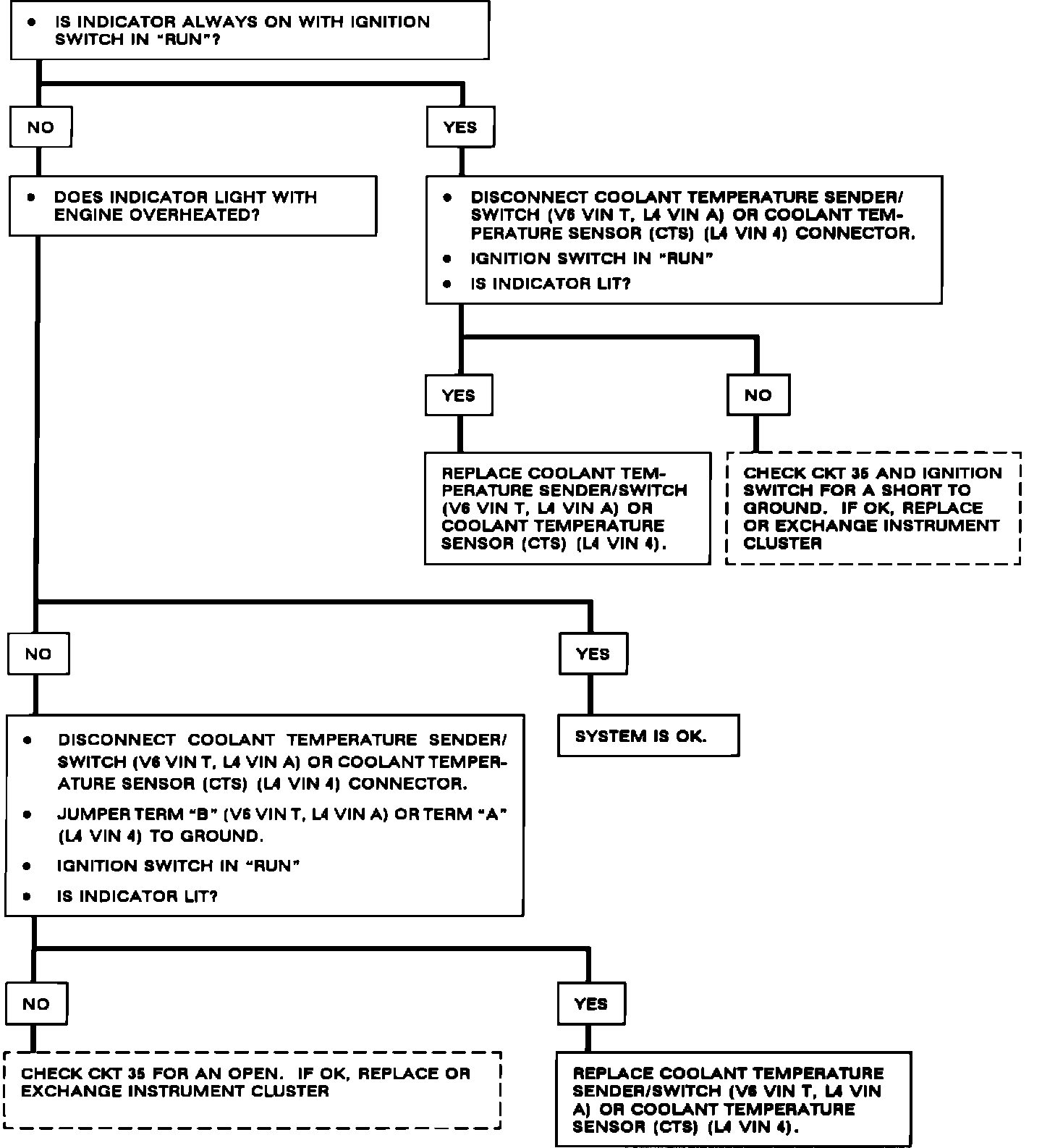

Chart #6 - Coolant Temperature Indicator Does Not Operate Properly:
