Radiator: Description and Operation

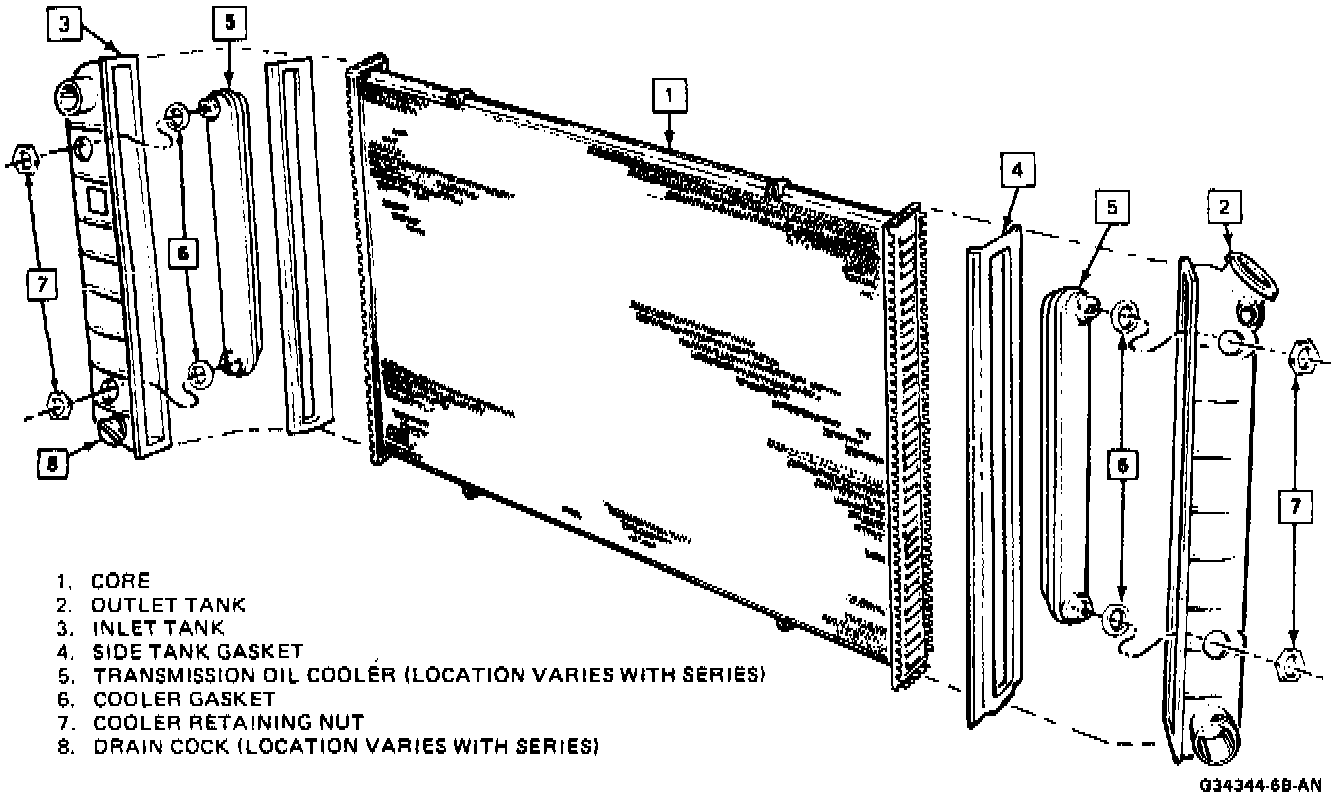

Aluminum Radiator:

This radiator utilizes an aluminum core with plastic side tank. The core and side tanks can be replaced separately and core repair is easily made with the hot melt adhesive method. A transaxle oil cooler may be located in one of the side tanks. The drain cock is located on the lower part of one of the tanks.
