Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Control Assembly, HVAC

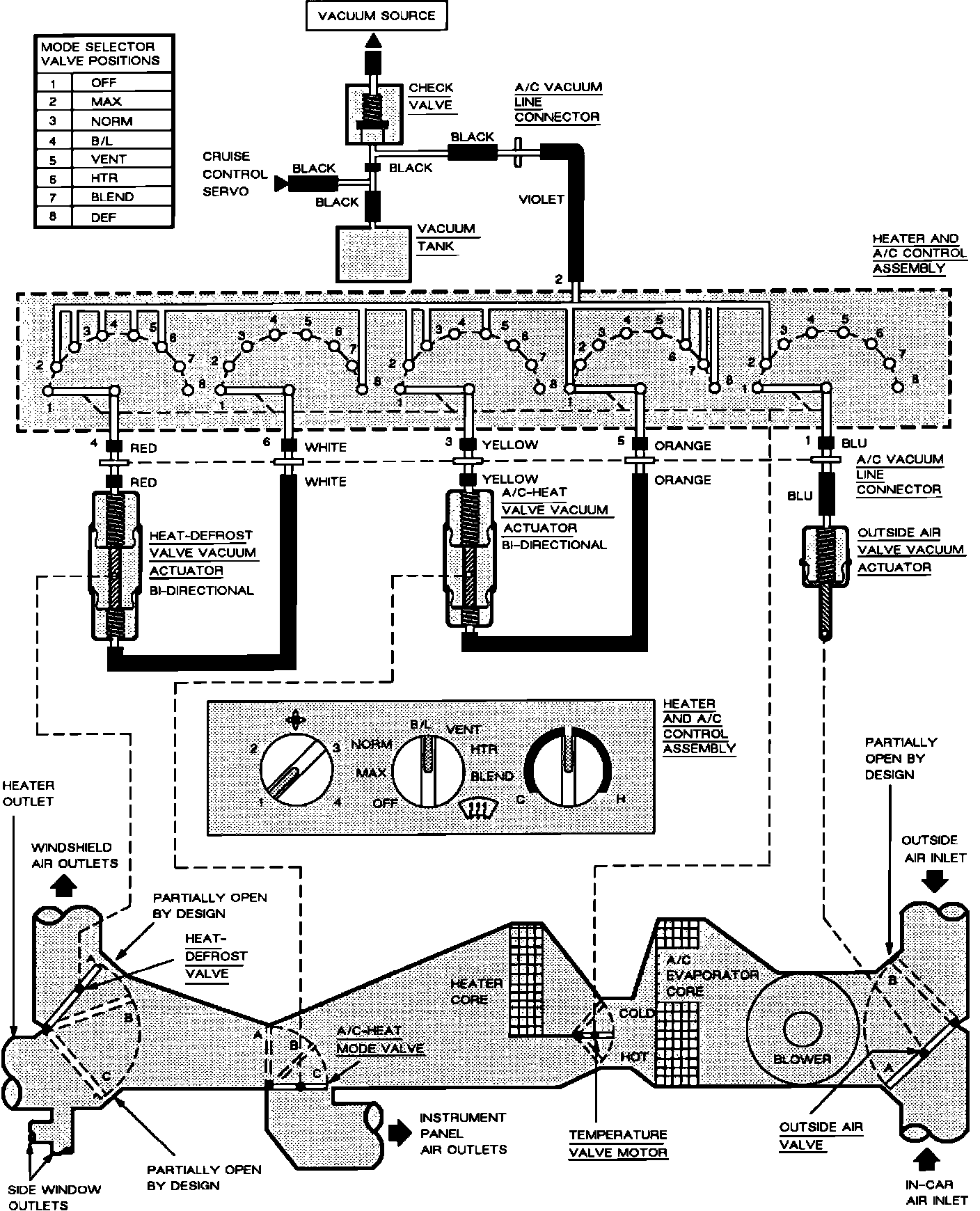

Control Assembly, HVAC

HVAC: Air Delivery:
