Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Harness

Harness

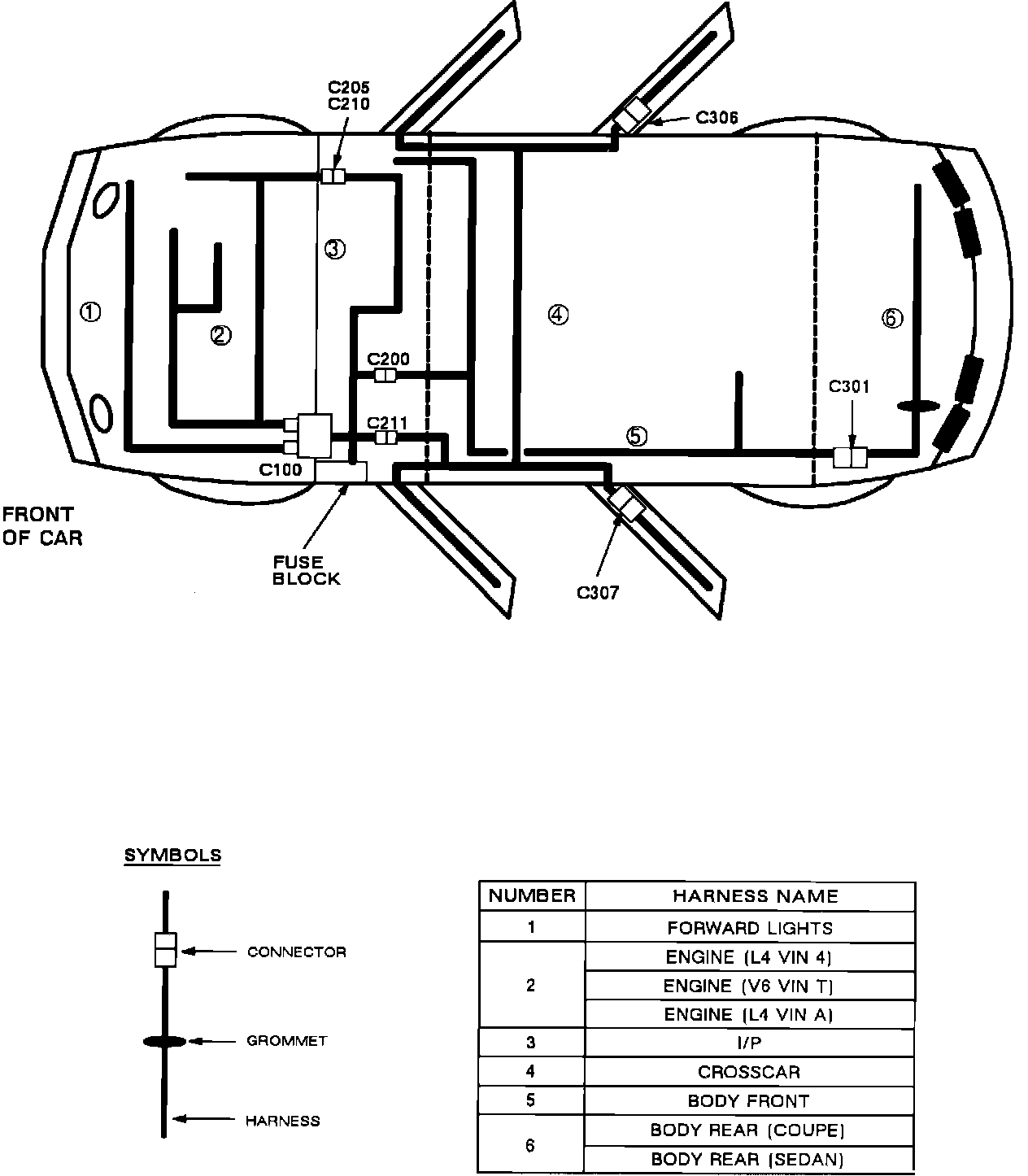

Harness Routing Views:
