Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuel Control In-Line Fuse and Fuse 14

Fuel Control In-Line Fuse and Fuse 14

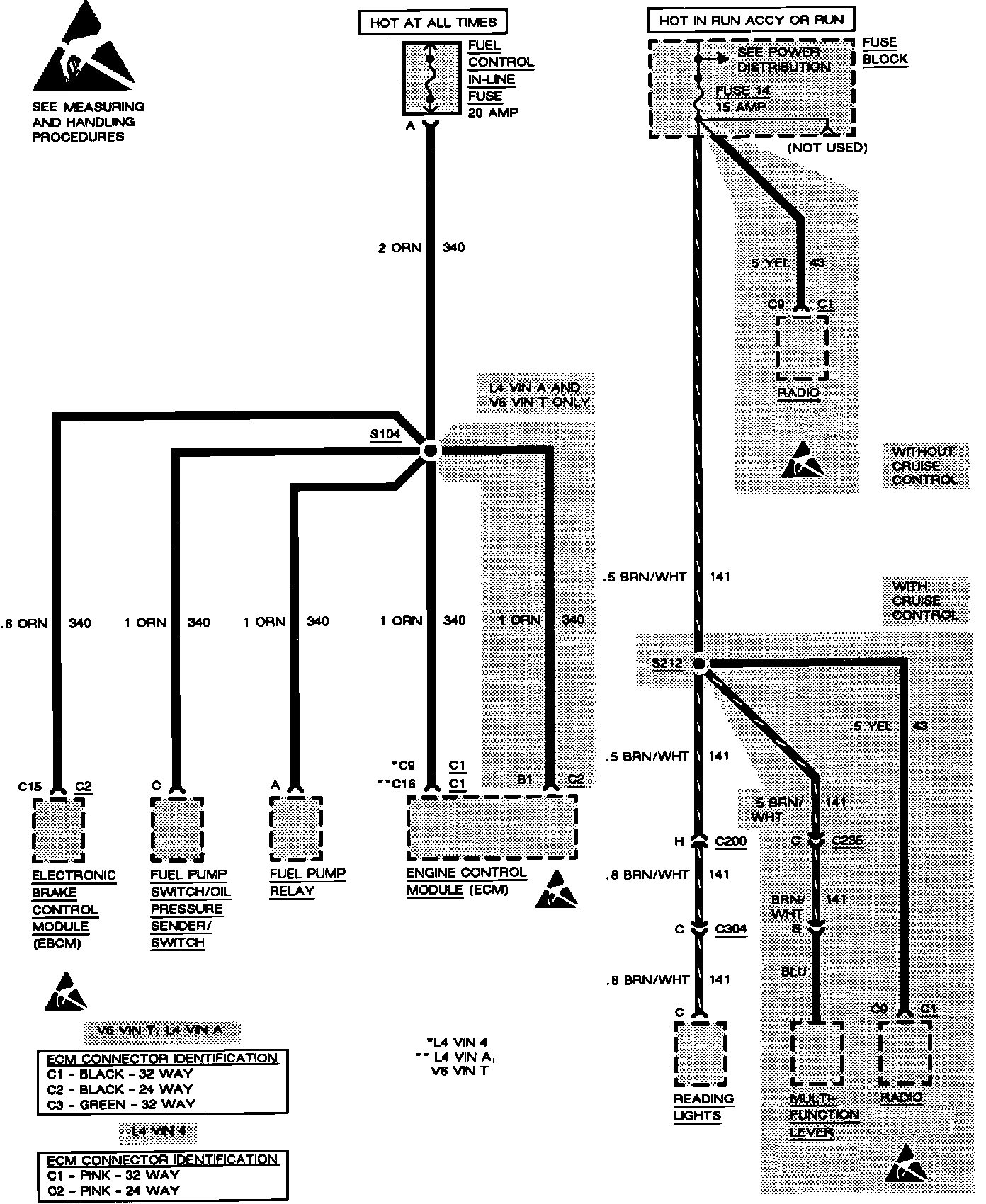

Fuse Block Details: Fuel Control In-Line Fuse And Fuse 14:
