Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Trunk Lamp >> 4 Door

4 Door

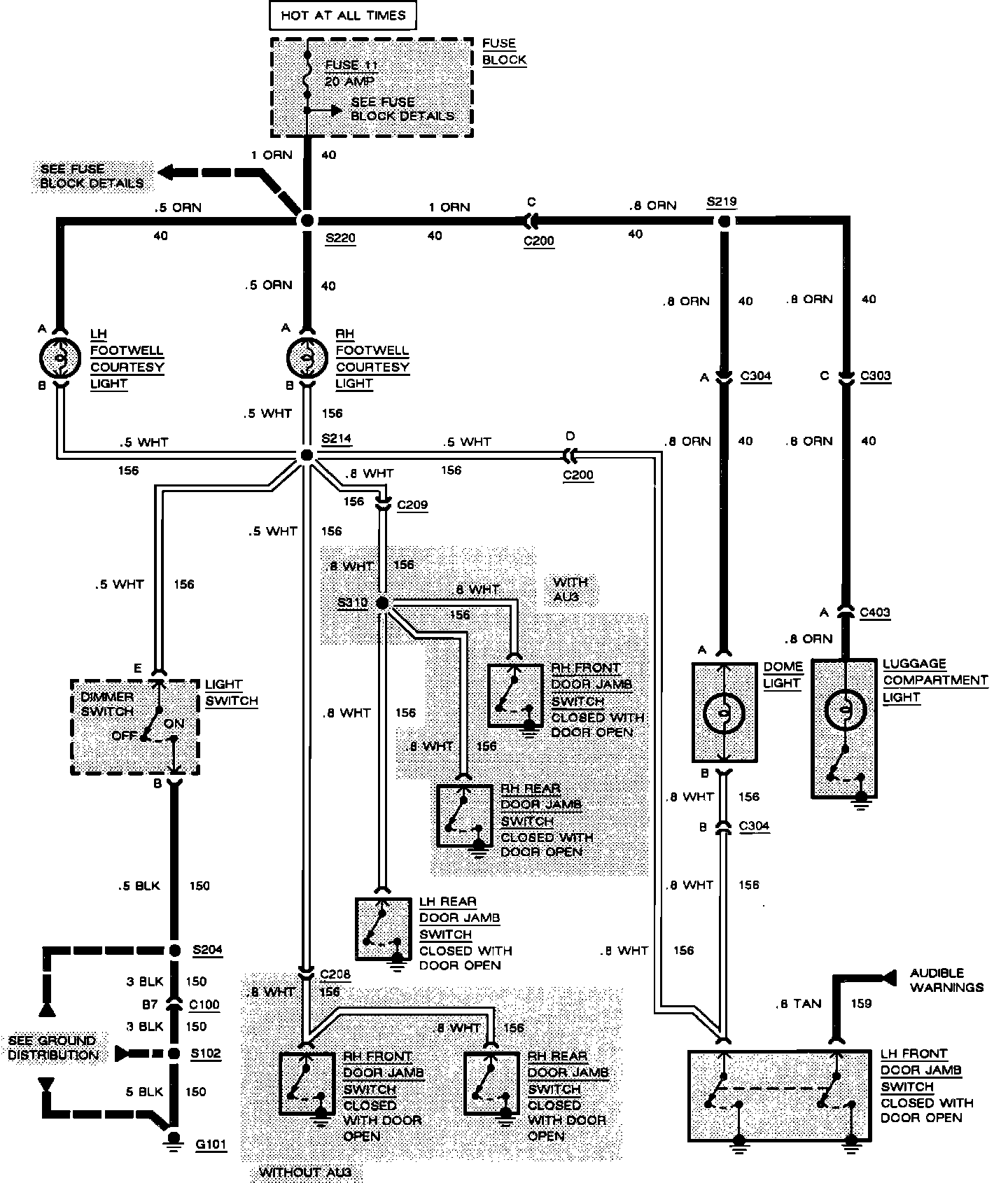

Interior Lights: Footwell Courtesy/Dome/Luggage Compartment (4 Door):
