Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> System Diagram >> With Daytime Running Lamps (DRL)

With Daytime Running Lamps (DRL)

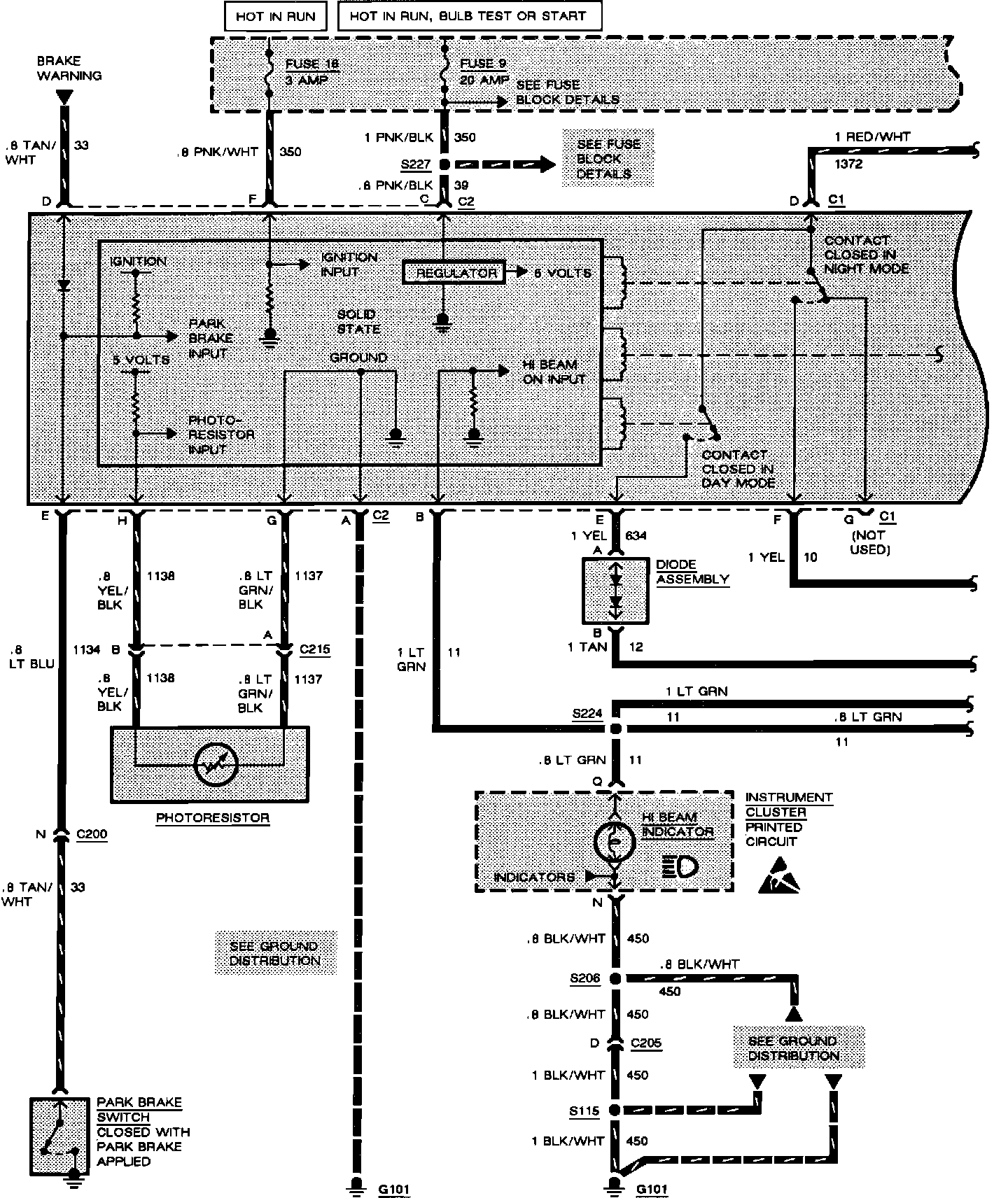

Headlights With Daytime Running Lights:

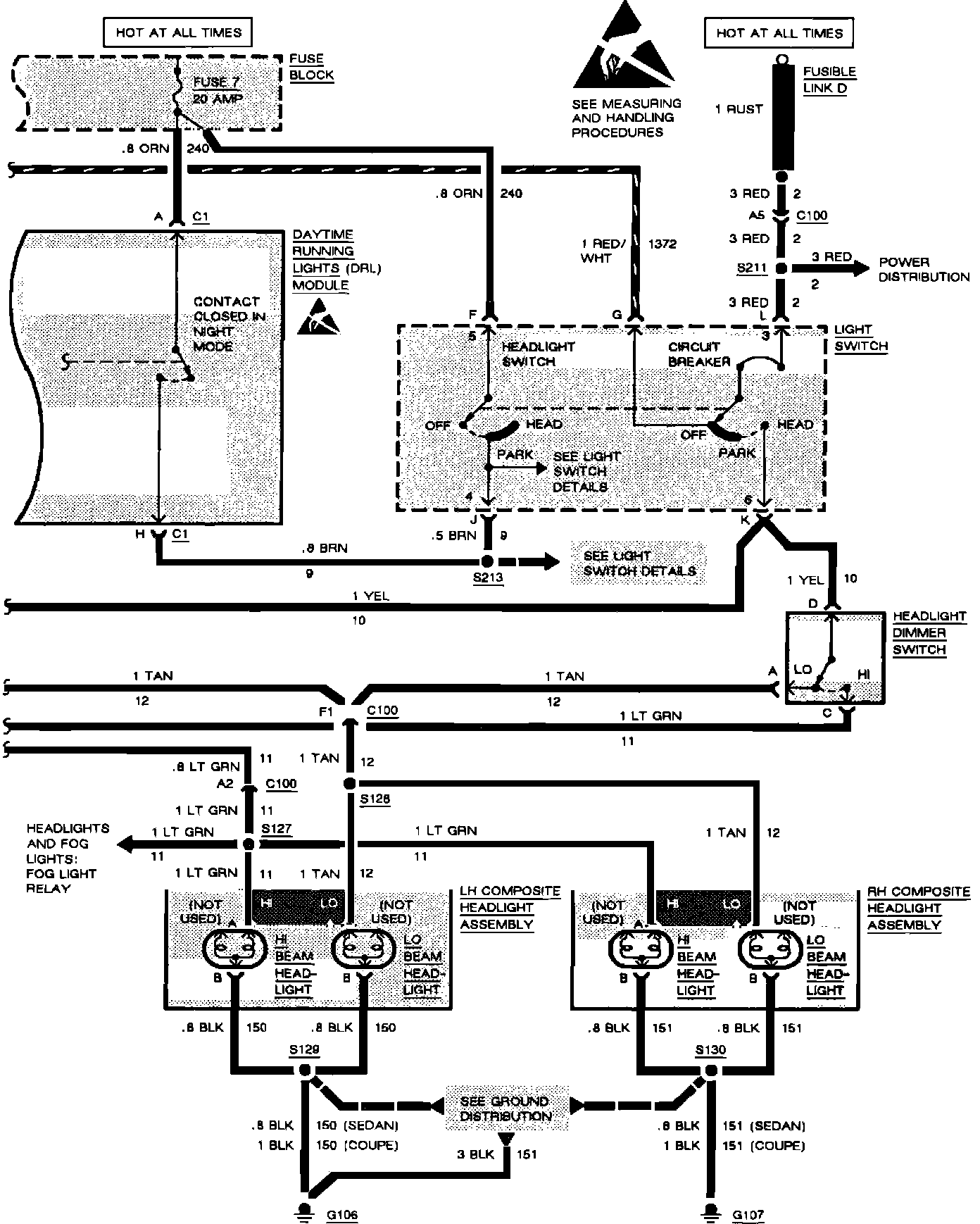

Headlights With Daytime Running Lights:
