LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1992
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>

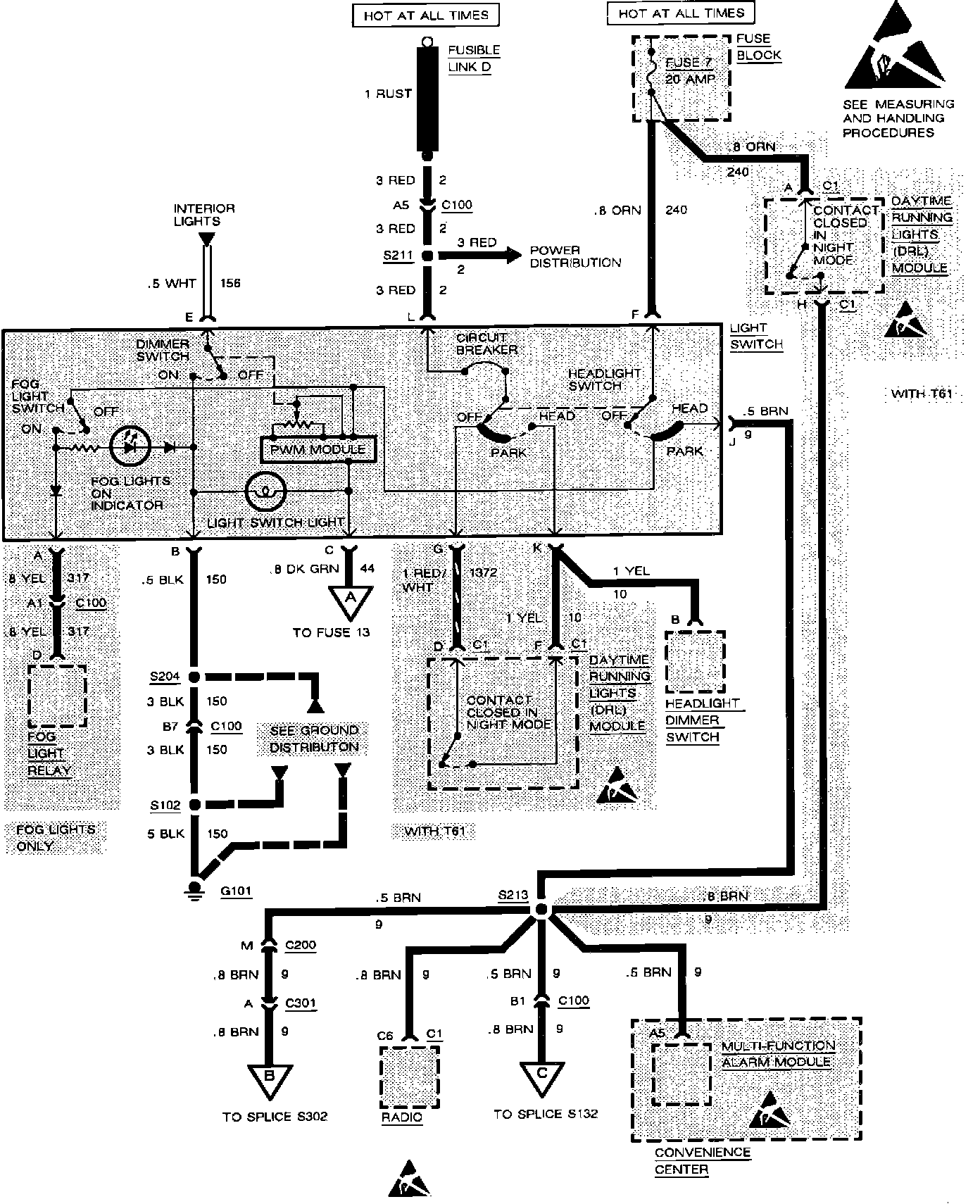

Headlamp Switch
>>
Sedan
Sedan

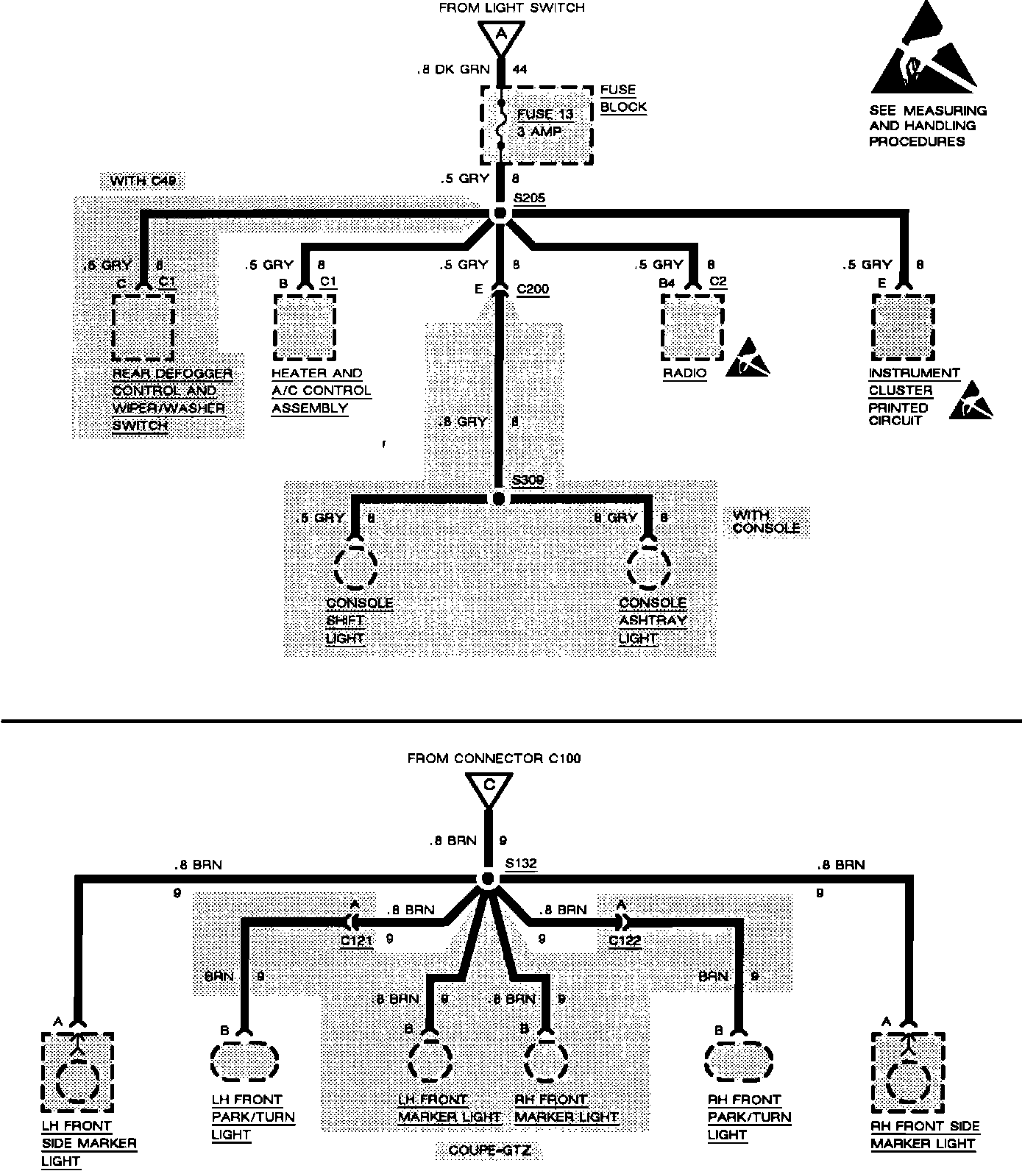

Light Switch Details:
Light Switch Details:
Light Switch Details:
