Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Motor >> With Air Conditioning

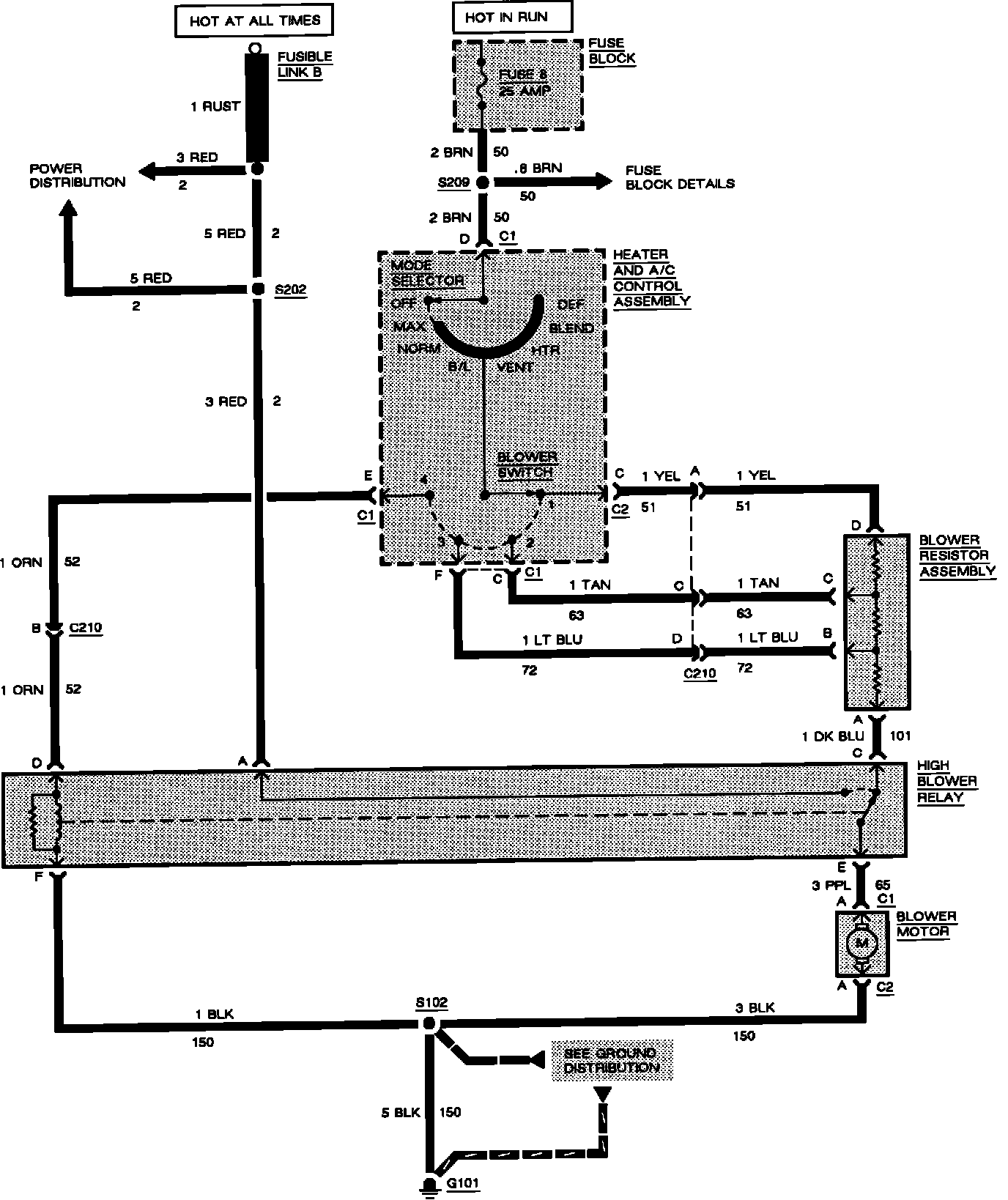

With Air Conditioning

HVAC: Blower Controls:
