Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Standby Power Supply, Air Bag

Standby Power Supply, Air Bag

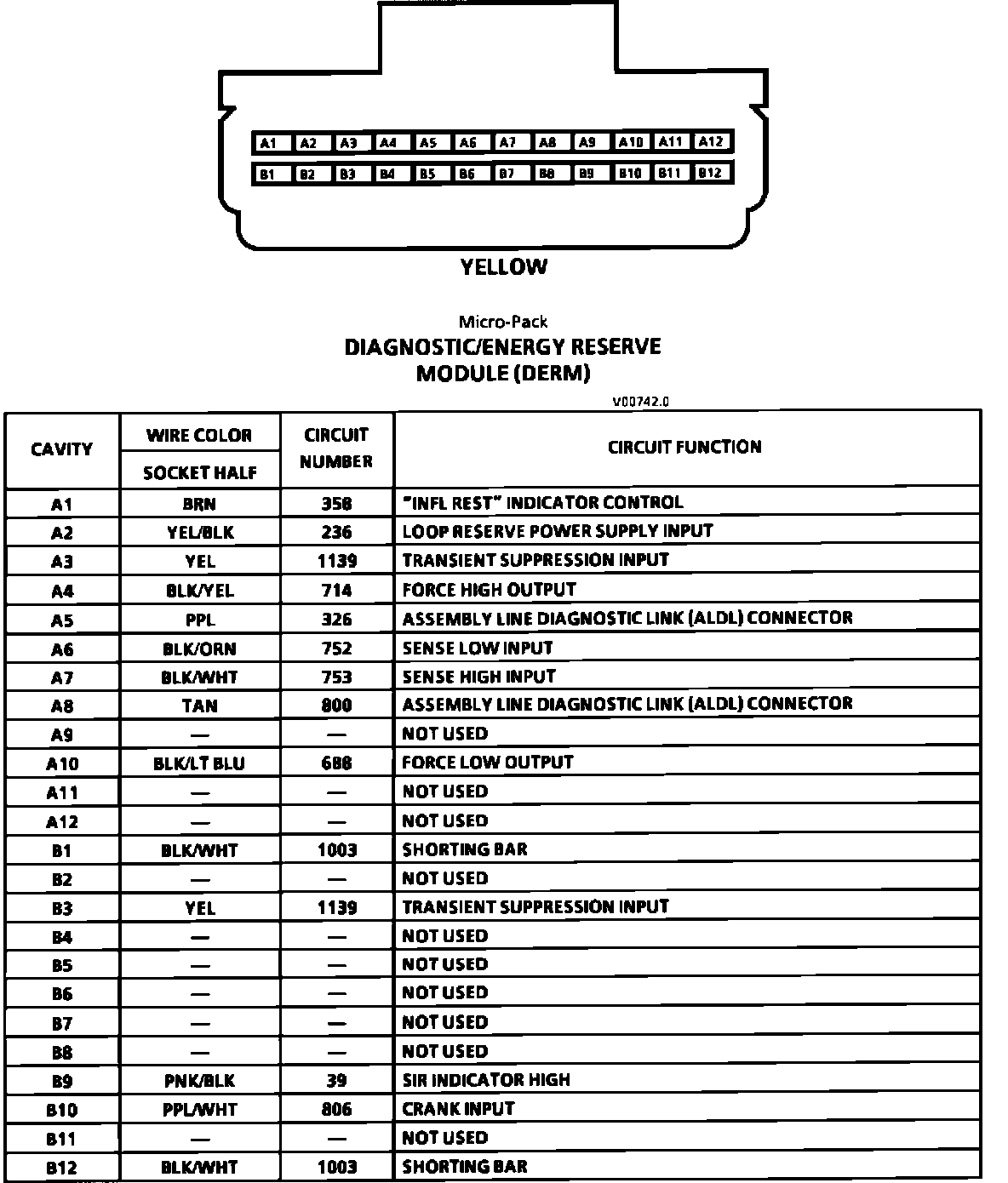

Diagnostic Energy Reserve Module (DERM):
