Troubleshooting

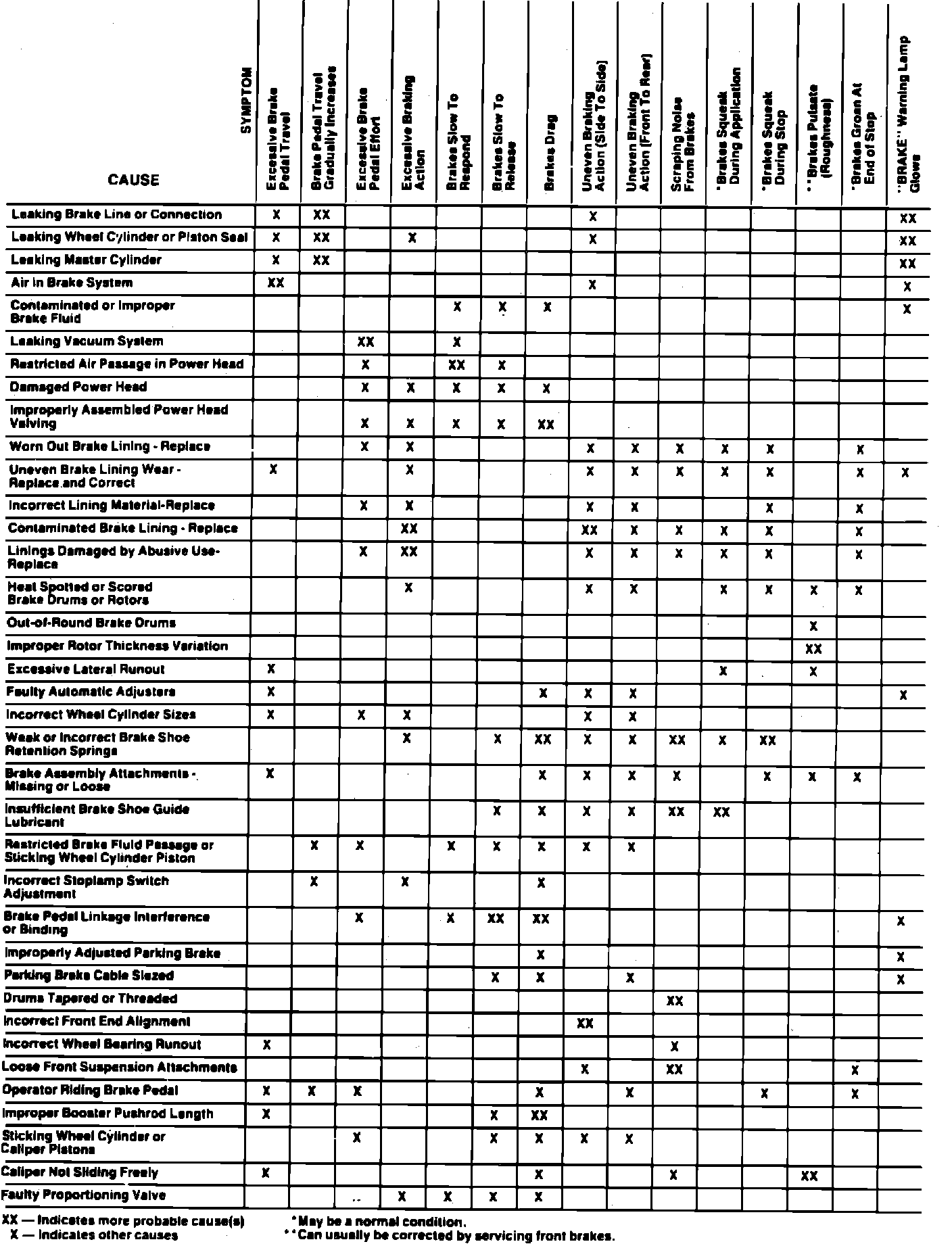

Fig. 1 Troubleshooting Brake System Chart:





When troubleshooting brake system, refer to Fig. 1.
