Brake Master Cylinder: Description and Operation

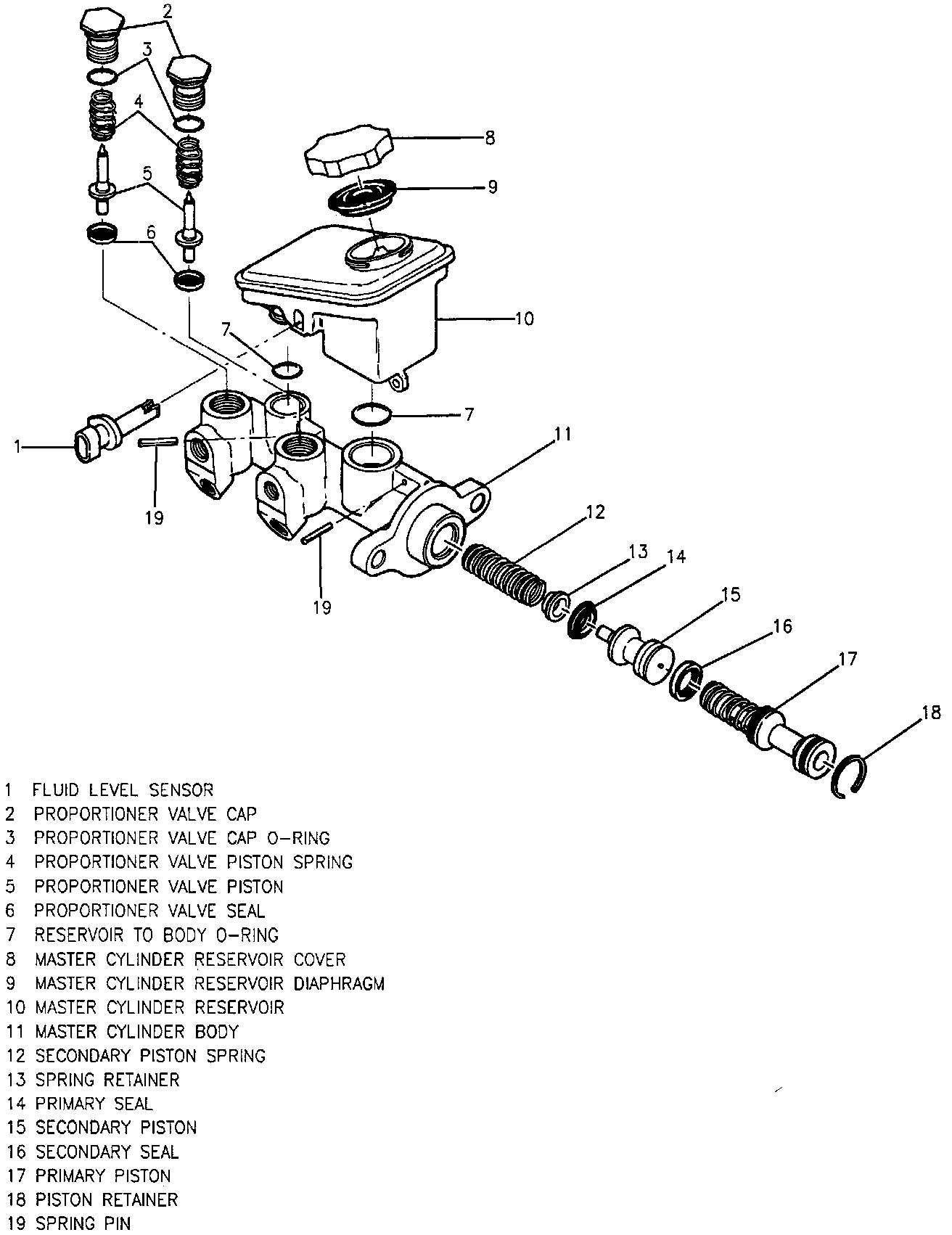

Compact Master Cylinder:

DESCRIPTION
This master cylinder is a composite design for use in a diagonally split hydraulic system. It incorporates the functions of the standard dual master cylinder plus it has a fluid level sensor switch and integral proportioners.
