Diagnostic Circuit Check

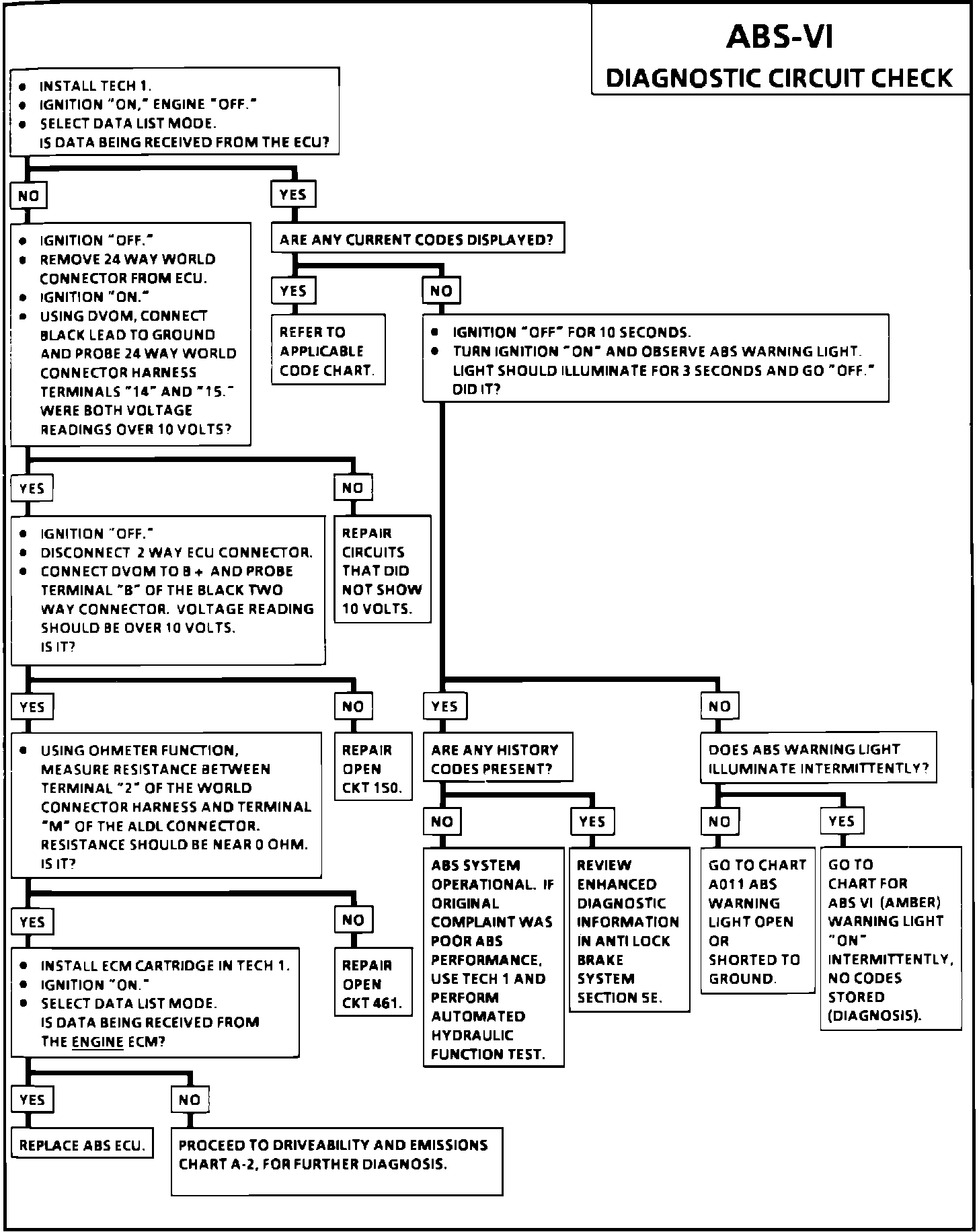

Fig. 7 Diagnostic Circuit Check. (Part 1 Of 2):



Fig. 7 Diagnostic Circuit Check. (Part 2 Of 2):
