Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Doors
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

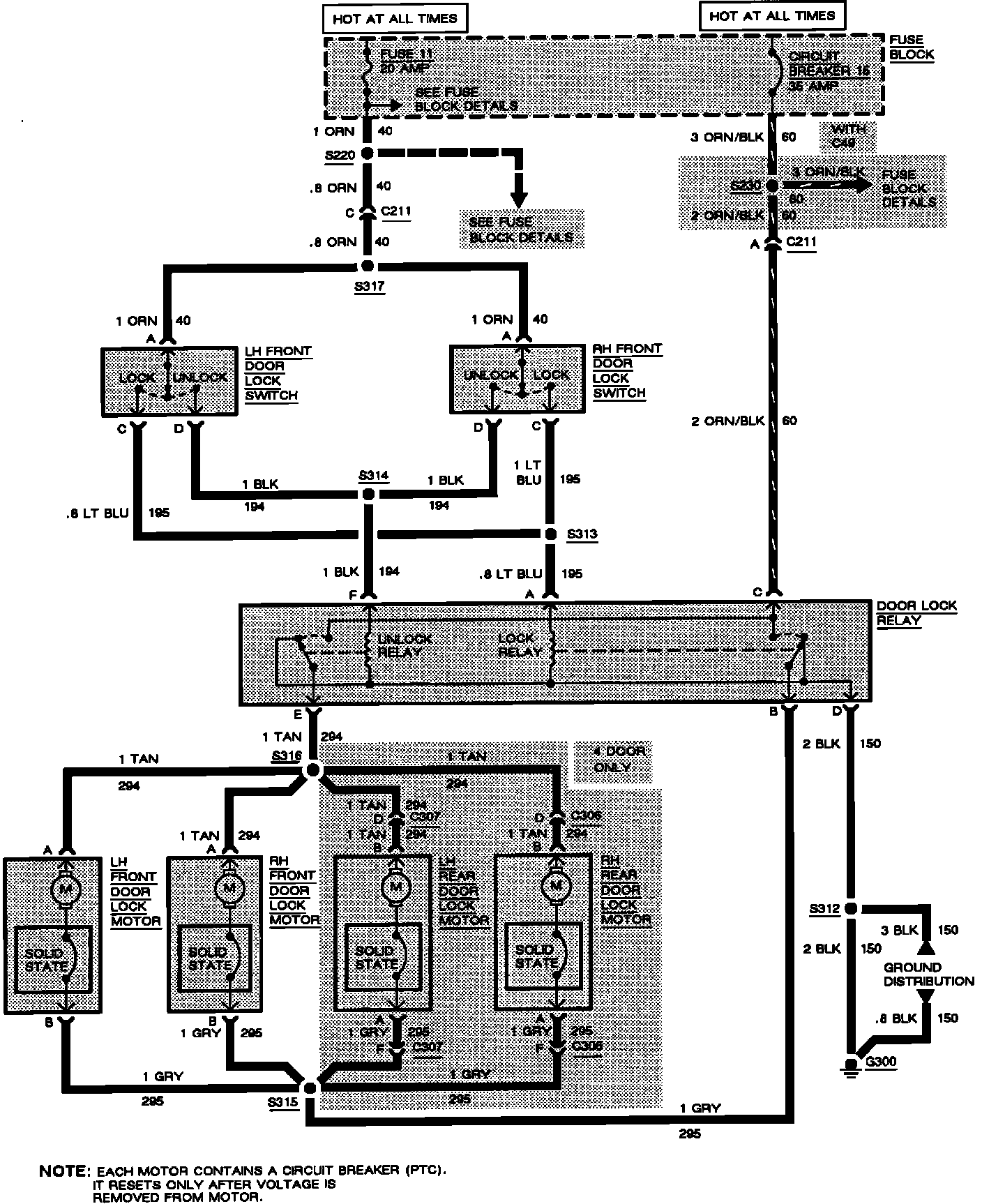

Power Door Locks:
