Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 71

DTC 71

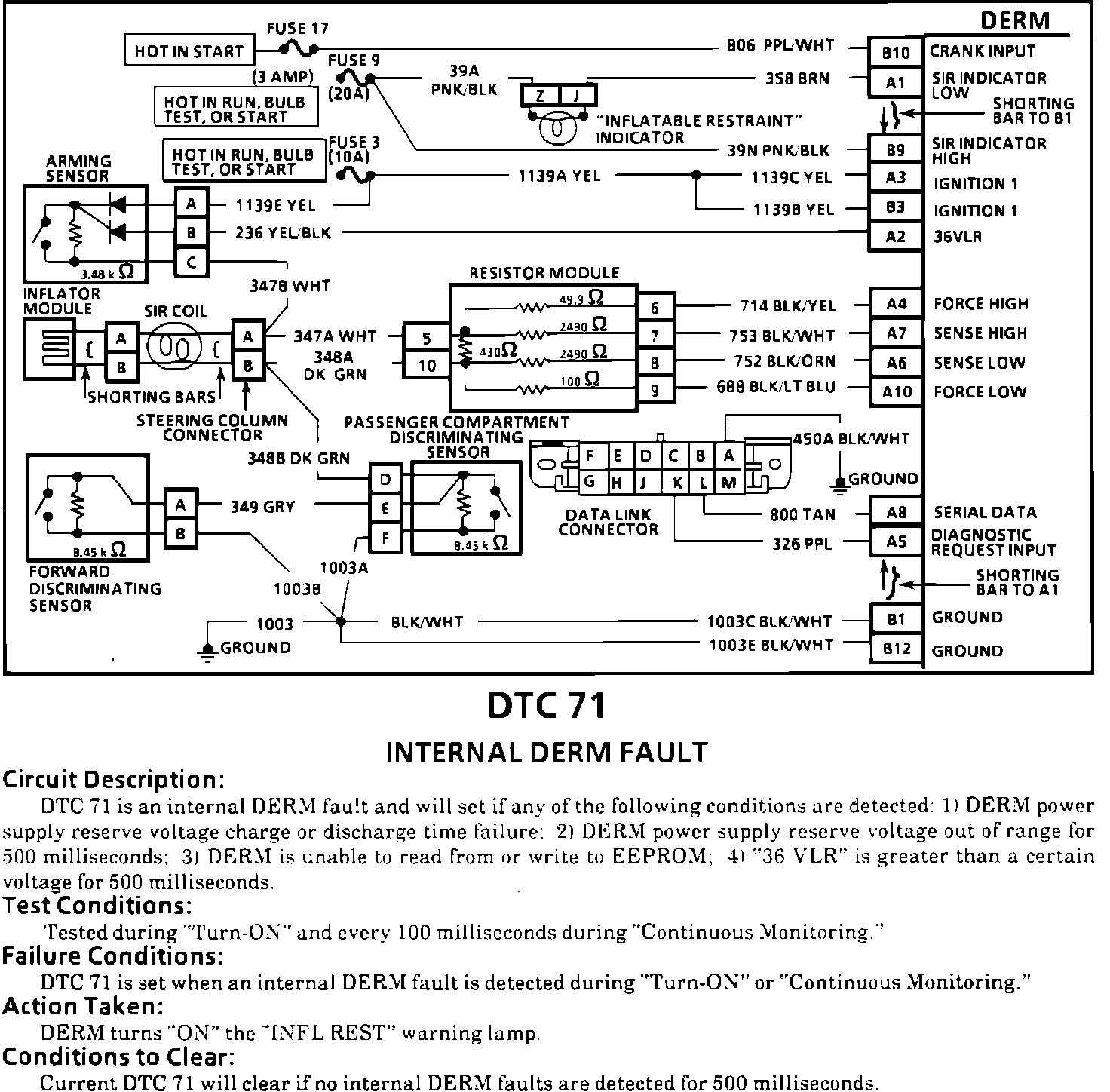

Fig. 101 Code 71, Internal DERM Fault (Part 1 of 2):



Fig. 101 Code 71, Internal DERM Fault (Part 2 of 2):
