Supplemental Inflatable Restraint (SIR)

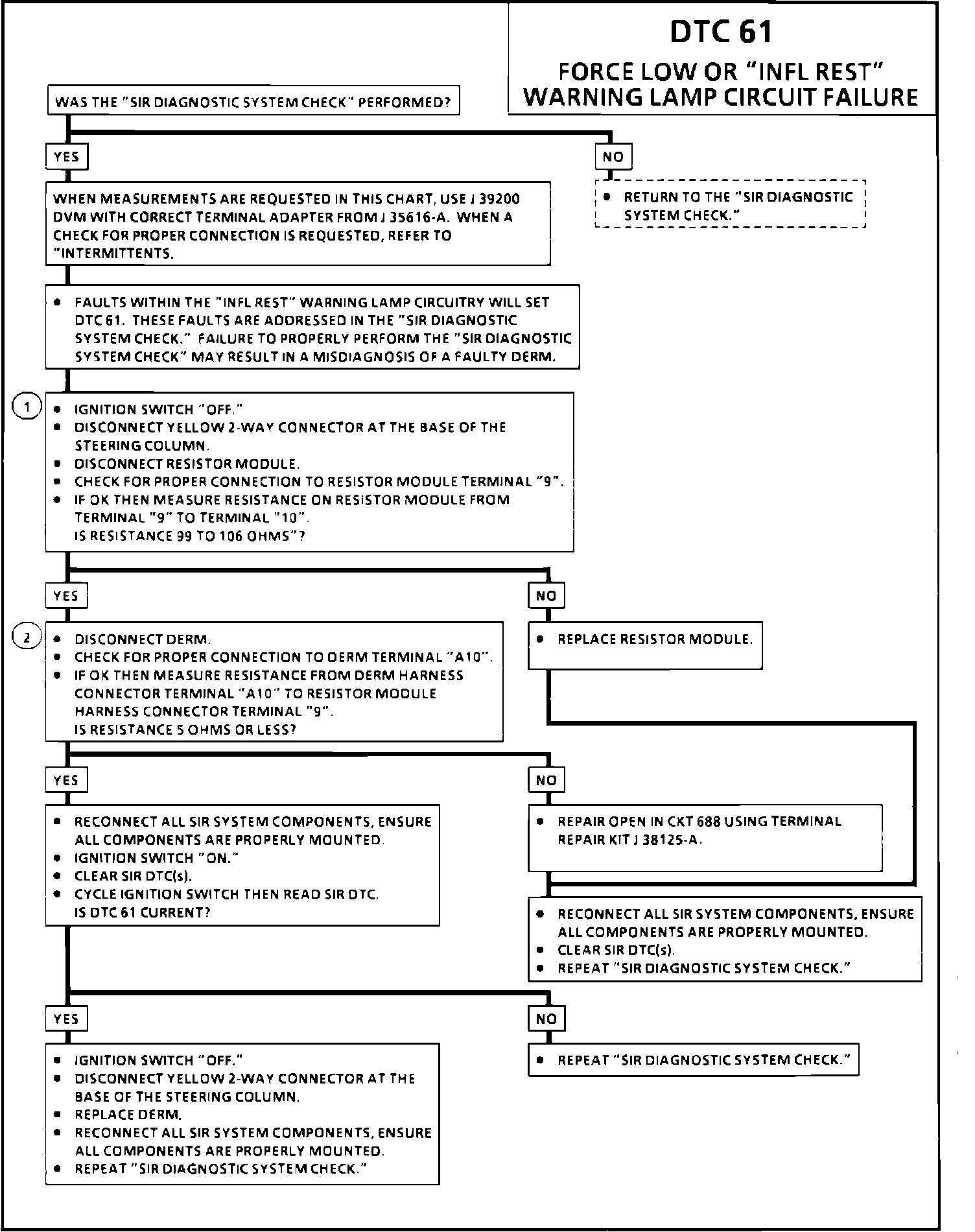

Fig. 100 Code 61, Force Low Or INFL REST Warning Lamp Circuit Failure (Part 1 of 2):

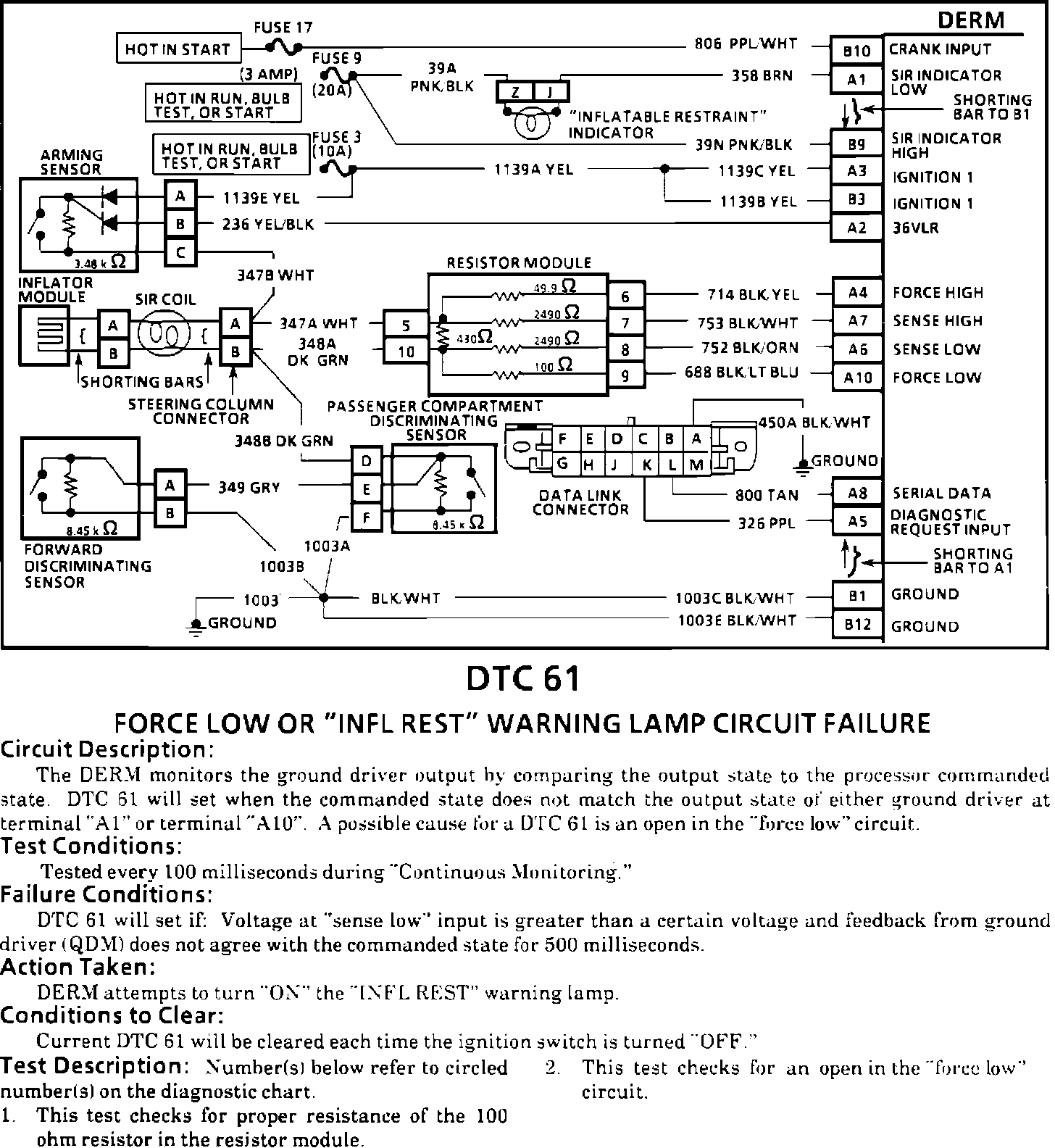

Fig. 100 Code 61, Force Low Or INFL REST Warning Lamp Circuit Failure (Part 2 of 2):
