Supplemental Inflatable Restraint (SIR)

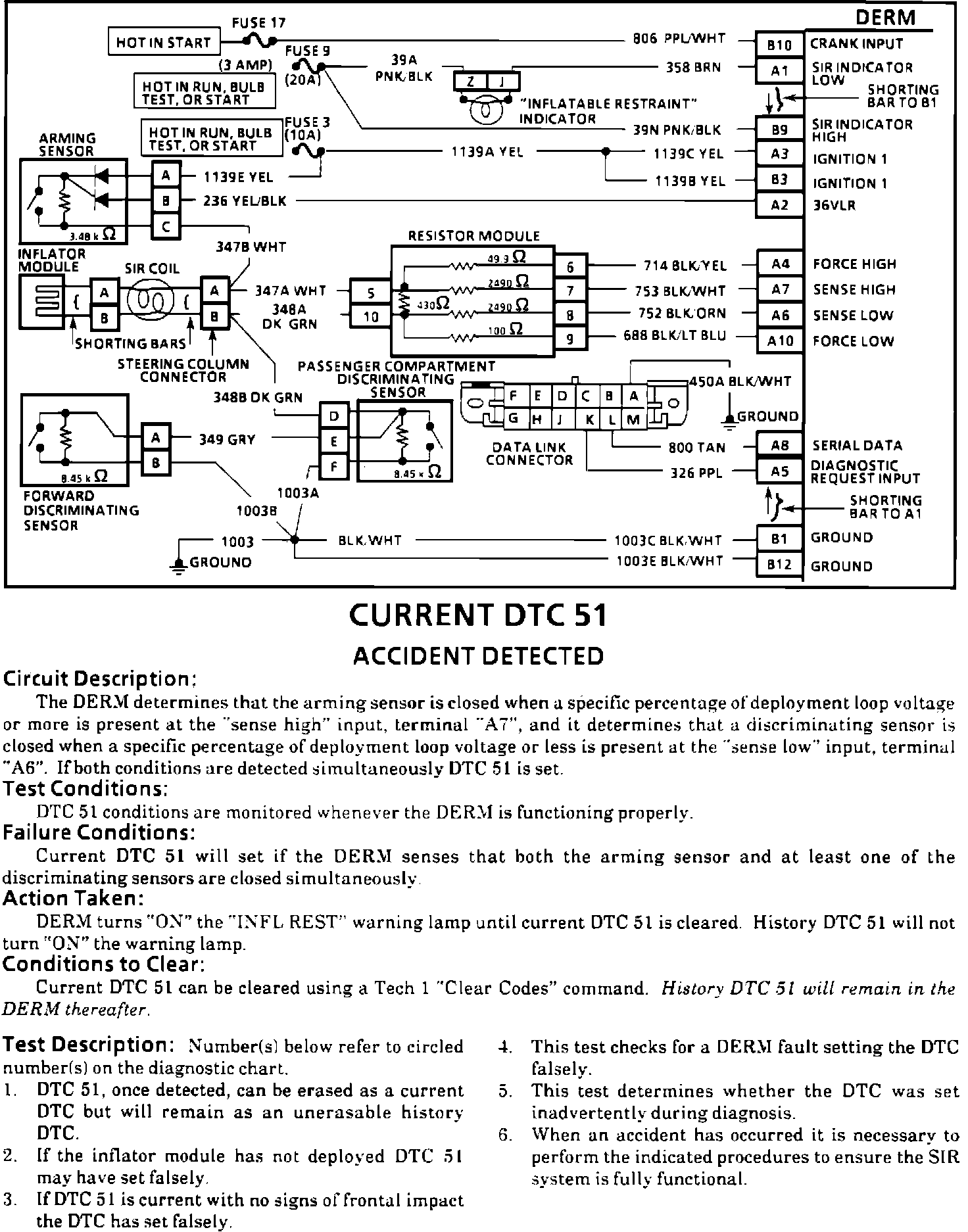

Fig. 98 Current Code 51, Accident Detected (Part 1 of 2):

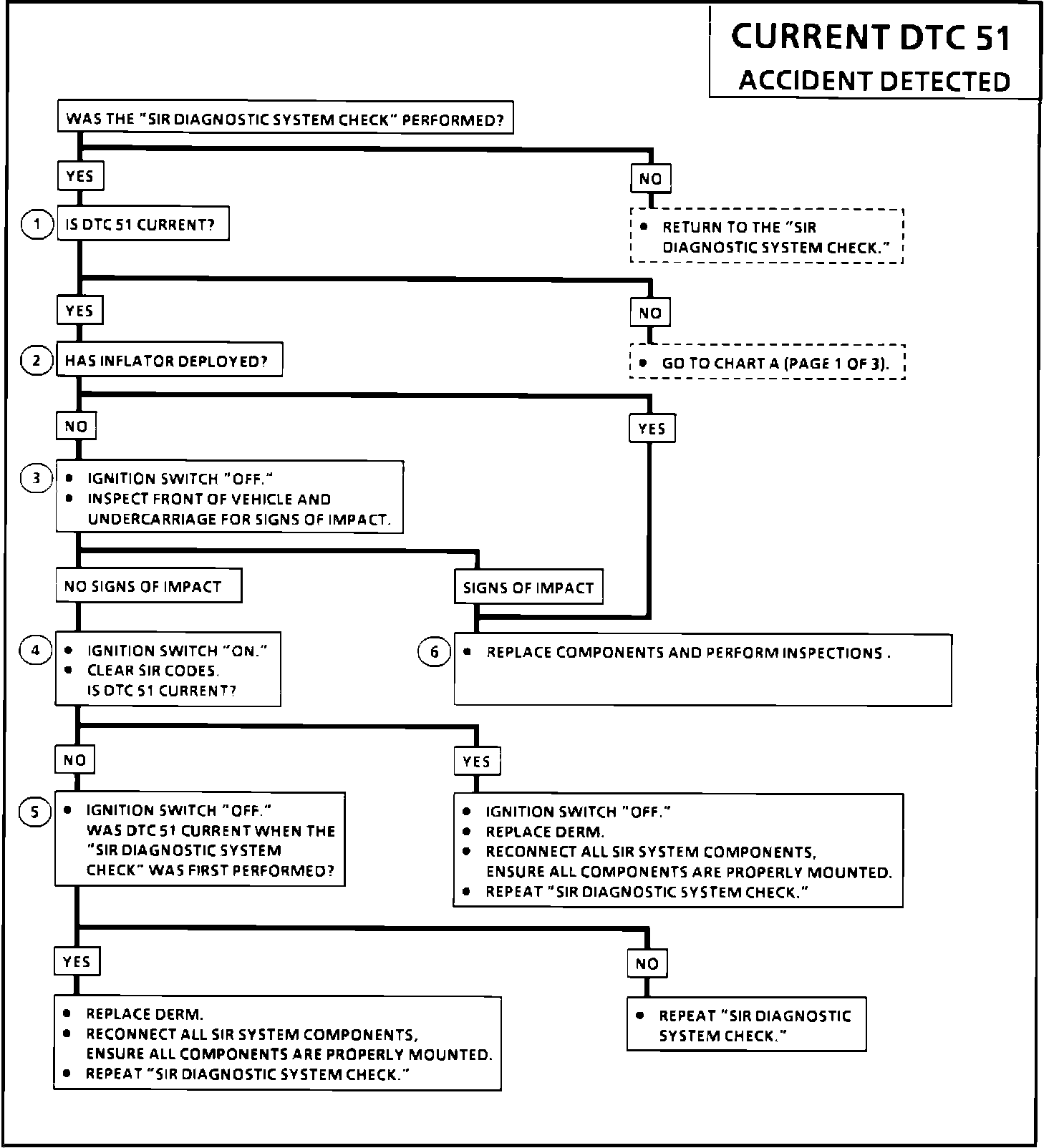

Fig. 98 Current Code 51, Accident Detected (Part 2 of 2):
